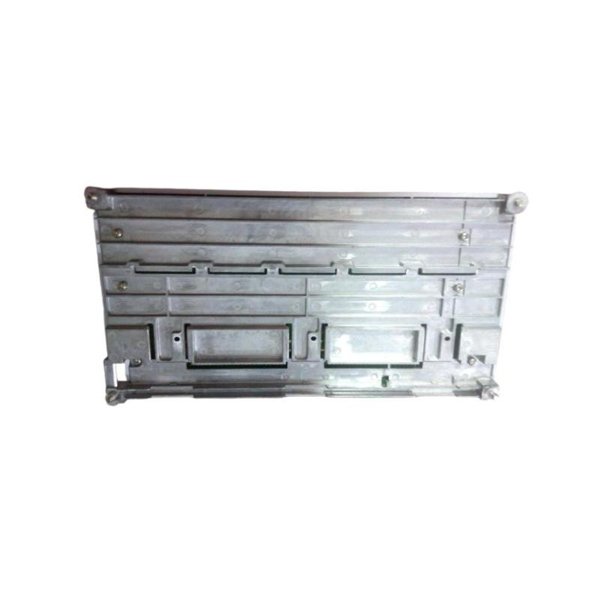

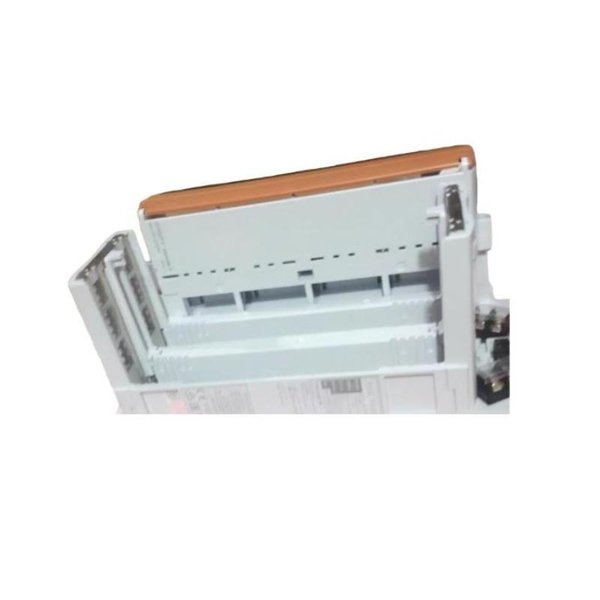

Yokogawa S2BN1D-11130 Terminal Block Baseplate with Disconnect Terminals

The Yokogawa S2BN1D-11130 is a high-quality baseplate designed to support field wiring for various control systems. It features disconnect terminals that allow for easy wiring connections and disconnections without affecting the integrity of the system. This baseplate is a critical component for integrating different devices within Yokogawa’s automation platforms, facilitating seamless control system design and maintenance.

Designed with precision and durability, the S2BN1D-11130 is widely used in industrial environments for connecting field devices, offering enhanced ease of use and system reliability. The compact design with its dimensions of 248 x 134 x 212.7 mm and weight of 1.4 kg ensures easy installation and integration into control panels, providing a solid foundation for secure wiring connections.

Product Specifications

Product Applications

The S2BN1D-11130 terminal block baseplate is used extensively in various industries for wiring and electrical connections. Its applications include:

• Industrial Automation: Serves as a connection hub for control systems and field devices in automation setups.

• Control Panel Construction: Integral part of control panels, ensuring secure and reliable connections for industrial controls.

• Process Control Systems: Used in process control systems where easy disconnection and reconnection of wiring are necessary for maintenance.

• Building Management Systems: Facilitates field wiring for HVAC and lighting control systems in building management setups.

• Power Distribution Systems: Provides a secure interface for wiring connections in power distribution systems, ensuring safe operations.

• Energy Management: Helps with wiring for energy meters and control systems in energy management solutions.

Product Advantages

1. Easy Wiring Disconnection: The disconnect terminals allow for easy and safe disconnection of wiring during maintenance, minimizing system downtime.

2. Durable Construction: Built with high-quality materials, ensuring longevity and reliable performance in industrial environments.

3. Space-Efficient Design: The 248 x 134 x 212.7 mm footprint allows for efficient use of space within control panels, maximizing panel capacity.

4. Wide Temperature Range: Operates efficiently across a broad temperature range of -20°C to +60°C, suitable for diverse environments.

5. High Current Rating: Rated for 10 A, making it suitable for a variety of industrial applications requiring moderate current handling.

6. Reliable Insulation Resistance: Provides >100 MΩ at 500 V DC insulation resistance, ensuring secure connections and preventing electrical faults.

7. Universal Compatibility: Compatible with DIN rail mounting systems, allowing for versatile integration into various installations.

8. Robust Termination Type: Screw-type terminals provide a secure and robust connection for wire terminations, reducing the chance of loose connections.

FAQ

1. What is the purpose of the disconnect terminals on the S2BN1D-11130?

The disconnect terminals enable easy and safe disconnection of wiring without affecting the integrity of the system, ideal for maintenance or troubleshooting.

2. What is the maximum current rating of the S2BN1D-11130?

It is rated for a maximum current of 10 A.

3. Can the S2BN1D-11130 be used in high-temperature environments?

Yes, the baseplate can operate in temperatures ranging from -20°C to +60°C, making it suitable for most industrial environments.

4. How is the S2BN1D-11130 mounted?

The baseplate is designed for DIN rail mounting, which allows for easy installation and secure placement in control panels.

5. What materials are used in the construction of the S2BN1D-11130?

It is built from high-quality, durable industrial-grade materials to ensure long-term reliability and performance.

6. What is the insulation resistance of the S2BN1D-11130?

The insulation resistance is >100 MΩ at 500 V DC, ensuring that the terminals provide secure and reliable electrical isolation.

7. What types of wiring connections are supported by the S2BN1D-11130?

It supports screw-type terminal connections, providing a robust and secure method for connecting field wires.

8. What is the rated voltage of the S2BN1D-11130?

The S2BN1D-11130 is rated for 250 V AC/DC voltage, ensuring compatibility with a wide range of control systems.

9. Can the S2BN1D-11130 be used for both AC and DC applications?

Yes, it is rated for both AC and DC voltage, making it versatile for different industrial applications.

10. Is the S2BN1D-11130 compatible with all control panels?

Yes, its DIN rail compatibility ensures that it can be easily integrated into most industrial control panels and systems.
