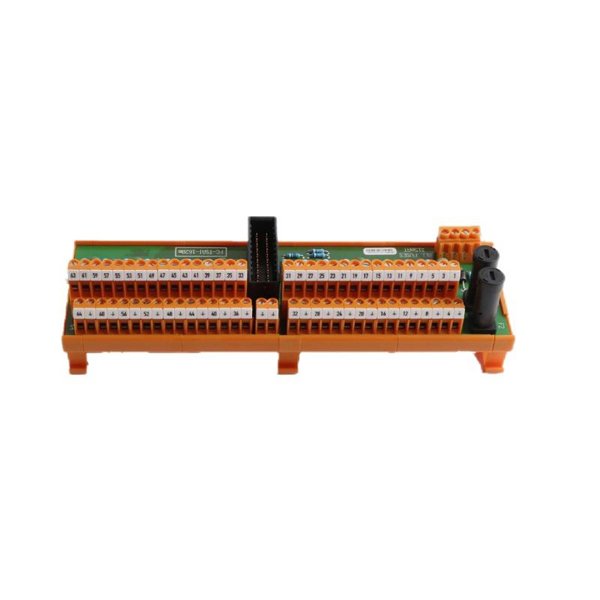

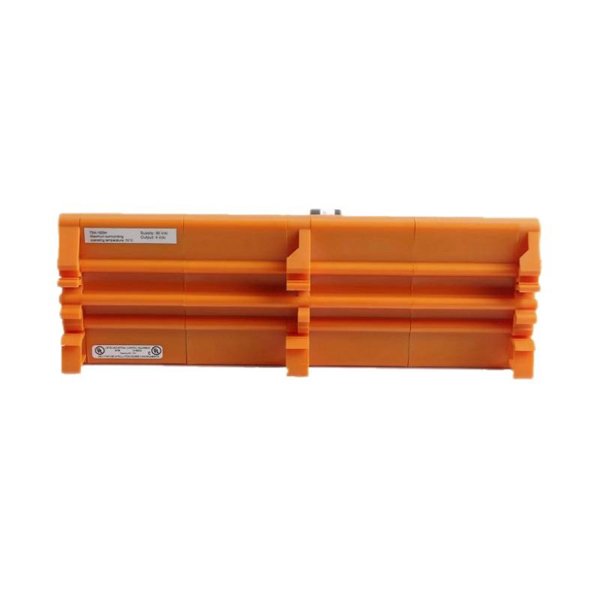

Honeywell FC-TSAI-0410 Safe Analog Input Module

The Honeywell FC-TSAI-0410 is a compact, reliable, and high-integrity safe analog input module designed specifically for use in safety-critical industrial control systems. This module supports precise acquisition of analog signals and ensures high safety standards compliant with international functional safety requirements.

Manufactured with robust design principles, the FC-TSAI-0410 integrates seamlessly within Honeywell’s safety control systems, providing dependable signal monitoring and transmission in demanding environments such as chemical plants, oil and gas facilities, and power generation plants.

The module is optimized to ensure the integrity of process data, thereby enhancing safety system performance while minimizing the risk of failure or inaccurate readings.

Technical Specifications

Applications

The Honeywell FC-TSAI-0410 module is designed to serve in environments where safety and precise analog data acquisition are critical, including but not limited to:

• Oil and Gas Industry: Monitoring pressure, temperature, and flow in hazardous zones to maintain safe operations.

• Chemical Manufacturing: Ensuring safe process control by accurately capturing critical analog signals.

• Power Generation: Continuous monitoring of turbine parameters and other essential process variables.

• Pharmaceutical Industry: Managing environmental parameters to comply with safety and quality standards.

• Water and Wastewater Treatment: Monitoring levels, pH, and flow rates with reliable analog inputs.

• Industrial Automation: Integrating into complex safety systems for accurate and safe data acquisition.

Advantages

• High Safety Integrity: Designed and certified to meet SIL 3 standards for functional safety, providing confidence in safety-critical applications.

• Compact Design: Small footprint (60 × 70 × 58 mm) makes it ideal for installations with limited space.

• Robust Signal Isolation: Channel-to-channel and channel-to-system isolation minimizes noise and interference, ensuring signal fidelity.

• High Accuracy: ±0.1% full-scale accuracy guarantees precise analog signal measurements.

• Versatile Mounting: Supports DIN rail and panel mounting to fit diverse installation requirements.

• Wide Operating Range: Operates reliably in harsh environmental conditions with broad temperature and humidity tolerance.

• Seamless Integration: Easily integrates with Honeywell’s safety management systems, enhancing overall system reliability.

Frequently Asked Questions (FAQ)

Q1: What is the input signal range of the FC-TSAI-0410?

A1: It supports standard 0–20 mA and 4–20 mA analog current signals.

Q2: How many channels does the module have?

A2: The module has 4 analog input channels.

Q3: Is the module suitable for SIL 3 applications?

A3: Yes, it is certified to meet SIL 3 safety requirements.

Q4: What are the physical dimensions of the module?

A4: The module measures 60 × 70 × 58 mm (Width × Height × Depth).

Q5: Can it be mounted on a DIN rail?

A5: Yes, it supports DIN rail and panel mounting.

Q6: What is the weight of the module?

A6: The module weighs approximately 0.5 kg.

Q7: What is the operating temperature range?

A7: It operates from -20°C to +60°C.

Q8: Does the module provide channel-to-channel isolation?

A8: Yes, it provides robust isolation between input channels and the system.

Q9: What safety certifications does the module hold?

A9: It is certified to SIL 3, CE, UL, and CSA standards.

Q10: Is the FC-TSAI-0410 compatible with Honeywell’s Safety Manager systems?

A10: Yes, it is designed for seamless integration with Honeywell’s safety control platforms.
