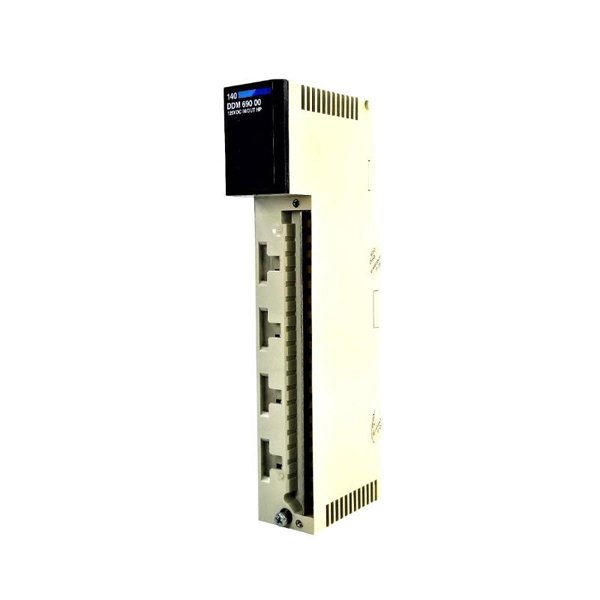

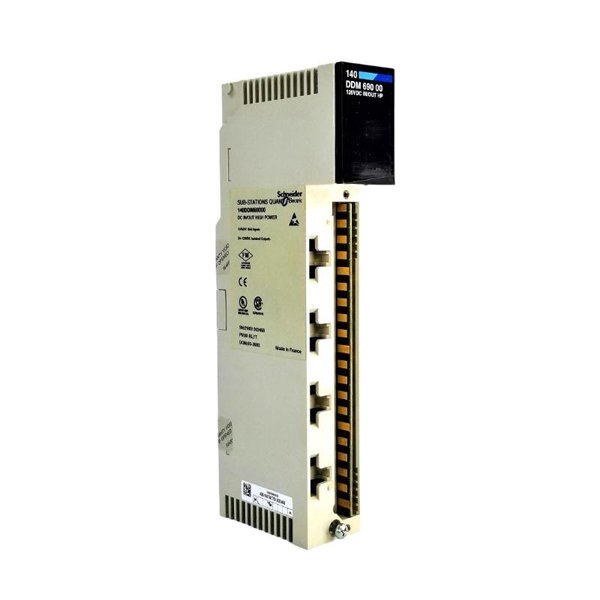

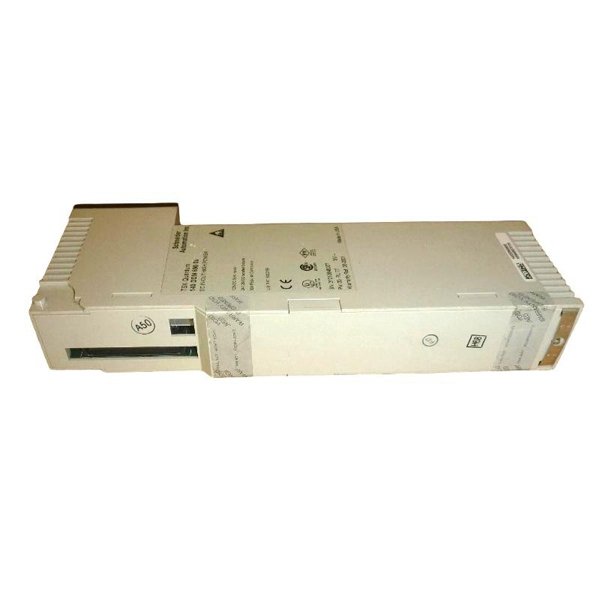

Schneider 140DDM69000C Discrete I/O Module

The Schneider 140DDM69000C is a high-performance discrete input and output module designed for use in Modicon Quantum automation systems. It provides 32 discrete channels (16 inputs and 16 outputs) for efficient control and monitoring in industrial automation environments. This module offers reliable operation, compact size, and ease of integration, making it suitable for a wide range of applications.

Technical Specifications

Applications

The 140DDM69000C module is widely used in:

• Industrial process control systems

• Manufacturing automation

• Material handling systems

• Building automation

• Power plant control

• Oil and gas production facilities

Advantages

• Supports both input and output in a single module

• Compact size saves panel space

• High reliability and proven performance

• Easy integration with Modicon Quantum systems

• Quick response for real-time control

• Reduced wiring complexity

FAQ

Q1: How many channels does the 140DDM69000C have?

A1: It provides 32 discrete channels (16 inputs and 16 outputs).

Q2: What voltage does this module operate on?

A2: It operates at 24 VDC for both inputs and outputs.

Q3: What is the maximum current per output channel?

A3: Each output channel can handle up to 0.5 A.

Q4: Can this module be used in high humidity environments?

A4: Yes, it supports up to 95% non-condensing humidity.

Q5: Is this module hot-swappable?

A5: Yes, it supports hot-swapping within Quantum systems.

Q6: What is the typical operating temperature range?

A6: From 0°C to 60°C.

Q7: Does it require a specific backplane slot?

A7: It mounts on a standard Quantum backplane slot.

Q8: How much does the module weigh?

A8: It weighs approximately 0.3 kg.

Q9: What are the module’s dimensions?

A9: The dimensions are 103.9 × 40.3 × 250 mm.

Q10: Is this module suitable for mission-critical systems?

A10: Yes, it is designed for reliable operation in demanding industrial environments.
