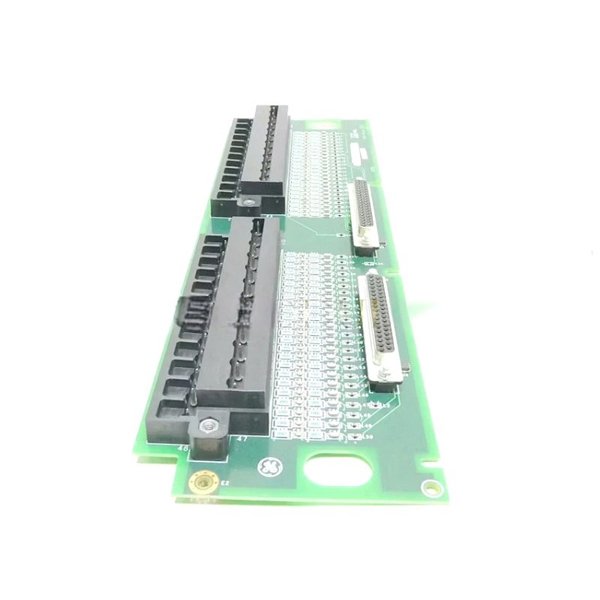

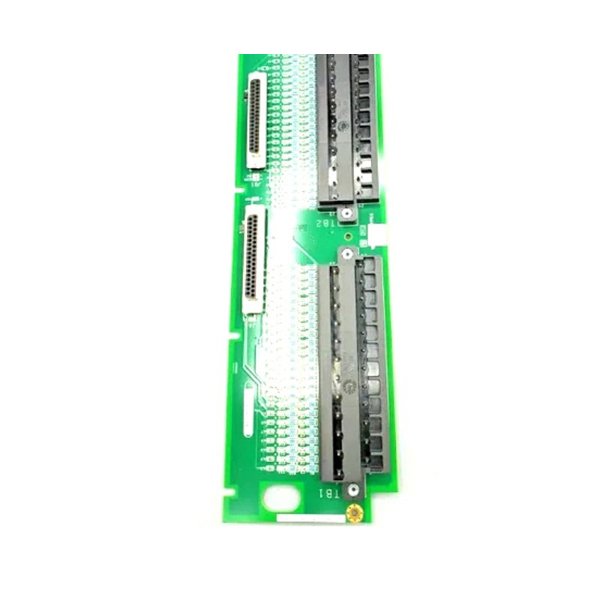

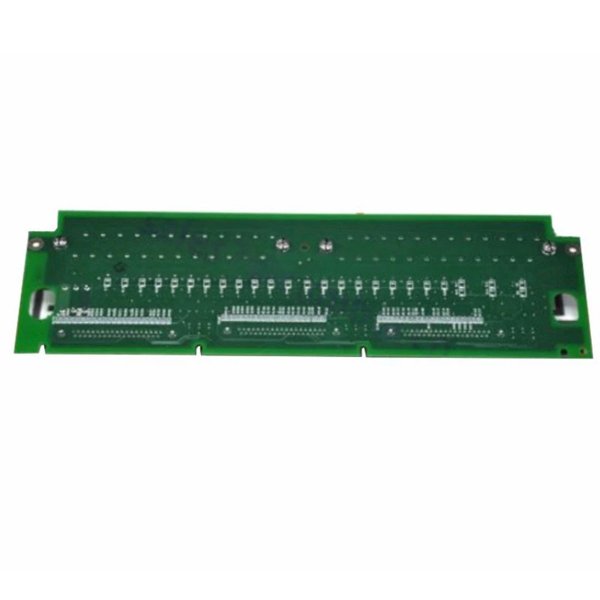

General Electric IS200TBTCH1C Thermocouple Input terminal board

The GE IS200TBTCH1C is a state-of-the-art turbine control module from General Electric’s innovative line of industrial control products. It is designed for high-reliability and precision control of turbine and generator systems in power generation plants and heavy industrial applications. The IS200TBTCH1C is a part of the GE Mark VIe series, which is known for its advanced functionality and robust design, ensuring continuous operation even under extreme conditions.

Product Specifications

Product Applications

The GE IS200TBTCH1C is primarily used in turbine control systems, including steam turbines, gas turbines, and generator systems. Its core applications are found in industries such as:

• Power Generation: Turbine control for large-scale power plants.

• Oil & Gas: Control of turbine systems used in offshore platforms and refineries.

• Marine: Power systems for ships and offshore rigs.

• Industrial Automation: High-precision control for industrial machinery.

Advantages of GE IS200TBTCH1C

• High Reliability: The IS200TBTCH1C is designed for 24/7 operation, ensuring that turbine control systems run smoothly without interruptions.

• Advanced Diagnostics: Provides advanced fault detection and diagnostic capabilities to minimize downtime.

• Flexible Connectivity: It supports both Ethernet and serial communication protocols, enabling integration into a wide range of control systems.

• Compact Design: With a small footprint, it is easy to integrate into existing systems without requiring significant space.

• Durable Build: Built to endure harsh environments and wide temperature ranges, making it suitable for both indoor and outdoor applications.

• Energy Efficiency: Designed to optimize turbine performance, leading to better fuel efficiency and reduced operational costs.

FAQ

1. What is the GE IS200TBTCH1C used for?

Answer: It is primarily used for controlling turbine systems in various industries, including power generation, oil and gas, and marine applications.

2. Can the IS200TBTCH1C operate in extreme temperatures?

Answer: Yes, it can operate within a temperature range of -40°C to +70°C, making it suitable for harsh environments.

3. What communication protocols does the IS200TBTCH1C support?

Answer: The module supports Ethernet and serial communication protocols, allowing easy integration with different control systems.

4. What is the weight of the IS200TBTCH1C?

Answer: The unit weighs 1.5 kg, which is relatively lightweight for such a powerful control module.

5. Is the IS200TBTCH1C environmentally protected?

Answer: Yes, it has an IP20 rating, meaning it is suitable for indoor use with protection against solid objects larger than 12mm but not protected from liquids.

6. How is the IS200TBTCH1C mounted?

Answer: It can be easily mounted using a DIN rail, which is a standard for industrial mounting.

7. What is the operating voltage for the IS200TBTCH1C?

Answer: It operates at 24V DC, which is standard for many industrial control systems.

8. Does the IS200TBTCH1C come with certifications?

Answer: Yes, it is certified by UL, CE, and CSA, ensuring its compliance with international safety and quality standards.

9. Can the IS200TBTCH1C be used in offshore applications?

Answer: Yes, its rugged build and wide operational temperature range make it suitable for offshore applications, including oil rigs.

10. How does the IS200TBTCH1C improve turbine performance?

Answer: It features advanced diagnostic and fault detection capabilities, allowing for precise control, reduced downtime, and optimized turbine efficiency.
