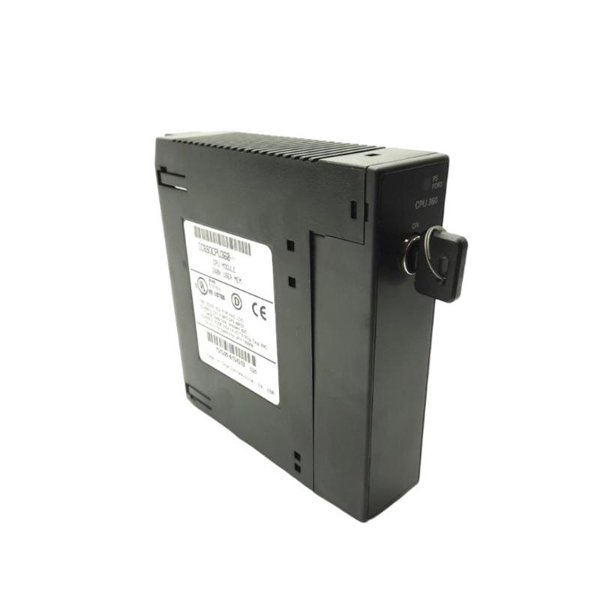

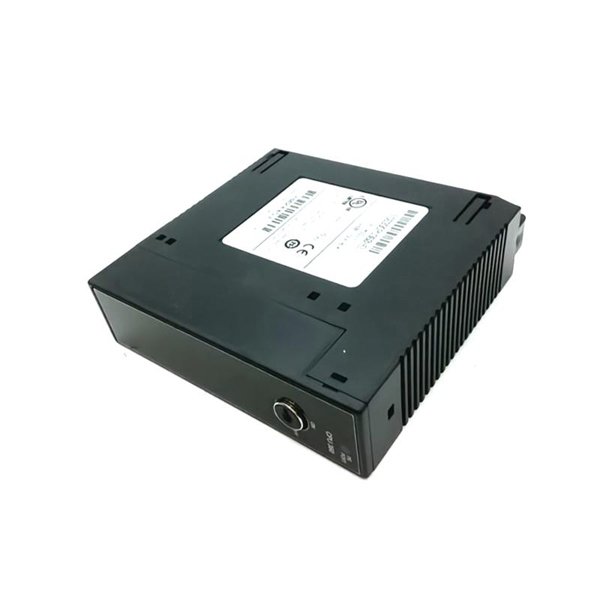

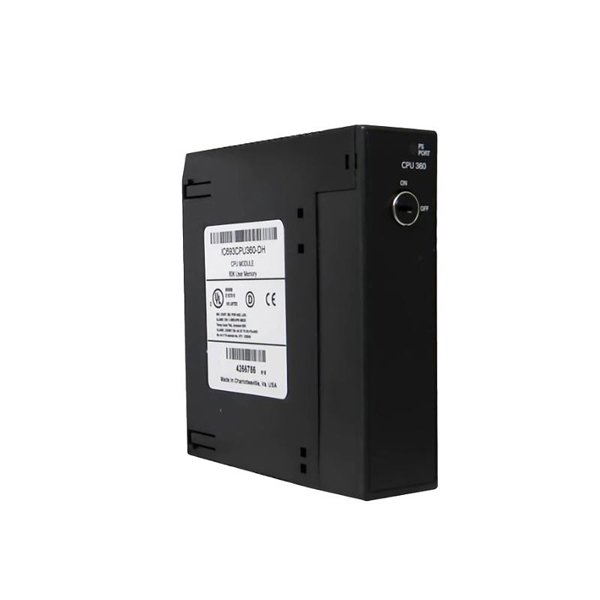

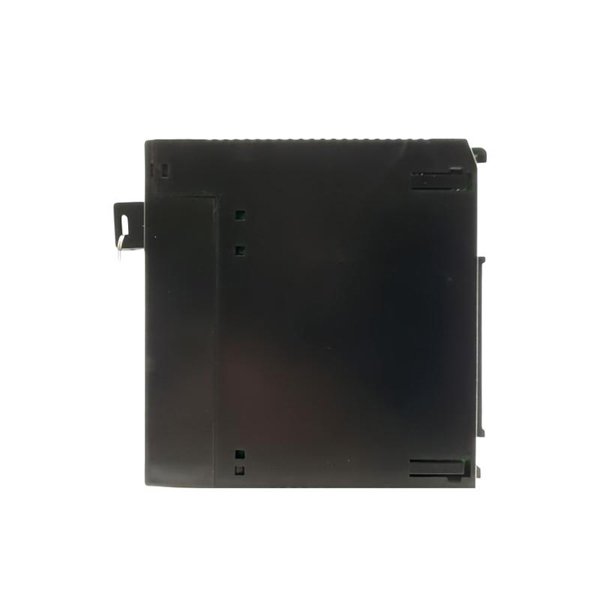

General Electric IC693CPU360 Single-Slot CPU Module

The GE IC693CPU360 Single-Slot CPU Module is a high-performance processor designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) platform. It combines advanced processing capabilities with expanded memory and versatile communication options, making it well-suited for demanding industrial automation tasks.

This CPU module delivers an optimal balance between speed, memory, and communication to handle complex control logic and data-intensive applications. Designed for use in harsh industrial environments, the IC693CPU360 offers a reliable and efficient solution for both standalone systems and networked PLC configurations.

Its single-slot footprint enables easy installation in Series 90-30 racks, preserving valuable rack space while providing substantial computing power. Additionally, the module is compatible with a wide range of Series 90-30 I/O and expansion components, making it highly scalable for both small and large automation systems.

Product Specifications

Applications

The IC693CPU360 is widely deployed across various industrial sectors, particularly where advanced processing and control are required:

• Discrete Manufacturing: Controls complex assembly lines, robotic operations, and material handling equipment.

• Process Automation: Supports continuous and batch process industries such as oil & gas, chemical production, and pharmaceuticals.

• Utilities and Energy: Provides real-time control of electrical distribution systems, power plants, and water treatment facilities.

• Building Automation: Integrated into HVAC, lighting, and energy management systems.

• Automotive Industry: Operates conveyor lines, inspection stations, and advanced robotic welding systems.

• Packaging: Controls filling, sealing, and labeling machinery in high-speed packaging lines.

Advantages and Key Features

• High-Speed Processing: The 25 MHz CPU provides faster execution of control programs and better system responsiveness.

• Ample User Memory: With 240 KB of total user memory, it handles large and complex applications with ease.

• Versatile Communication: Supports RS-232 / RS-485 serial communications; Ethernet connectivity can be added via optional modules.

• Single-Slot Footprint: Saves valuable rack space while delivering powerful functionality.

• Comprehensive Programming Support: Multiple programming languages accommodate various programming styles and applications.

• Reliable Performance: Designed for demanding industrial environments, ensuring long-term, stable operation.

• Battery Backup: Retains critical program and data information during power outages.

• Compatibility: Seamlessly integrates with other Series 90-30 modules and a wide range of I/O options.

• Certified for Industrial Use: Meets UL and CE standards for safety and compliance.

Frequently Asked Questions (FAQ)

1. What is the processor speed of the IC693CPU360?

   The CPU operates at 25 MHz.

2. How much user memory does this module provide?

   The CPU offers 240 KB of total user memory.

3. What programming languages are supported?

   Ladder Logic, SFC (Sequential Function Chart), Structured Text, and Function Block.

4. Can this module communicate over Ethernet?

   Yes, Ethernet is supported through an additional Ethernet module.

5. Is this module compatible with older Series 90-30 racks?

   Yes, it is fully compatible with existing Series 90-30 racks.

6. Is battery backup included?

   Yes, it has battery backup for retaining user programs and data.

7. What are the dimensions and weight of the module?

   130 x 100 x 40 mm; weight is 0.449 kg.

8. Can the CPU module operate in high humidity environments?

   Yes, it supports relative humidity up to 95% non-condensing.

9. Is hot-swapping supported?

   No, the module is not hot-swappable. Power must be off during installation or replacement.

10. Is the IC693CPU360 UL recognized?

    Yes, it is UL recognized and CE marked.
