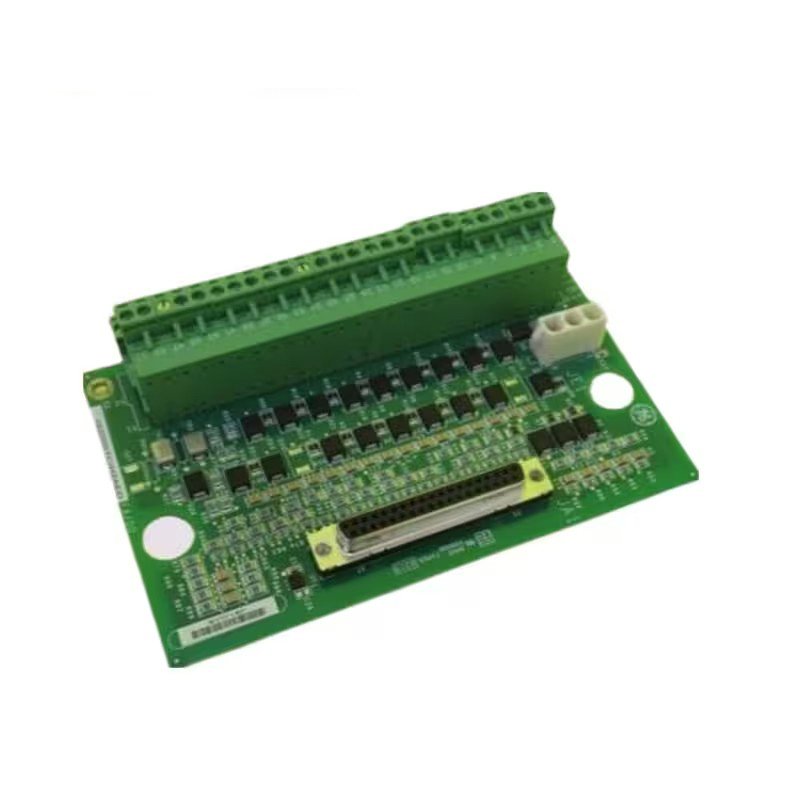

GE Fanuc IS200STCIH2AED Terminal Board

The IS200STCIH2AED is part of the Mark VIe series. It serves as a Simplex Analog Input Terminal Board in distributed control systems. This board supports 10 analog inputs and 2 analog outputs. It is compatible with two-wire, three-wire, and four-wire transmitters.

Technical Specifications

• Analog Inputs: 10 inputs (supports 0-20 mA, 4-20 mA, and 0-10 V signals)
• Analog Outputs: 2 outputs (supports 0-20 mA and 4-20 mA signals)
• Transmitter Compatibility:
  • Two-wire
  • Three-wire
  • Four-wire transmitters
• Connectors: High-density Euro-block terminals for secure wiring
• ID Chip: Onboard chip for automatic system identification and diagnostics
• Mounting: DIN rail or direct cabinet mounting
• Temperature Range: Designed for industrial environments
• Power Supply: 24 V DC
• Dimensions: 14.75 cm x 9.50 cm x 3.50 cm
• Weight: 0.8 kg
