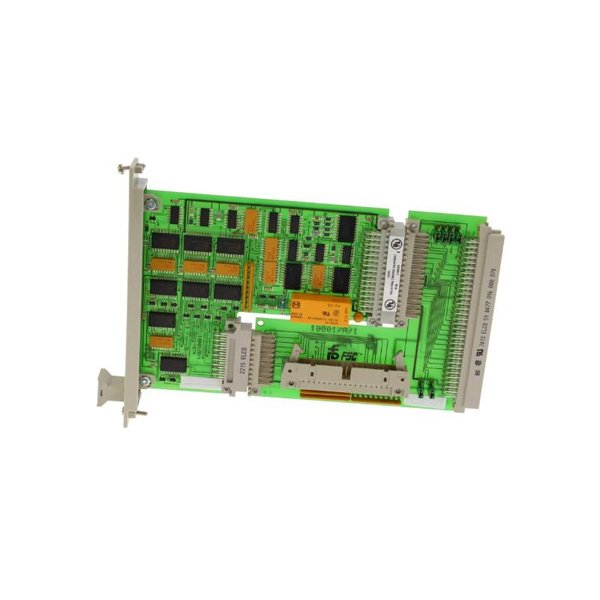

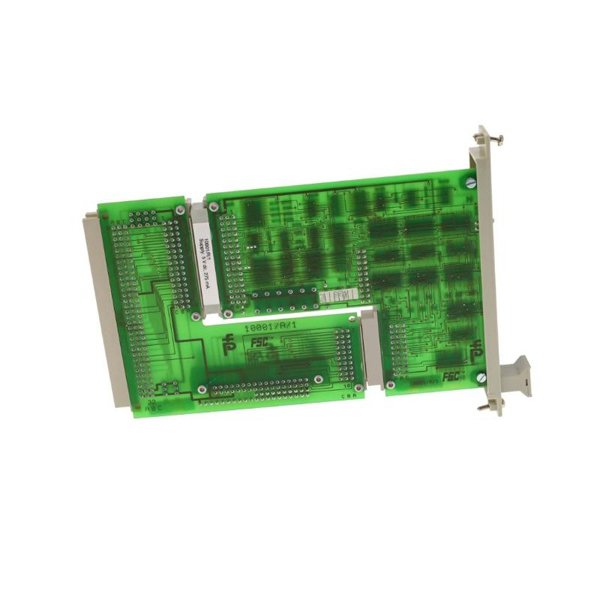

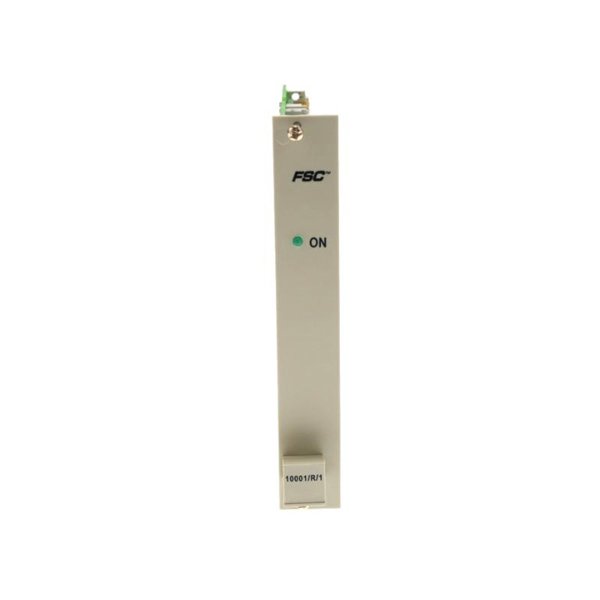

Honeywell 10001/R/1 Vertical Bus Driver

The Honeywell 10001/R/1 Vertical Bus Driver (VBD) is an integral component of Honeywell’s Fail Safe Controller (FSC) system, facilitating efficient communication between the Central Part (CP) and the Input/Output (I/O) levels. Positioned within the CP rack, the VBD ensures seamless data transfer across the vertical bus, enhancing the reliability and performance of industrial automation systems.

Product Specifications

The following table outlines the key specifications for the Honeywell 10001/R/1 Vertical Bus Driver:

Product Applications

The 10001/R/1 Vertical Bus Driver is utilized in various industrial applications, including:

• Process Automation: Ensures reliable communication between control systems and field devices in industries such as oil and gas, chemical processing, and power generation.
• Safety Systems: Integral to safety instrumented systems (SIS), providing fail-safe operations in critical processes.
• Manufacturing: Supports automation in manufacturing processes, enhancing efficiency and productivity.

Product Advantages

The Honeywell 10001/R/1 Vertical Bus Driver offers several advantages:

• High Reliability: Designed to maintain stable communication in demanding industrial environments.
• Scalability: Supports up to 10 Horizontal Bus Driver (HBD) modules per VBD, with a maximum of 14 VBDs per Central Part, allowing for extensive system expansion.
• Compact Design: Occupies minimal space within standard industrial enclosures, facilitating easy integration.
• Compliance: Meets international standards (CE, TÜV, UL), ensuring adherence to safety and quality requirements.

FAQ

1. What is the primary function of the Honeywell 10001/R/1 Vertical Bus Driver?

   • It facilitates communication between the Central Part and I/O levels in Honeywell’s FSC system, ensuring efficient data transfer across the vertical bus.

2. How many Horizontal Bus Driver (HBD) modules can each Vertical Bus Driver support?

   • Each VBD can support up to 10 HBD modules.

3. What is the maximum number of Vertical Bus Drivers that can be installed per Central Part?

   • A maximum of 14 VBDs can be installed per Central Part.

4. What are the power requirements for the 10001/R/1 Vertical Bus Driver?

   • It requires a 5 VDC power supply with a current of 275 mA.

5. What are the dimensions of the 10001/R/1 Vertical Bus Driver?

   • The dimensions of this vertical bus driver are 20.32 × 128.5 × 160 mm.

6. What certifications does the 10001/R/1 Vertical Bus Driver hold?

   • It holds CE, TÜV, and UL certifications.

7. What is the ripple content specification for this module?

   • The ripple content is less than 50 mV peak-to-peak.

8. What is the weight of the 10001/R/1 Vertical Bus Driver?

   • The weight is 3 kg.

9. Is the 10001/R/1 Vertical Bus Driver compatible with other Honeywell systems?

   • It is specifically designed for integration within Honeywell’s FSC system.

10. What type of maintenance is required for this module?

    Regular maintenance includes checking power connections, ensuring proper ventilation, inspecting for any physical damage, and verifying firmware or software updates.
