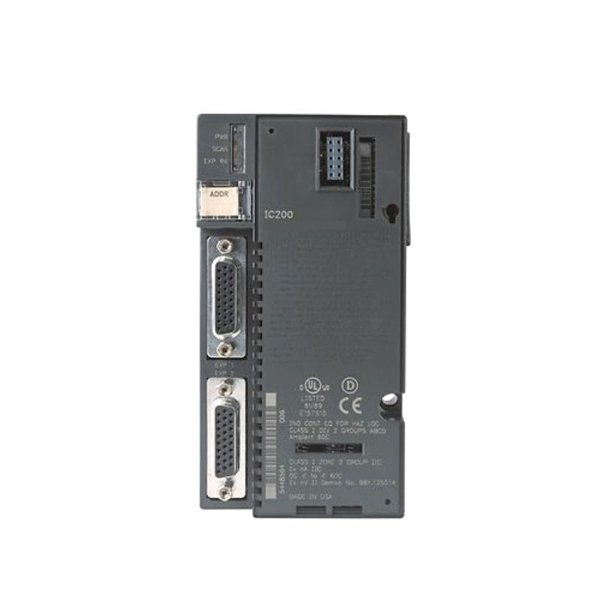

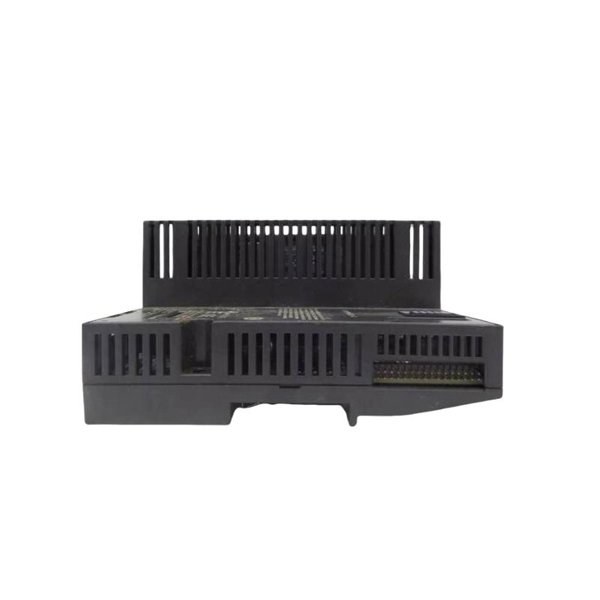

General Electric IC200PNS002-AA VersaMax PROFINET Scanner Module
Manufacturer:GE
Product Number:IC200PNS002-AA
Product Type:VersaMax PROFINET Scanner Module
Origin:USA
Dimensions:132 × 134 mm
Weight:0.35 kg
Views:88
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IC200PNS002-AA is a PROFINET Scanner (PNS) module within the VersaMax series, designed to interface remote nodes of VersaMax modules with a PROFINET IO-Controller. It scans connected modules, retrieves input data, provides output data, and publishes input data on the PROFINET network at configured production rates. The PNS manages PROFINET communication and module configuration between an IO-Controller and modules within the remote node. In the event of network communication loss, the PNS manages I/O states according to individual module configurations.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE |
| Product Number | IC200PNS002-AA |
| Product Type | PROFINET Scanner Module |
| PROFINET Support | PROFINET Version 2.2 Class A IO-Device |
| Power Consumption | 1.10A at 5VDC |
| Dimensions (W x H) | 132 × 134 mm |
| Weight | 0.35 kg |
| Carrier Required | No (Carrier is integrated into the module) |
| Operating Temperature Range | 0 to 60°C surrounding air temperature without a fan |
| Number of Port Connectors | Two SC-Duplex |
| USB Connector | One Micro-B connector, USB 2.0 compliant running at Full-speed (12 MHz) |
| PNS Status and Control Bits | 32 input status bits and 32 output control bits |
| I/O Data Update Rates | Configurable: 1ms, 2ms, 4ms, 8ms, 16ms, 32ms, 64ms, 128ms, 256ms, and 512ms |
| Number of IP Addresses | One (Supports Classless Inter-Domain Routing (CIDR)) |
| Number of MAC Addresses | Three (One per external port and one internal) |
| I/O Station Maximum Limits | Up to 8 I/O modules per station; 1440 bytes of input data and 1440 bytes of output data |
Product Applications
The GE IC200PNS002-AA VersaMax PROFINET Scanner Module is utilized across various industries for applications such as:
Industrial Automation: Facilitates seamless communication between field devices and control systems, enhancing process efficiency.
Manufacturing: Enables integration of various manufacturing equipment into a unified control network, improving coordination and productivity.
Energy Sector: Assists in monitoring and controlling energy distribution systems by interfacing with remote I/O devices.
Water Treatment Plants: Allows for centralized control of various treatment processes by connecting remote sensors and actuators.
Transportation Systems: Integrates various control components in transportation infrastructure, ensuring synchronized operations.
Chemical Processing: Provides reliable data acquisition and control capabilities essential for maintaining process safety and efficiency.
Product Advantages
Integrated Carrier Design: Eliminates the need for an external carrier, simplifying installation and reducing system complexity.
High-Speed Data Transfer: Supports configurable I/O data update rates as fast as 1ms, ensuring timely data communication.
Flexible Network Topologies: Supports daisy-chain/line, star, or ring (redundant media) topologies, providing versatility in network design.
Media Redundancy Protocol (MRP) Support: Enhances network reliability by supporting MRP client mode operation.
Field Upgradable Firmware: Allows for firmware updates via USB port, ensuring the module remains up-to-date with the latest features and improvements.
Maintenance Mode Feature: Permits servicing of the remote node while maintaining network connections, minimizing downtime.
Standard PROFINET Alarm and Diagnostics Reporting: Provides comprehensive diagnostic information, facilitating quick troubleshooting and maintenance.
Redundant Power Supply Support: Offers enhanced reliability by supporting redundant power supplies, with hot-swap capability for de-energized units.
Frequently Asked Questions (FAQ)
1. What is the primary role of the IC200PNS002-AA in an industrial control system?
The IC200PNS002-AA acts as a PROFINET Scanner module, connecting remote VersaMax I/O modules to a PROFINET IO-Controller for real-time data exchange.
2. Is the IC200PNS002-AA compatible with all VersaMax modules?
Yes, it is compatible with most VersaMax I/O modules, provided they are within the allowed limits of 8 modules per remote station.
3. How many I/O modules can this unit support in a single node?
It supports up to 8 I/O modules per remote node.
4. What is the maximum data transfer capacity for input and output?
The module supports up to 1440 bytes of input data and 1440 bytes of output data per station.
5. Does the IC200PNS002-AA support redundant power supplies?
Yes, it is designed to work with redundant power supplies to increase system reliability.
6. Can the firmware of this module be updated in the field?
Yes, firmware updates are supported via the integrated USB 2.0 port.
7. What type of network topologies are supported?
The module supports daisy-chain, star, and ring topologies, and is also compatible with MRP (Media Redundancy Protocol).
8. Is this module suitable for harsh industrial environments?
It operates in temperatures ranging from 0°C to 60°C and is built to withstand standard industrial conditions.
9. How does the module handle communication failure with the IO-Controller?
If communication is lost, the module maintains I/O states based on pre-configured settings, ensuring stable operations.
10. What are the key indicators or status LEDs on the module?
The module features several status indicators including module status, network status, and I/O communication status for quick diagnostics.
