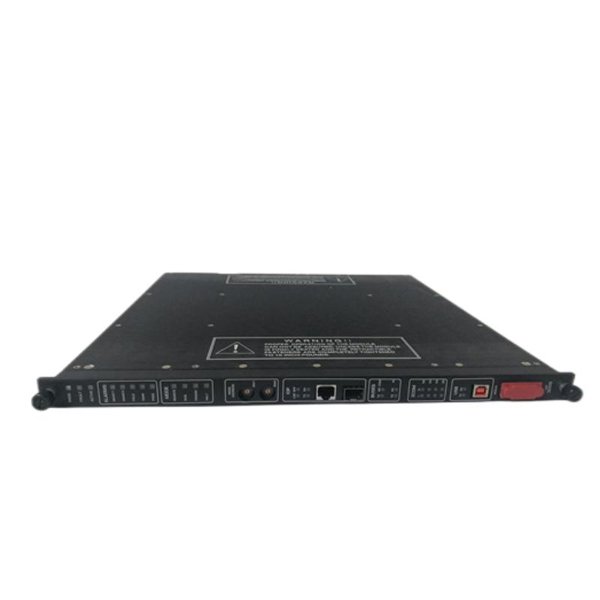

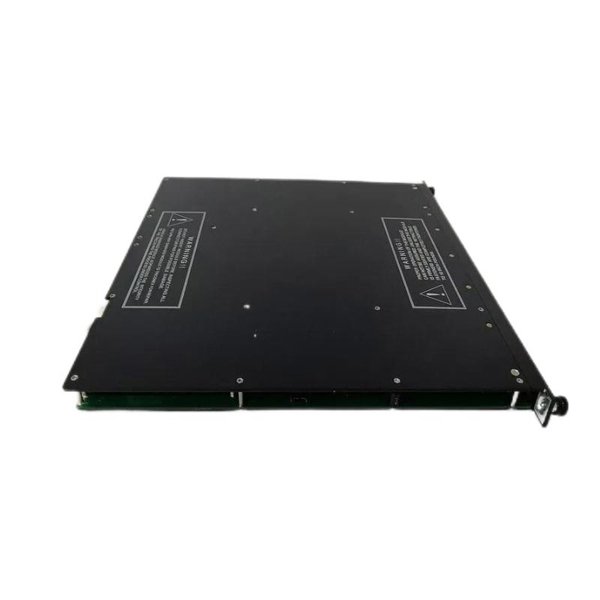

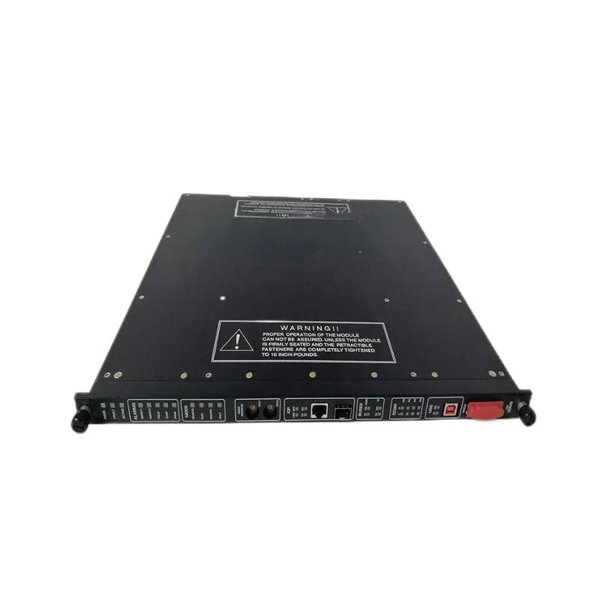

Triconex 3009 Enhanced Main Processor Module

The Invensys Triconex 3009 Enhanced Main Processor Module is a critical component of the Tricon Safety System by Invensys, specifically designed for safety instrumented systems (SIS) in high-demand applications. The 3009 module provides enhanced processing power, reliability, and redundancy to ensure that complex safety functions operate effectively in mission-critical environments. It delivers robust performance for safety-critical applications across various industries, including oil and gas, chemical, power, and industrial control.

The 3009 Enhanced Main Processor Module is a vital part of the Triconex system, offering higher processing speed, more efficient data handling, and increased system throughput. This module forms the backbone of a Tricon Safety System by continuously monitoring critical processes and initiating safety measures when required, ensuring the protection of both human life and plant assets. It is designed to integrate seamlessly into the Triconex architecture, ensuring easy expansion and superior fault tolerance in distributed control systems (DCS).

Product Specifications

The following table outlines the key specifications of the Invensys Triconex 3009 Enhanced Main Processor Module:

Product Applications

The Triconex 3009 Enhanced Main Processor Module is deployed in industries where safety is paramount, and continuous, reliable operation is critical. Applications include:

1. Process Control Systems: In industries such as oil & gas, chemicals, and power generation, the module ensures safe operation by monitoring plant processes and initiating control actions in response to dangerous conditions.
2. Safety Instrumented Systems (SIS): A key part of safety instrumented functions, the 3009 processor provides critical control in the event of abnormal conditions, activating emergency shutdown procedures when needed.
3. Emergency Shutdown Systems (ESD): The module is an essential component in managing emergency shutdown processes, ensuring that systems remain in a safe state during hazardous events or failures.
4. Fire & Gas Systems: The 3009 is used in fire and gas detection systems to monitor hazardous environments and quickly activate appropriate safety protocols.
5. Control of Hazardous Materials: In industries dealing with volatile or hazardous materials, the 3009 ensures that any anomaly in system operations results in a controlled response, minimizing risks to personnel and assets.
6. Redundant Systems for Safety Critical Processes: The module’s dual Ethernet ports and hot standby redundancy ensure that critical safety systems remain operational even in the event of a fault or failure.
7. Shutdown and Alarming Systems: It is used to monitor and manage critical system shutdowns and alarms, ensuring compliance with regulatory standards and safety protocols.
8. Distributed Control Systems (DCS): Fully compatible with DCS configurations, the module integrates with other safety and control devices to ensure safety across complex, distributed environments.

Product Advantages

The Invensys Triconex 3009 Enhanced Main Processor Module offers a variety of advantages that ensure it delivers high performance and reliability for safety-critical applications:

1. Enhanced Processing Power – Provides up to 10 times faster processing than previous models, enabling real-time, efficient data handling.
2. Redundant System Architecture – Dual communication channels and hot standby redundancy guarantee system uptime and reliability.
3. High Reliability – The module boasts a very low failure rate (<0.1%), ensuring continuous operation and minimal downtime.
4. Wide Temperature Range – With an operating range of -40°C to +70°C, the 3009 can function in extreme environmental conditions, making it suitable for harsh industrial environments.
5. Comprehensive Fault Diagnostics – Real-time diagnostics provide continuous monitoring of the system’s health, detecting faults before they affect performance.
6. Comprehensive I/O Compatibility – Compatible with all Triconex I/O modules, both analog and digital, allowing for flexible configuration.
7. Global Compliance – Meets major safety and quality certifications including IEC 61508, IEC 61511, ISO 13849, and ATEX, ensuring it is suitable for hazardous areas.
8. Energy Efficient – The processor operates with low power consumption, reducing operational costs in the long run.
9. Flexible Communication – Dual Ethernet ports with support for multiple communication protocols (Modbus, HART, Profibus) ensure seamless integration into various industrial systems.
10. Seamless Integration – The 3009 module integrates seamlessly with other Triconex modules, offering expandability and ensuring long-term system scalability.
