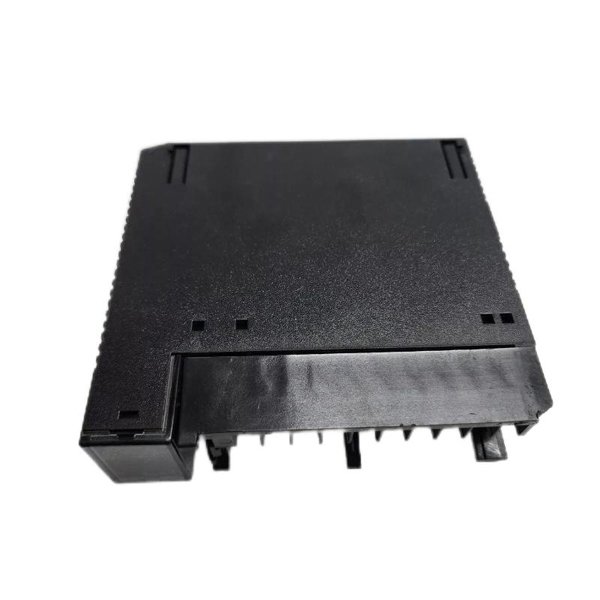

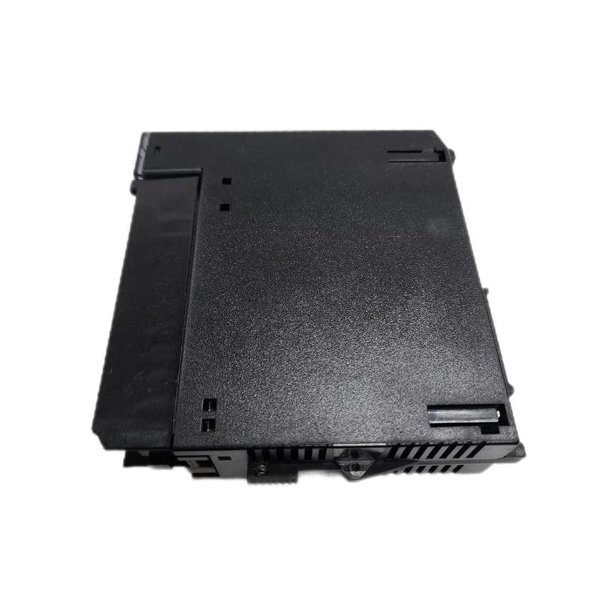

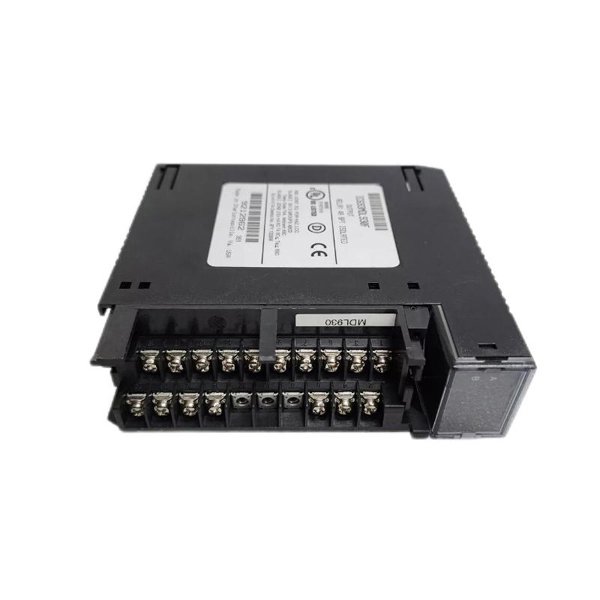

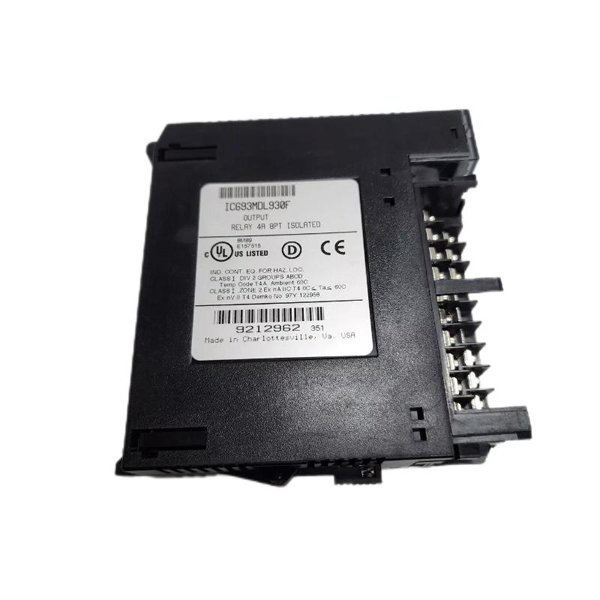

General Electric IC693MDL930F Relay output Module

The GE IC693MDL930F is a high-quality Input/Output (I/O) module used in industrial control systems, particularly in programmable logic controller (PLC) setups. It is designed to provide reliable digital output control for various applications in manufacturing, process control, and automation systems. The IC693MDL930F is part of the GE Fanuc Series 90-30 PLC, renowned for its compatibility, ease of use, and robust performance in industrial environments.

This module supports a wide range of applications by connecting PLC systems to field devices, offering an effective solution for interfacing digital signals and controlling automated processes.

Product Specifications

Applications

The GE IC693MDL930F module is primarily used for industrial applications where reliable digital output control is required. Some key applications include:

• Factory Automation: Integrating with PLC systems for controlling machines and equipment.

• Process Control: Managing digital outputs for devices like relays, alarms, and lights.

• Control Panels: Used for controlling multiple industrial devices in automated processes.

• Energy Management Systems: Interfacing with various energy meters and distribution equipment.

• Building Automation: Controlling HVAC systems, lighting, and other building utilities.

Product Advantages

• High Reliability: Offers superior reliability in harsh industrial environments with durable construction and long operational life.

• Modular Design: The IC693MDL930F is easily interchangeable with other modules in the GE 90-30 PLC series, allowing for flexible system configurations.

• Wide Compatibility: Compatible with other GE 90-30 PLC modules, making it easy to expand existing systems.

• Easy Installation: The plug-in design facilitates quick and straightforward installation, reducing downtime.

• Low Power Consumption: Operates efficiently with low power requirements, making it an energy-saving choice for industrial applications.

• Versatile Output Control: Provides 32 digital outputs, offering a variety of control options for various devices.

FAQ (Frequently Asked Questions)

1. What is the main function of the GE IC693MDL930F module?

The main function of the IC693MDL930F module is to provide 32 digital output channels, enabling the control of various industrial devices like relays, actuators, and lights.

2. How many digital outputs does the IC693MDL930F module support?

The IC693MDL930F module supports 32 digital output points, capable of both sinking and sourcing current.

3. What is the voltage rating for the IC693MDL930F module?

The module supports a voltage rating between 5V DC to 30V DC, making it suitable for a wide range of industrial applications.

4. What is the maximum current rating for each output channel?

Each output channel can handle up to 0.5A, ensuring reliable operation of digital devices.

5. Can the GE IC693MDL930F module be used with other GE PLCs?

The IC693MDL930F module is designed specifically for the GE 90-30 PLC series but is compatible with other modules within the same series.

6. What is the temperature range for the IC693MDL930F?

The module operates in an environment with temperatures ranging from 0°C to 60°C, making it suitable for most industrial conditions.

7. How is the IC693MDL930F module mounted?

The IC693MDL930F is a plug-in type module, designed for easy installation and removal from the PLC rack.

8. What is the weight of the IC693MDL930F module?

The IC693MDL930F module weighs 0.45 kg, which is typical for similar modules in the GE 90-30 series.

9. What is the relative humidity range for the IC693MDL930F module?

The module can operate in environments with relative humidity from 5% to 95%, non-condensing.

10. How does the IC693MDL930F compare to other GE digital output modules?

The IC693MDL930F offers a robust set of features including 32 digital outputs, wide voltage support, and modular flexibility, making it suitable for a variety of industrial applications.
