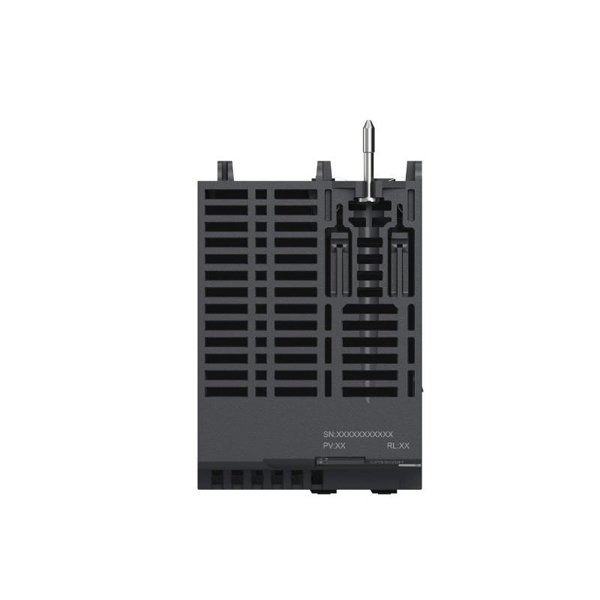

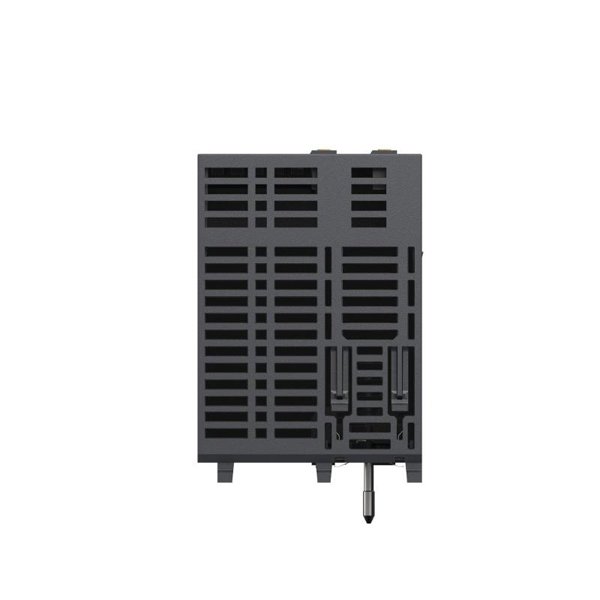

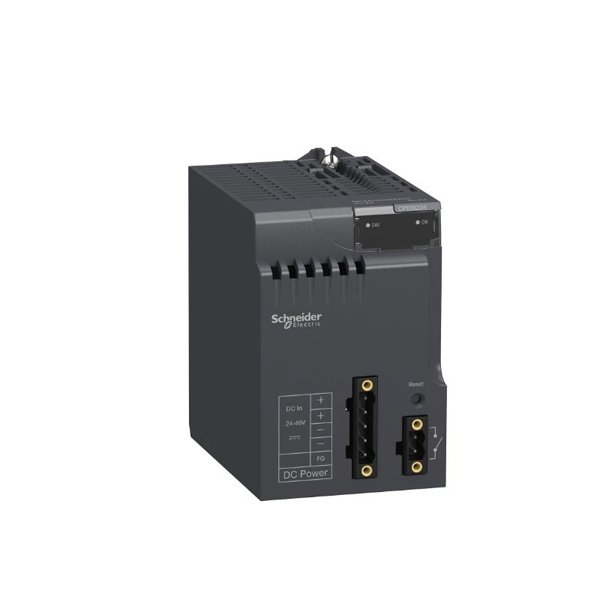

Schneider BMXCPS3500H Power Supply Module
Manufacturer:Schneider
Product Number:BMXCPS3500H
Product Type:Power Supply Module
Origin:France
Dimensions:99 x 68 x 104 mm
Weight:0.36 kg
Views:66
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider Electric BMXCPS3500H is a high-performance power supply module designed specifically for the Modicon X80 platform, which supports both Modicon M340 and Modicon M580 Programmable Automation Controllers (PACs). Engineered for severe industrial environments, this module ensures reliable and stable power delivery, critical for maintaining uninterrupted operations in demanding applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Schneider Electric BMXCPS3500H |
| Product Type | Power Supply Module for Modicon X80 |
| Input Voltage Range | 100–240 V AC (85–264 V AC permissible) |
| Input Frequency | 50/60 Hz (47–63 Hz permissible) |
| Input Current | 1.04 A at 115 V AC; 0.52 A at 240 V AC |
| Inrush Current | 30 A at 120 V AC; 60 A at 240 V AC |
| Output Voltages | 3.3 V DC and 24 V DC |
| Output Power | 36 W total |
| Output Currents | 4.5 A at 3.3 V DC; 1.3 A at 24 V DC (I/O modules and processor); 0.9 A at 24 V DC (sensors) |
| Maximum Power Dissipation | 8.5 W |
| Protection Types | Internal fuse (primary circuit), overload, overvoltage, short-circuit (secondary circuit) |
| Status Indicators | 1 green LED for rack voltage OK; 1 green LED for sensor voltage |
| Control Type | RESET push-button for cold restart |
| Electrical Connections | 1 x 2-pin connector for alarm relay; 1 x 5-pin connector for line supply, protective earth, and 24 V DC input sensor |
| Insulation Resistance | ≥100 MΩ (primary/ground and primary/secondary) |
| Dielectric Strength | 1500 V (primary/ground and primary/secondary for I/O modules); 2300 V (primary/secondary for sensor power supply); 500 V (24 V sensor output/ground) |
| Mounting Type | DIN rail |
| Dimensions (H x W x D) | 99 x 68 x 104 mm |
| Weight | 0.36 kg |
| Operating Temperature Range | -25°C to +70°C (-13°F to +158°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% at 55°C (non-condensing) |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| IP Degree of Protection | IP20 |
| Operating Altitude | 0–2000 m (0–6562 ft); 2000–5000 m (6562–16404 ft) with derating factor |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Compliance Standards | EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201 |
Applications
The BMXCPS3500H power supply module is suitable for a wide range of industrial applications, particularly in environments that demand high reliability and resilience:
Manufacturing Plants: Provides stable power to automation controllers and I/O modules in assembly lines and robotic systems.
Energy Sector: Powers control systems in power generation and distribution facilities.
Water and Wastewater Treatment: Ensures continuous operation of monitoring and control equipment in treatment plants.
Transportation Systems: Supports automation systems in railways, airports, and traffic management.
Oil and Gas Industry: Supplies power to control systems in exploration, drilling, and refining operations.
Building Automation: Powers systems managing HVAC, lighting, and security in commercial buildings.
Product Advantages
High Reliability: Designed for continuous operation in harsh industrial environments, minimizing downtime.
Versatile Power Output: Simultaneously provides multiple voltage levels to cater to various components within the control system.
Robust Protection Features: Safeguards connected equipment against electrical faults, enhancing system longevity.
Compact and Lightweight Design: Facilitates easy installation and integration into existing systems without requiring significant space.
Environmental Resilience: Operates effectively across a wide temperature range and in high humidity conditions.
Compliance with International Standards: Meets global certifications, ensuring suitability for use in various regions and industries.
FAQ
Q: What is the primary function of the BMXCPS3500H module?
A: It serves as a power supply unit, converting AC input voltage to regulated DC outputs (3.3 V and 24 V) to power various components within the Modicon X80 automation system.
Q: Can the BMXCPS3500H be used in redundant power configurations?
A: No, this module is not designed for redundant power supply setups. For redundancy, consider models specifically designed for that purpose.
Q: Is the module compatible with all Modicon backplanes?
A: It is compatible with Modicon X80 backplanes but not with BMEXBP..02 backplanes.
Q: What protections are integrated into the BMXCPS3500H?
A: The module includes an internal fuse for the primary circuit and provides overload, overvoltage, and short-circuit protections for the secondary circuit.
Q: What are the dimensions and weight of the module?
A: The module measures 99 x 68 x 104 mm and weighs 0.36 kg.
Q: What is the operating temperature range for the BMXCPS3500H?
A: It operates within a temperature range of -25°C to +70°C.
Q: Does the module have any status indicators?
A: Yes, it features two green LEDs indicating rack voltage OK and sensor voltage status.
Q: What is the maximum power output of the module?
A: The module provides a total output power of 36 W.
Q: Is the BMXCPS3500H suitable for use in high-altitude locations?
A: Yes, it can operate up to 2000 m without derating and up to 5000 m with a derating factor.
Q: What certifications does the module have?
A: It is certified by CE, UL, CSA, RCM, EAC, and Merchant Navy standards.
