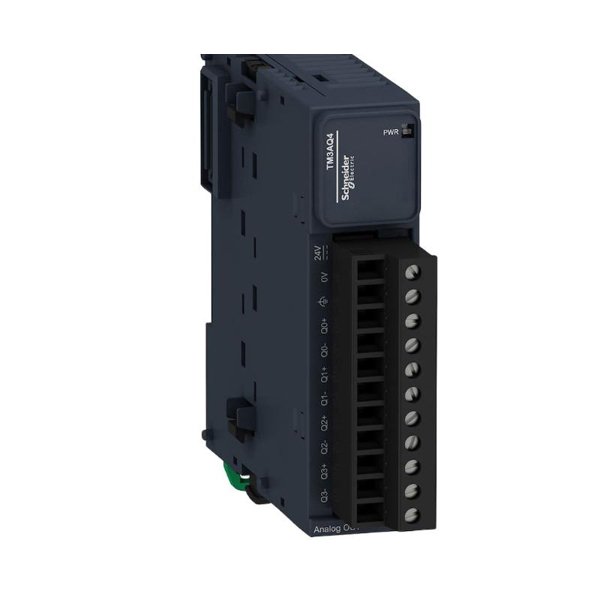

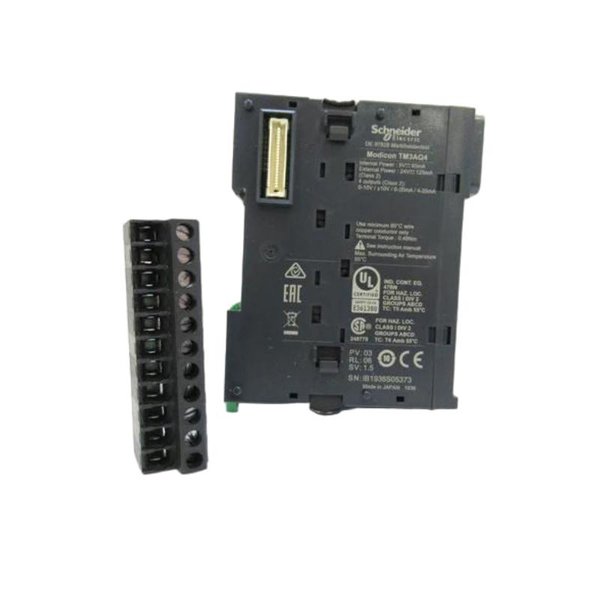

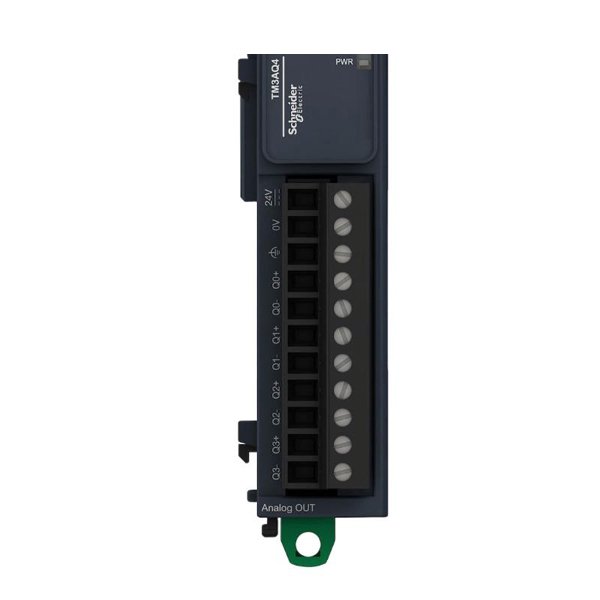

Schneider TM3AQ4 Modicon TM3 4-Channel Analog Output Module

The Schneider TM3AQ4 is a high-performance analog output module from the Modicon TM3 series, designed for industrial automation systems requiring precise analog signal generation. This 4-channel output module is an integral part of the Modicon TM3 I/O system, offering reliable control and signal transmission for a wide range of applications.

With a compact design, the TM3AQ4 module provides the flexibility to handle multiple analog output signals in industrial control and process automation systems. It is engineered to interface seamlessly with Schneider Electric’s Modicon PLC systems, ensuring smooth integration and high reliability in demanding industrial environments.

The TM3AQ4 module provides 4 analog output channels that support voltage and current signals, making it a versatile choice for many automation applications. Its small size (measuring 90 x 70 x 23.6 mm) and light weight (0.115 kg) allow for easy installation in systems where space is limited.

Technical Parameters

Product Applications

The Schneider TM3AQ4 Modicon TM3 4-Channel Analog Output Module is designed to serve various industrial control and process automation applications where precise control and measurement of analog signals are necessary. Some of the key applications include:

1. Industrial Automation Systems: The module provides precise control of output signals for actuators, valves, and motors in automation systems.

2. Process Control Systems: It is commonly used in systems that require the generation of output signals for controlling process parameters such as temperature, pressure, and flow.

3. Energy Management Systems: The TM3AQ4 is ideal for energy control systems that require analog output to control devices such as circuit breakers, energy meters, and power converters.

4. Building Automation: The module can be used in building systems such as HVAC systems and lighting control, where precise voltage or current output is required for controlling environmental conditions.

5. Machine Control Systems: It is suitable for controlling machine parameters like speed, position, and other critical metrics in industrial machinery and robotics.

6. Data Acquisition and Signal Processing: The TM3AQ4 supports data acquisition and the processing of analog signals from sensors to output precise control signals to other devices in the system.

Advantages

1. Compact and Lightweight Design: The TM3AQ4 features dimensions of 90 x 70 x 23.6 mm and a weight of just 0.115 kg, making it ideal for systems with limited space.

2. High Precision and Reliability: The module offers high accuracy and stable performance in controlling and generating analog signals, ensuring that the system operates reliably and efficiently.

3. Multiple Output Options: The TM3AQ4 supports both voltage (0-10V) and current (4-20mA) output signals, making it a versatile choice for a wide range of applications.

4. Seamless Integration with Schneider PLC Systems: The module integrates effortlessly into Schneider Electric’s Modicon PLC systems, ensuring smooth communication and easy setup.

5. Wide Temperature Range: The TM3AQ4 operates within a wide temperature range of -20°C to +60°C, ensuring stable performance in various industrial environments.

6. Modular System Compatibility: The TM3AQ4 is part of the Modicon TM3 modular I/O system, allowing it to be combined with other TM3 series modules for expanded functionality and flexibility.

7. Energy Efficient: Operating with a 24 V DC power supply, the module is energy-efficient, contributing to lower operational costs while maintaining high performance.

8. Cost-Effective Solution: The TM3AQ4 offers a cost-effective solution for controlling analog signals, delivering high-quality performance without the high price tag.

9. Certified for Safety and Environmental Standards: The module is CE, UL, and RoHS certified, ensuring it meets the highest standards for safety, quality, and environmental responsibility.

10. Easy Installation: Designed for DIN rail mounting, the module is easy to install in control panels, making it a user-friendly choice for automation projects.

Frequently Asked Questions (FAQ)

1. What is the operating temperature range of the TM3AQ4?

   • The module operates in the temperature range of -20°C to +60°C.

2. What are the dimensions of the TM3AQ4 module?

   • The module’s dimensions are 90 x 70 x 23.6 mm.

3. How much does the TM3AQ4 module weigh?

   • The TM3AQ4 weighs 0.115 kg.

4. What power supply is required for the TM3AQ4?

   • The module operates with a 24 V DC power supply.

5. What type of output signals does the TM3AQ4 support?

   • The module supports voltage (0-10V) and current (4-20mA) output signals.

6. How many channels does the TM3AQ4 have?

   • The TM3AQ4 has 4 output channels.

7. Is the TM3AQ4 suitable for industrial automation applications?

   • Yes, the TM3AQ4 is ideal for use in industrial automation systems and process control systems.

8. What are some common applications for the TM3AQ4 module?

   • The module is used in energy management, building automation, machine control systems, and data acquisition systems.

9. Is the TM3AQ4 compatible with Schneider Electric PLCs?

   • Yes, the TM3AQ4 integrates seamlessly with Schneider Electric’s Modicon PLC systems.

10. What certifications does the TM3AQ4 have?

    • The TM3AQ4 is CE, UL, and RoHS certified, ensuring it meets international standards for safety and environmental impact.
