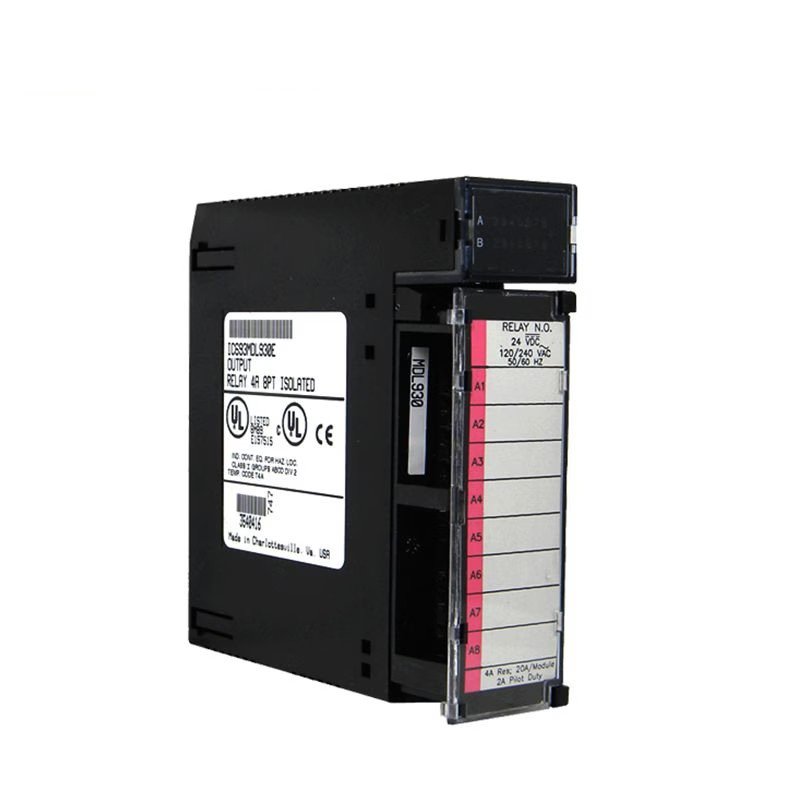

GE Fanuc IC693MDL930 Digital Output Module

The IC693MDL930 is a relay output module from GE Fanuc’s Series 90-30 PLC range, now under Emerson Automation. It provides eight (8) individually isolated Form A relay outputs, each with a maximum current rating of 4 Amps. This module is designed for a variety of industrial applications, including controlling motor starters, solenoid-actuated devices, and indicating lamps. It supports both AC and DC loads, with a wide operating voltage range, making it a versatile solution for discrete output needs in control systems.

Technical Specifications

• Brand: GE Fanuc
• Series: Series 90-30
• Part Number: IC693MDL930
• Product Type: Digital I/O (Discrete Output Module)
• Module Type: Relay Output Module
• Number of Output Channels: 8
• Weight: 1.00 lbs

Electrical Characteristics

• Output Contact Form: Form A (Normally Open)
• Output Voltage Range:
  • 5-30 VDC
  • 5-250 VAC (50/60 Hz)
• Nominal Output Voltage:
  • 24 VDC
  • 120/240 VAC
• Maximum Output Current:
  • 4 Amps for resistive loads per point
  • 2 Amps for pilot duty loads per point
  • 20 Amps total per module for UL installations
• Minimum Output Current: 10 mA
• Maximum Inrush Current: 5 Amps
• Response Time:
  • 15 ms for both On and Off signal transitions
  • Switching Frequency: Up to 20 cycles per minute

Isolation

• Field Side to Logic Side Isolation: 1500 V
• Channel-to-Channel Isolation: 500 V

Power and Consumption

• Current Draw:
  • 6 mA from 5V bus on the backplane (all outputs on)
  • 70 mA from 24V relay bus on the backplane (all outputs on)

Environmental and Physical

• Operating Temperature: 0°C to 50°C (Derates above 50°C)
• Module Width: Single-slot module
• LED Indicators: Yes, for output status
• Fuses: None (user-supplied power required for field devices)

Compatibility

• Compatible with Series 90-30, RX3i, and RX7i PLC systems
• Can be installed in any slot of a 5-slot or 10-slot backplane
• Suitable for controlling motor starters, solenoids, and indicating lamps
