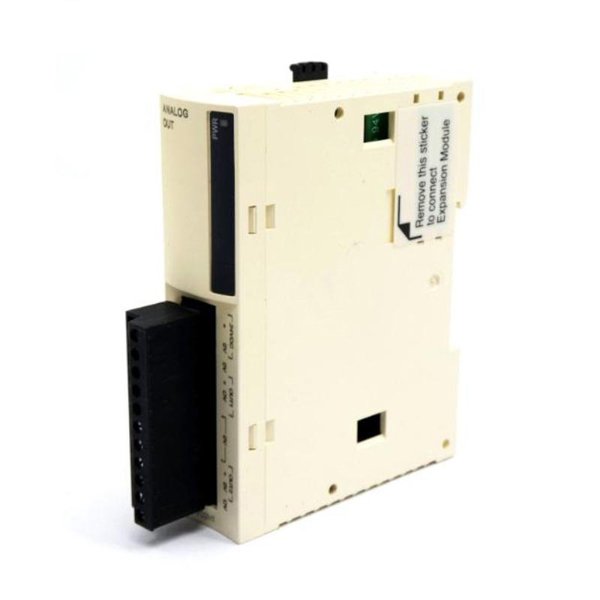

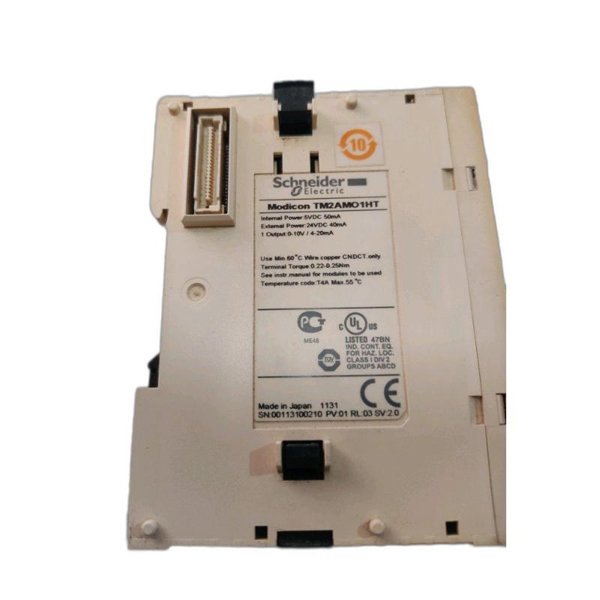

Schneider TM2AM01HT Analog output Module

The Schneider TM2AM01HT is a compact, high-performance modular relay designed for a variety of control and automation applications. This model is part of the Schneider Electric TM2 series, renowned for its flexibility and scalability in industrial control systems. The TM2AM01HT features advanced functionality with ease of integration into different automation environments, ensuring reliable performance across diverse industrial settings.

With its intuitive design and modular capabilities, the TM2AM01HT offers an ideal solution for controlling various processes with precision. Its high-quality components and robust construction ensure longevity and effective operation even in harsh industrial environments.

Product Specifications

Applications

The Schneider TM2AM01HT is widely used in a variety of applications including:

1. Industrial Automation: Used in PLCs, controllers, and other automation equipment for signal processing and control.

2. Machine Control Systems: Enables relay switching for machines requiring automated on/off control functions.

3. Building Management Systems (BMS): Controls lighting, HVAC, and other systems in commercial and residential buildings.

4. Energy Management: Used for energy control applications to optimize power consumption and efficiency in industrial and commercial environments.

5. Process Control: Ensures reliable switching and monitoring of processes in industries such as food and beverage, chemicals, and pharmaceuticals.

Advantages of Schneider TM2AM01HT

1. Modular Design: The modular nature of the TM2AM01HT allows for easy expansion and adaptation to specific automation needs, reducing downtime and improving operational efficiency.

2. Durability: Designed to withstand industrial conditions, it offers high resilience to temperature fluctuations and environmental factors.

3. Space-saving: Its compact size allows for easy integration into systems where space is limited, especially in control panels and machinery.

4. Reliability: Known for high-performance and longevity, the TM2AM01HT guarantees consistent operation, reducing maintenance costs.

5. Versatility: Compatible with a wide range of Schneider Electric control systems, making it adaptable to many industrial automation environments.

6. Easy Installation: The device’s DIN rail mounting system allows quick installation and simplifies panel setup.

7. Energy Efficiency: Helps optimize energy usage, especially in complex industrial and energy management systems.

FAQs

1. What is the voltage requirement for Schneider TM2AM01HT?

   • The TM2AM01HT operates with a 24V DC power supply.

2. What is the maximum current rating of this module?

   • The maximum current rating is 10A.

3. What type of connection does the Schneider TM2AM01HT use?

   • It uses screw terminals for electrical connections.

4. Is the TM2AM01HT suitable for high-temperature environments?

   • Yes, it operates in temperatures ranging from -10°C to +60°C, making it suitable for most industrial settings.

5. Can this module be used in an outdoor environment?

   • The TM2AM01HT has an IP20 rating, meaning it is not suitable for outdoor use but is perfect for indoor applications in controlled environments.

6. How is the TM2AM01HT mounted?

   • It is designed to be mounted on a DIN rail, facilitating easy installation and system integration.

7. Is the TM2AM01HT compatible with other Schneider Electric modules?

   • Yes, it is fully compatible with a wide range of Schneider Electric control modules, ensuring seamless integration.

8. What is the weight of the TM2AM01HT?

   • The module weighs 0.085 kg.

9. Can the TM2AM01HT be used in a process control system?

   • Yes, it is ideal for process control and can be used in systems that require precise switching functions.

10. What is the expected lifespan of the Schneider TM2AM01HT?

• With its robust design, the TM2AM01HT offers a long lifespan, particularly under normal operating conditions, reducing the need for frequent replacements.
