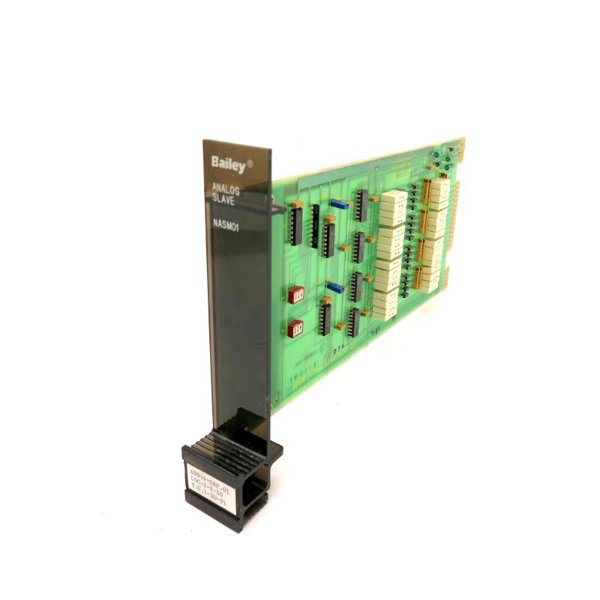

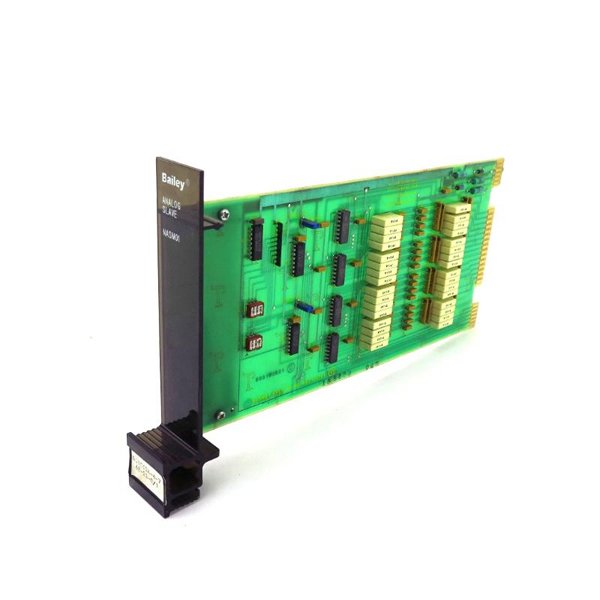

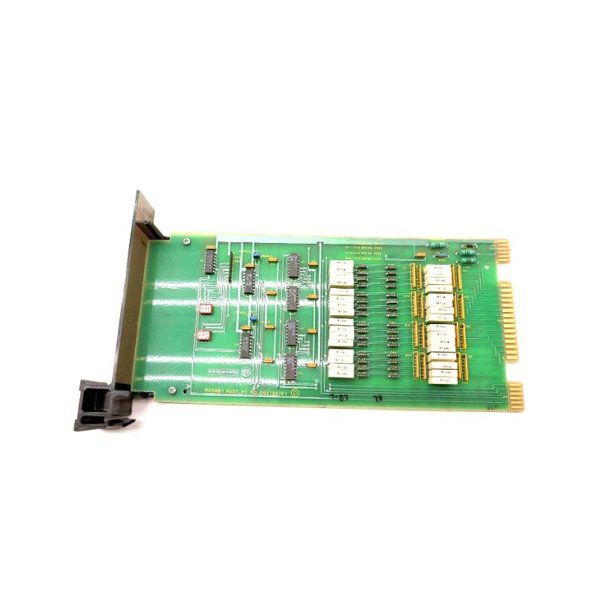

ABB Bailey NASM01 Analog Slave Module

The ABB Bailey NASM01 is an analog input module designed for the Bailey Net 90 and Infi 90 Distributed Control Systems (DCS). It facilitates the acquisition of analog signals from field devices, converting them into digital data for processing within the control system. This module is integral in monitoring various process variables such as temperature, pressure, and flow, ensuring accurate and reliable data collection for industrial automation applications.

Product Specifications

Applications

The NASM01 module is utilized across various industries for precise analog signal acquisition:

• Power Generation: Monitoring parameters like turbine temperatures and generator voltages.

• Oil & Gas: Tracking pressure and flow rates in pipelines and processing units.

• Chemical Processing: Measuring concentrations, temperatures, and reaction rates.

• Water Treatment: Monitoring pH levels, turbidity, and chemical dosing.

• Manufacturing: Supervising machine temperatures and operational voltages.

Product Advantages

• Seamless Integration: Designed specifically for compatibility with Bailey Net 90 and Infi 90 systems.

• Reliable Performance: Ensures consistent and accurate analog signal processing.

• Compact Design: Space-efficient form factor suitable for standard rack installations.

• Durability: Built to withstand industrial environments.

FAQ

1. How many analog input channels does the NASM01 support?

   The exact number of analog input channels is determined by the system configuration; however, NASM01 typically supports multiple channels designed to handle low-level analog signals from field devices.

2. What types of analog signals can the NASM01 interpret?

   It is capable of handling standard industrial analog signals such as 4–20 mA, 0–10 VDC, and thermocouple or RTD inputs when configured accordingly.

3. Is the NASM01 module hot-swappable in a live system?

   No. The NASM01 is not designed to be hot-swapped. The system should be powered down before inserting or removing the module to prevent damage or data corruption.

4. Does the NASM01 support signal isolation?

   Yes, the NASM01 includes isolation between channels and system ground to prevent signal interference and ensure data integrity in electrically noisy environments.

5. Can the NASM01 detect sensor failures such as open or short circuits?

   Yes. The module includes diagnostic features that can identify abnormal conditions like open loops, sensor faults, or signal loss depending on the field device used.

6. How does the NASM01 handle signal conversion accuracy?

   It utilizes high-resolution A/D converters to ensure accurate signal digitization. Precision depends on factors like input range configuration and system calibration.

7. What are the common failure modes of the NASM01?

   Typical failure modes include component degradation due to overvoltage, signal drift caused by aging electronics, and communication failures with the master controller.

8. How is calibration performed on the NASM01 module?

   Calibration is done through the system’s engineering interface using ABB’s configuration tools, ensuring proper scaling and signal range interpretation.

9. What is the recommended grounding method for optimal performance?

   Proper shielding and single-point grounding are critical to reduce electrical noise. The signal cables should be grounded at one end only to prevent ground loops.

10. Can the NASM01 be configured for different signal ranges per channel?

    Yes. Each channel can be independently configured for specific signal ranges and input types depending on the application needs and system setup.
