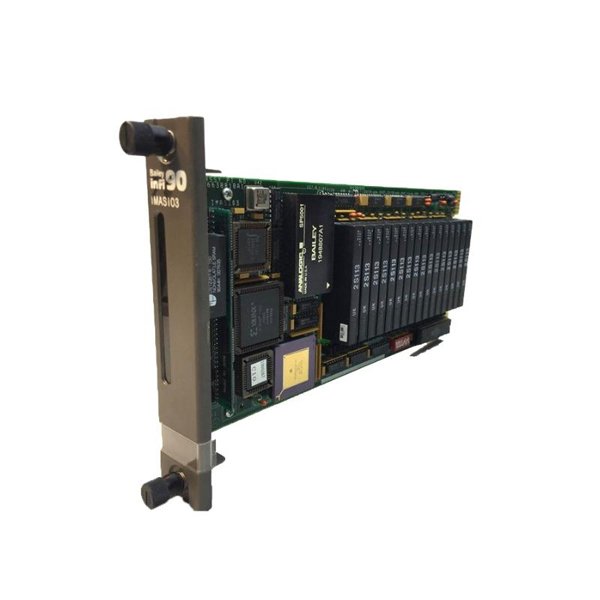

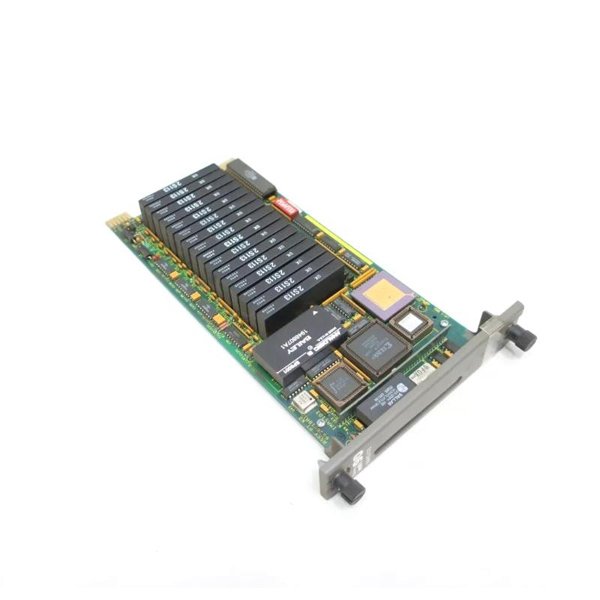

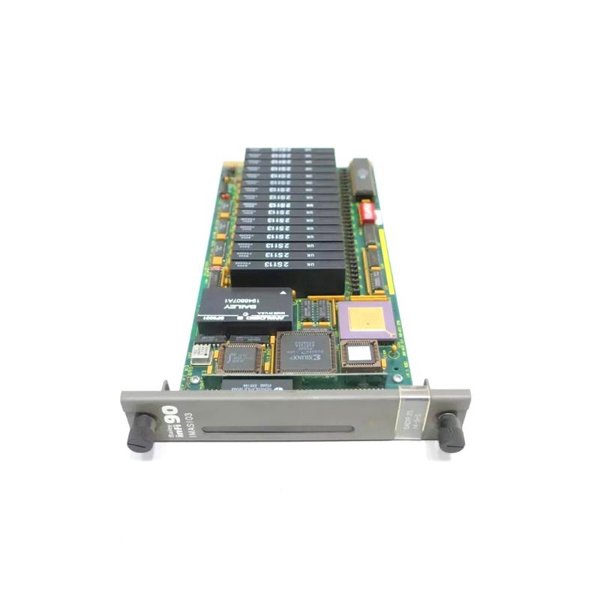

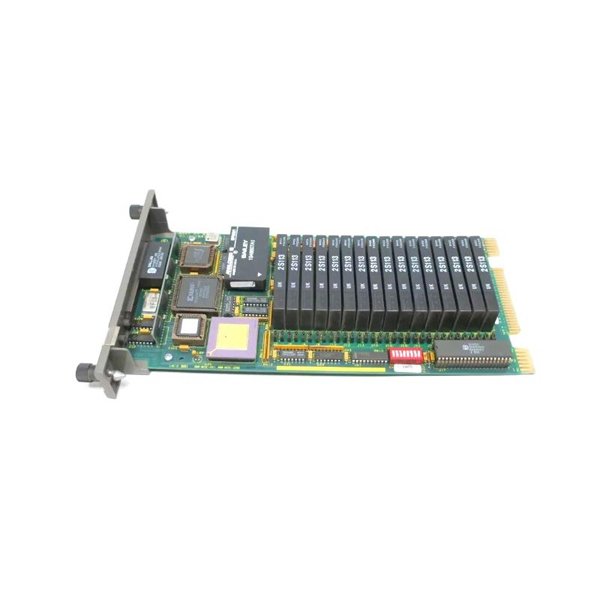

ABB Bailey IMASI03 Analog Input Slave Module

The ABB Bailey IMASI03 is a sophisticated analog input slave module designed to seamlessly interface with ABB’s Distributed Control Systems (DCS). This module provides high precision and reliability in acquiring analog signals from various field devices, converting them into digital values for further processing by the system. It is ideal for applications that require precise control and monitoring of industrial processes where accurate analog signal measurements are crucial. The IMASI03 module supports a variety of signal types and is highly compatible with other ABB control modules, making it an integral part of the automation system.

Product Specifications

Product Applications

The IMASI03 Analog Input Slave Module is commonly used in industries where continuous data acquisition and monitoring of analog signals are needed, including:

• Process Control: Monitoring temperature, pressure, flow, and other process variables in chemical, oil & gas, and pharmaceutical industries.
• Energy Management: Collecting data from electrical meters, transformers, and other power-related devices in power plants.
• Environmental Monitoring: Collecting environmental data such as humidity, wind speed, and air quality.
• Factory Automation: Used in manufacturing facilities to interface with various sensors in automated processes.

Advantages

1. High Accuracy: The IMASI03 module offers excellent accuracy in converting analog signals into digital values, ensuring precise control and measurement.
2. Wide Compatibility: It is compatible with a wide range of sensors and actuators, making it versatile for various industrial applications.
3. Robust Design: Built to withstand harsh industrial environments, it offers reliable performance even in extreme temperatures.
4. Modular System: Its integration with ABB’s DCS systems enhances the scalability and flexibility of industrial automation systems.
5. Cost-Effective: The IMASI03 module provides high-performance features at a competitive price point, delivering great value for money.
6. Easy Installation: The module is designed for easy mounting on DIN rails, simplifying installation and maintenance processes.
7. Enhanced Communication: Utilizing Modbus RTU, it ensures seamless communication with other control systems and devices.
8. Wide Input Range: It supports both voltage and current input signals, allowing for greater flexibility in input signal types.
9. Energy Efficient: The module operates efficiently with minimal power consumption, reducing overall energy usage.
10. Field-Proven Reliability: As part of the ABB Bailey series, it inherits the brand’s renowned reliability and performance in demanding industrial environments.

FAQ

1. What is the IMASI03 module used for?

   • The IMASI03 is an analog input slave module designed for use in ABB’s Distributed Control Systems (DCS). It acquires and converts analog signals to digital data for processing by the system.

2. What types of input signals can the IMASI03 module handle?

   • The module can handle both current (4-20 mA) and voltage (0-10 VDC) input signals.

3. How many input channels does the IMASI03 module support?

   • The IMASI03 module supports 8 input channels.

4. What is the operating temperature range of the IMASI03 module?

   • The module operates in a temperature range from -40°C to +70°C.

5. What is the power supply requirement for the IMASI03 module?

   • The module operates on a 24 VDC power supply.

6. Is the IMASI03 module compatible with other ABB control systems?

   • Yes, it is fully compatible with ABB’s DCS systems and can be integrated with other ABB control modules.

7. What is the communication protocol used by the IMASI03 module?

   • The module uses Modbus RTU for communication with other devices.

8. What are the dimensions of the IMASI03 module?

   • The module measures 279.4 x 355.6 x 55.4 mm.

9. Can the IMASI03 module be mounted on a DIN rail?

   • Yes, the IMASI03 module is designed to be mounted on a DIN rail for easy installation.

10. What is the weight of the IMASI03 module?

    • The module weighs 1.146 kg.
