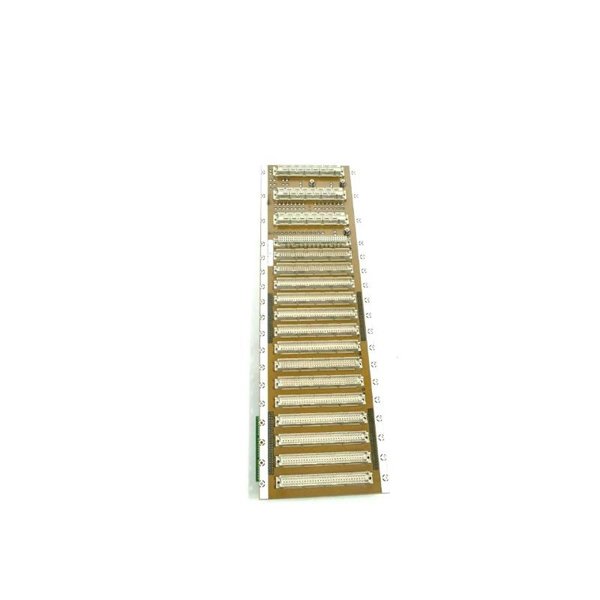

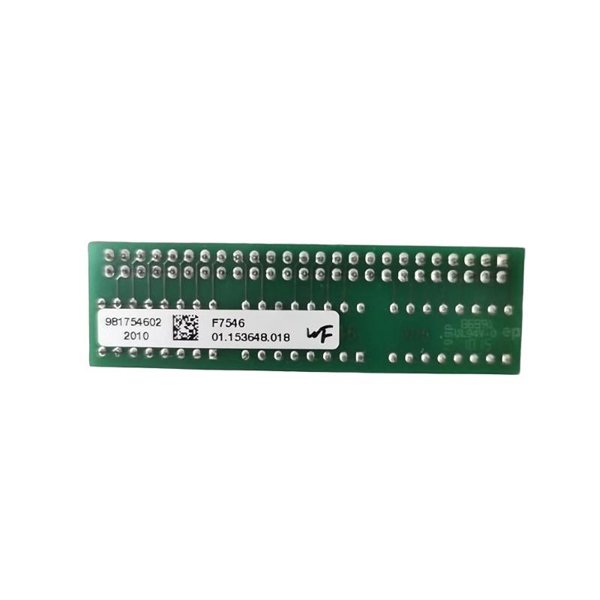

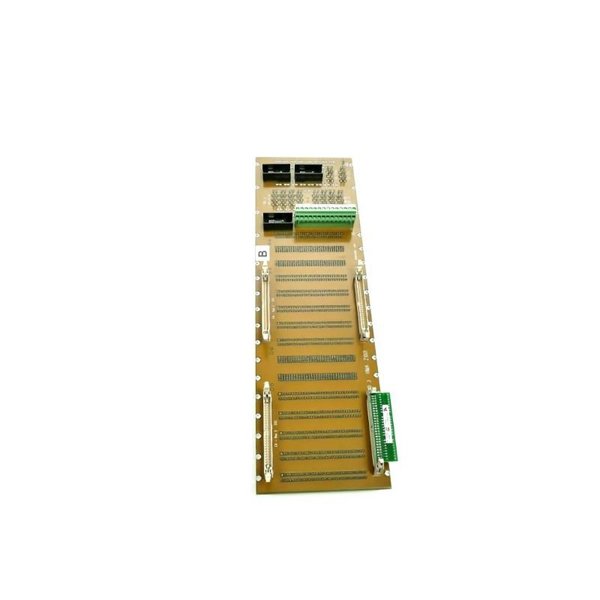

Hima F7546 I/O Bus Coupling Module
Manufacturer:HIMA
Product Number:F7546
Product Type:I/O Bus Coupling Module
Origin:Germany
Dimensions:100 x 50 x 20 mm
Weight:0.56 kg
Views:80
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The HIMA F7546 I/O Bus Coupling Module is a robust, high-integrity interface device specifically developed to facilitate seamless communication between input/output modules and the central controller within a HIMA safety system architecture. Serving as a critical link between the field I/O layer and the processor units, this coupling module ensures fast, secure, and fault-tolerant data transfer—making it an essential component in any safety-integrated automation setup.
Engineered for compatibility with HIMA’s advanced safety systems such as HIMax and HIQuad X, the F7546 module supports decentralized I/O architectures and allows for modular expansion without compromising performance or safety. Its high-speed backplane interface and built-in diagnostics make it a preferred choice for systems requiring redundancy and uninterrupted operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | F7546 |
| Manufacturer | HIMA |
| Function | I/O Bus Coupling Module |
| Communication Type | Internal bus coupling between CPU and I/O modules |
| Supported Systems | HIMax, HIQuad X, other HIMA modular systems |
| Data Transmission Rate | High-speed internal bus (typically>10 Mbps) |
| Redundancy Support | Yes (supports redundant configurations) |
| Diagnostic Capability | Integrated diagnostics with fault status LEDs |
| Operating Voltage | 24 V DC nominal |
| Power Consumption | Approx. 3.5 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | < 95%, non-condensing |
| Mounting Type | DIN rail |
| Housing Material | Flame-retardant industrial-grade thermoplastic |
| Dimensions (W x H x D) | 100 x 50 x 20 mm |
| Weight | 0.56 kg |
| Certifications | SIL 3 (IEC 61508), CE, ATEX compliant |
Product Applications
The F7546 is widely used in industries where functional safety and real-time process control are mandatory. Its role as an I/O bus coupler enables flexible and decentralized system designs. Common application sectors include:
Oil & Gas Refineries
Used to interlink central controllers with multiple I/O racks distributed across hazardous process zones.
Chemical and Petrochemical Plants
Enables safe control of distributed safety functions across various sections of the plant.
Power Generation (Thermal, Nuclear, Hydro)
Supports turbine control, boiler management, and emergency shutdown systems.
Pharmaceutical and Biotech Industries
Facilitates modular plant architectures with validated safe zones.
Railway Automation Systems
Ensures secure signal transmission in onboard and wayside safety equipment.
Product Advantages
Reliable Communication Backbone
Provides high-speed and interference-resistant communication between controller and I/O modules, ensuring real-time responsiveness.
Redundancy and Hot-Swappable Design
Fully supports redundant system architecture and allows hot-swapping without process interruption.
Diagnostic and Monitoring Support
Onboard LED indicators and system diagnostics enable rapid fault localization and maintenance.
Compact and Modular
Space-saving DIN-rail mounting supports modular expansions, ideal for complex industrial panels.
Certified Functional Safety
Fully certified for SIL 3, suitable for the most safety-sensitive environments and applications.
Backward Compatibility
Can be deployed alongside legacy systems within the HIMA ecosystem with minimal reengineering.
Frequently Asked Questions (FAQ)
Q: What is the primary function of the F7546 module?
A: It serves as a coupling interface between the central CPU and decentralized I/O modules, managing high-speed internal data communication.
Q: Can the F7546 be used in a redundant system configuration?
A: Yes, it fully supports redundant installations, ensuring continuous operation even if one coupling path fails.
Q: Is hot-swapping supported for this module?
A: Absolutely. The F7546 is designed to be hot-swappable in supported systems like HIMax, minimizing downtime.
Q: Does this module require configuration via software?
A: Minimal configuration is needed. Most settings are auto-detected by HIMA’s engineering tools upon system initialization.
Q: How do I know if the module has failed or encountered an error?
A: Integrated status LEDs and system diagnostics will indicate any fault or failure condition clearly.
Q: What happens to the process data if the F7546 fails?
A: In redundant configurations, the backup path will take over seamlessly. In non-redundant setups, safe-state behavior is triggered.
Q: What kind of maintenance is recommended for this module?
A: Visual inspection, diagnostics check via software, and verifying field connections every 12 months is standard.
Q: Is there a maximum number of I/O modules this coupler can connect to?
A: This depends on the overall system configuration, but the F7546 supports typical HIMA bus loads efficiently.
Q: Can I use F7546 with HIQuad classic systems?
A: No, F7546 is intended for HIMax and HIQuad X platforms. Legacy systems require different coupling modules.
Q: Is the F7546 module ATEX approved for use in hazardous areas?
A: Yes, it meets ATEX standards, allowing it to be installed in appropriately rated enclosures in Zone 2/22 environments.
