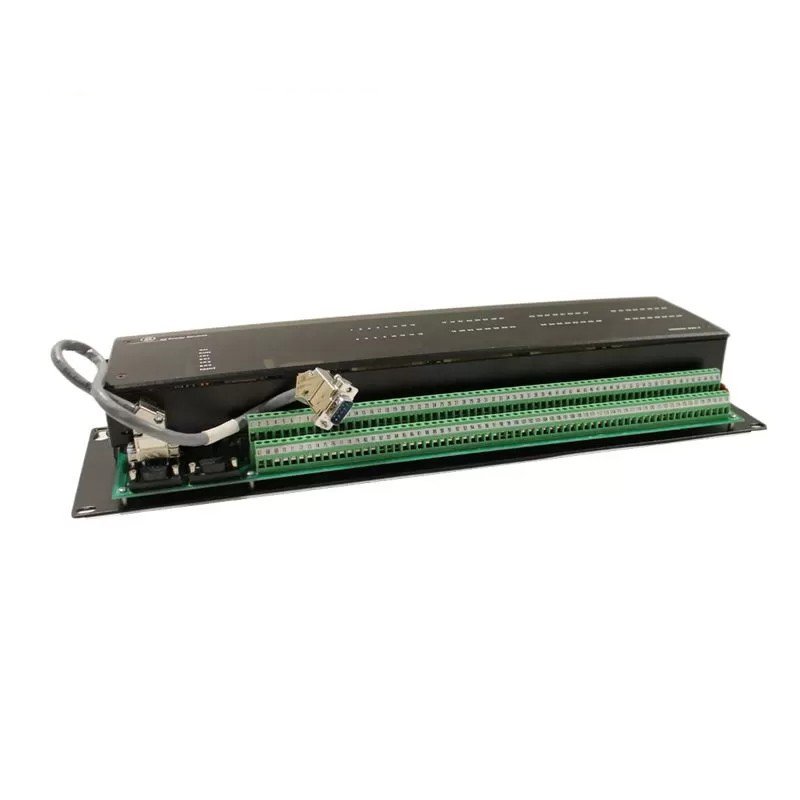

GE Fanuc WESDAC D20S Versatile Control Output Module

The GE Fanuc WESDAC D20S is a versatile control output module designed for industrial automation. It efficiently converts control signals into physical outputs, such as those required to operate relays or transistors. This module ensures a reliable interface between the control system and field devices.

Key Features and Specifications

• Modular Design: The WESDAC D20S consists of two detachable modules: WESDAC D20K (top) and WESTERM D20K (bottom). This design simplifies installation and maintenance.
• Data Processing: The WESDAC D20K module handles data processing and communicates with the main D20 processor.
• Terminal Connections: The WESTERM D20K module features terminal blocks for field wiring. It includes connections to the D.20 network, a 9600 baud RS232 maintenance port, and the WESDAC D20K module address.
• Output Flexibility: This module supports both relay and transistor outputs, offering versatile options for various applications.
• Multiple Output Channels: It provides numerous output channels, allowing control of multiple devices or processes simultaneously.
• Voltage and Current Ratings: The module accommodates various voltage levels and handles specified current loads.
• Rugged Construction: Built to withstand harsh industrial environments.
• Mounting Options: It can be mounted on a DIN rail or a panel.

Applications

The GE Fanuc WESDAC D20S is used across multiple industries, including:

• Manufacturing: Controls production lines, machines, and processes.
• Process Control: Monitors and regulates industrial processes.
• Building Automation: Manages HVAC systems, lighting, and security systems.
• Other Industrial Applications: Suitable for any application requiring reliable and flexible control outputs.

Benefits

• Enhanced Reliability: Constructed with high-quality components for long-term operation.
• Flexibility: Adaptable to various applications due to its modular design and diverse output options.
• Ease of Use: Installation and configuration are straightforward.
• Compatibility: Integrates seamlessly with other GE Fanuc automation products.
