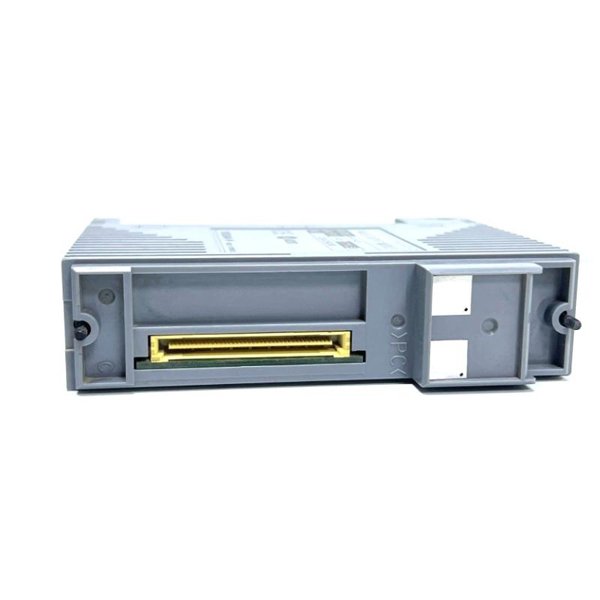

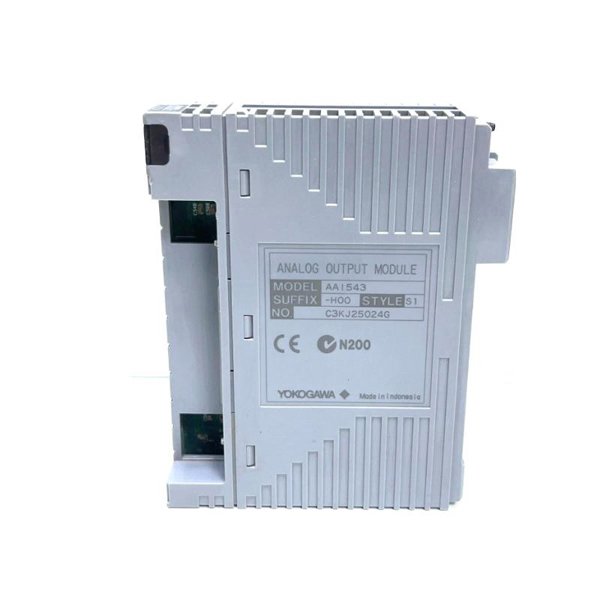

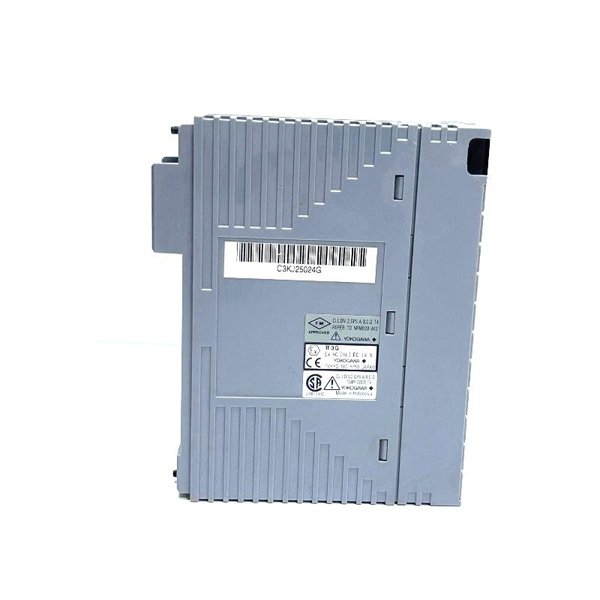

Yokogawa AAI543-H00/K4S00 Analog Output Module
Manufacturer:Yokogawa
Product Number:AAI543-H00/K4S00
Product Type:Analog Output Module
Origin:Japan
Dimensions:107.5 × 32.8 × 130 mm
Weight:0.4 kg
Views:32
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa AAI543-H00/K4S00 Analog Output Module is designed for high-precision signal output in industrial control systems. It provides reliable and accurate conversion of digital control signals into analog outputs for driving field devices such as control valves and actuators. This module ensures stable performance, easy integration with Yokogawa’s control platforms, and long service life in demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Yokogawa |
| Model | AAI543-H00/K4S00 |
| Function | Analog Output Module |
| Output Type | Current/Voltage (Configurable) |
| Number of Output Channels | 8 channels |
| Resolution | 12-bit |
| Output Range | 4–20 mA / 1–5 V |
| Isolation | Channel-to-channel and channel-to-bus |
| Power Supply | 24 V DC |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions (W × H × D) | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
Applications
-
Distributed control systems (DCS) in process industries
-
Control of valves, dampers, and actuators
-
Power plant automation systems
-
Oil and gas process control
-
Chemical and petrochemical plant operations
-
Water treatment and utility monitoring systems
Advantages
-
High accuracy and stability for precise process control
-
Robust isolation for improved signal integrity
-
Flexible configuration for various output ranges
-
Compact design for space-efficient installation
-
Long service life with industrial-grade reliability
-
Seamless integration with Yokogawa control systems
FAQ
Q1: What is the function of the AAI543-H00/K4S00 module?
A1: It converts digital control signals into analog outputs to drive field devices such as valves and actuators.
Q2: How many output channels does it have?
A2: It provides 8 independent analog output channels.
Q3: What output signal ranges are supported?
A3: The module supports 4–20 mA and 1–5 V output ranges.
Q4: Is the module isolated?
A4: Yes, it features channel-to-channel and channel-to-bus isolation for safety and signal integrity.
Q5: What is the resolution of the output?
A5: The module offers a 12-bit resolution for precise control.
Q6: What type of systems can it be used with?
A6: It is designed for use in Yokogawa DCS platforms and compatible control systems.
Q7: What is the operating temperature range?
A7: It operates within 0°C to +55°C.
Q8: Does it support current and voltage outputs simultaneously?
A8: No, the output mode must be configured for either current or voltage.
Q9: What is its physical size?
A9: The dimensions are 107.5 × 32.8 × 130 mm.
Q10: What is its weight?
A10: The weight of the module is 0.4 kg.
