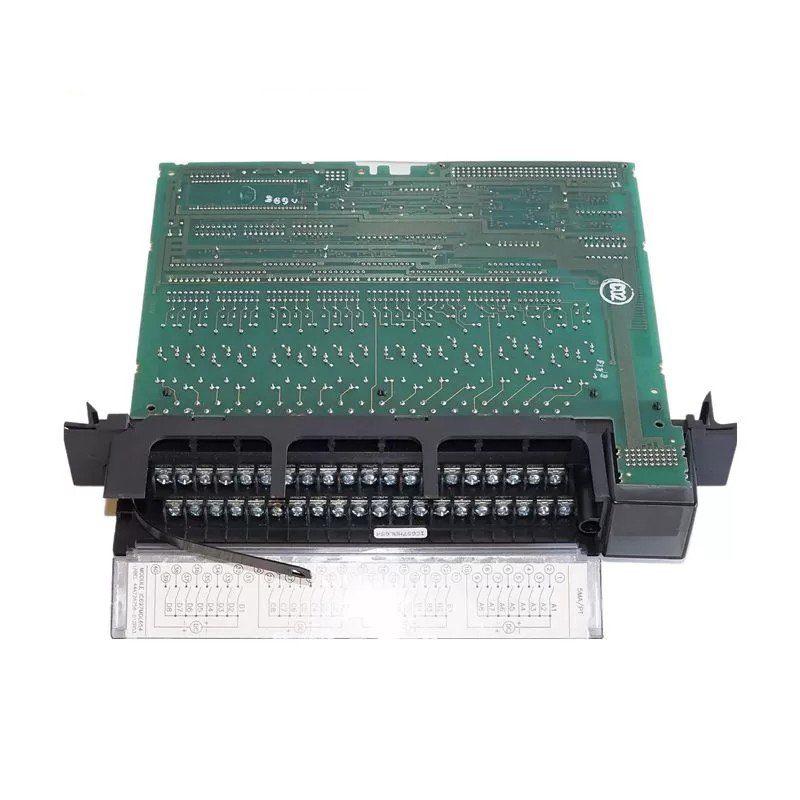

GE Fanuc IC697MDL654 Discrete Input Module

The GE Fanuc IC697MDL654 is a discrete input module designed for industrial automation applications. It is part of the Series 90-70 family and widely used in programmable logic controllers (PLCs).

Key Features

• 32-point discrete input: Accepts up to 32 digital inputs, ideal for various applications.
• 48VDC voltage: Operates with a 48VDC power supply, ensuring stable performance.
• Positive/negative logic: Supports both positive and negative logic configurations for flexibility.
• Four isolated groups: Divides the 32 points into four isolated groups, each with 8 points.
• Proximity switch compatible: Works with different types of proximity switches, offering versatility.
• Logic compatibility: Easily configures to function with either positive or negative logic systems.

Applications

The IC697MDL654 module suits a broad range of industrial automation applications. It is frequently used in:

• Machine control: Monitors machine parameters like limit switches, safety interlocks, and sensor inputs.
• Process control: Ensures process systems can accurately track discrete inputs from sensors and devices.
• Automation systems: Provides essential digital input functionality to various automated systems.

Technical Specifications

• Series: 90-70
• Model: IC697MDL654
• Number of inputs: 32
• Voltage: 48VDC
• Logic: Positive/negative
• Isolation: Four isolated groups of 8 points each
• Compatibility: Proximity switch compatible
• Mounting: DIN rail
