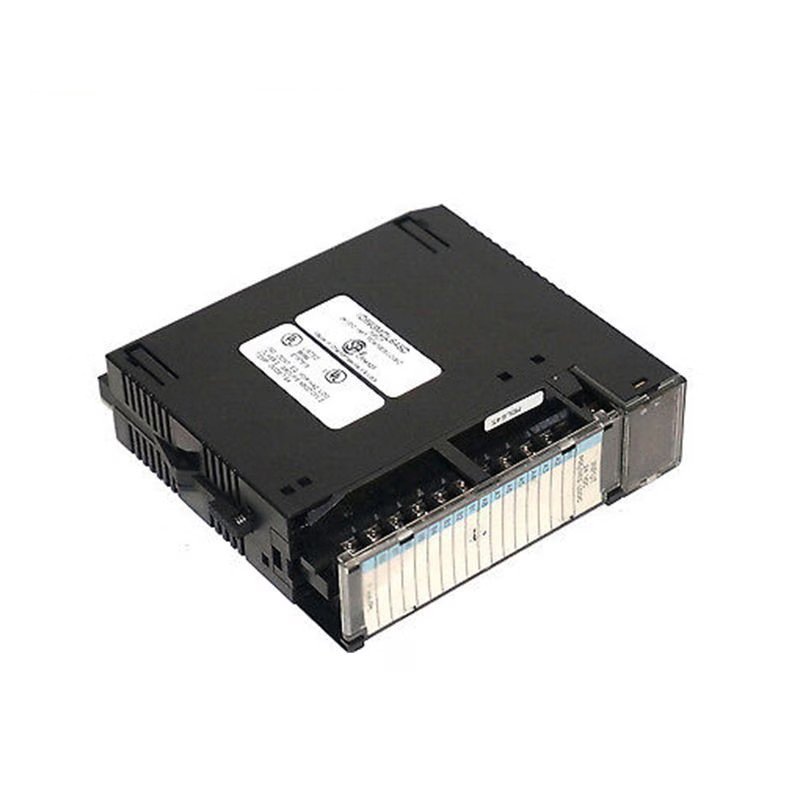

The GE Fanuc IC693MDL645C is a 24V DC Positive/Negative Logic Input Module designed for use in GE Fanuc’s 90-30 Series Programmable Logic Controllers (PLC). It features 16 input points, making it suitable for a variety of industrial applications. The module supports both positive and negative logic, offering flexibility in input device compatibility. It provides visual feedback through LED indicators for each input point and includes detailed wiring information to simplify installation.

Technical Specifications

• Part Number: IC693MDL645C
• Manufacturer: GE Fanuc
• Product Type: 24V DC Positive/Negative Logic Input Module
• Rated Voltage: 24V DC
• Input Voltage Range: 0 to +30V DC
• Number of Inputs: 16 inputs (one group with a common terminal)
• Isolation: 1500 volts between the field side and logic side
• Input Current: 7 mA (typical) at rated voltage
• On-State Voltage: 11.5 to 30V DC
• Off-State Voltage: 0 to +5V DC
• On-State Current: Minimum 3.2 mA
• Off-State Current: Maximum 1.1 mA
• On Response Time: 7 ms (typical)
• Off Response Time: 7 ms (typical)
• Power Consumption: 80 mA (from 5V bus), 125 mA (from isolated 24V bus or user-supplied power)
• Operating Temperature: 0°C to 60°C
