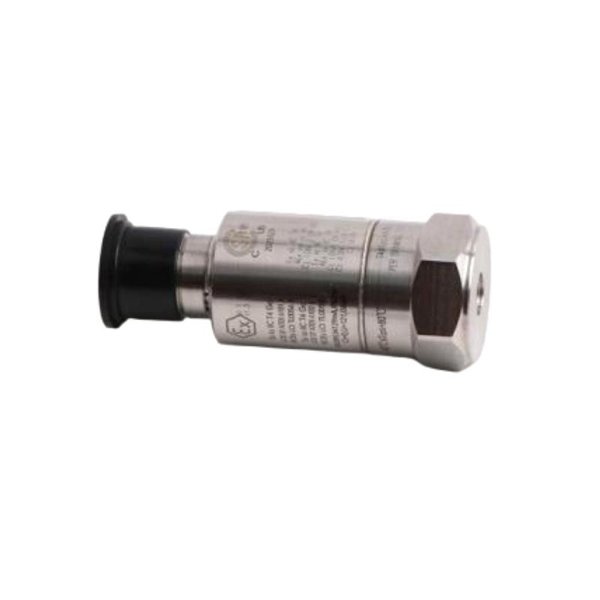

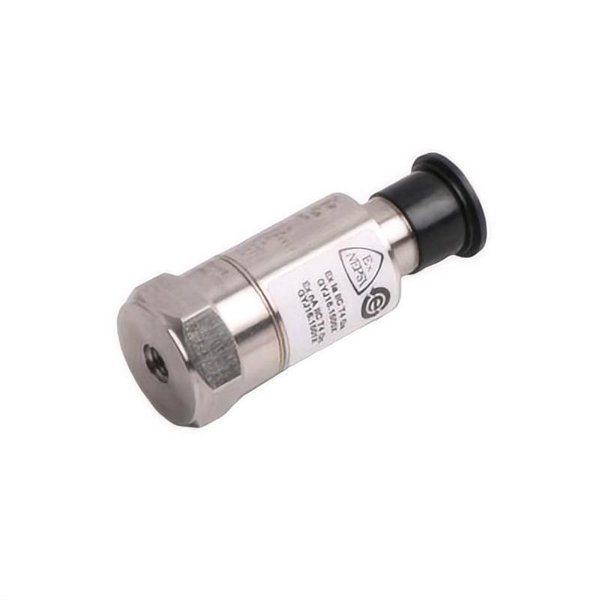

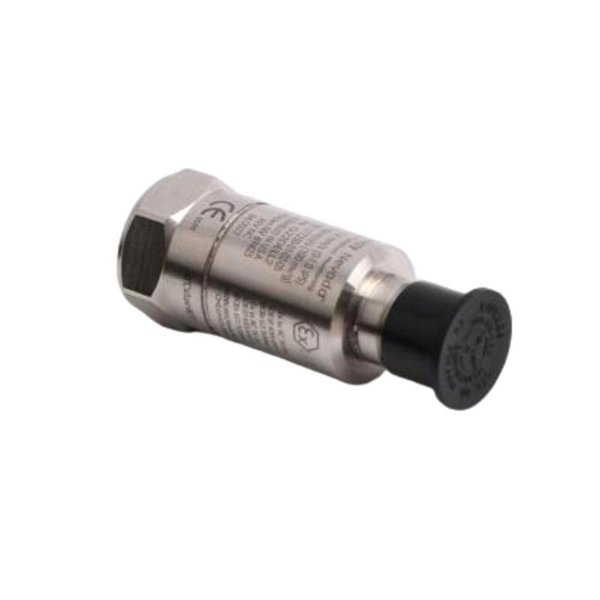

Bently Nevada 177230-01-02-CN Seismic Transmitter

The Bently Nevada 177230-01-02-CN Seismic Transmitter is an advanced monitoring device developed to deliver precise and reliable seismic vibration measurements in industrial applications. As part of the Bently Nevada 177230 series, this model is specifically tailored for the Chinese market, offering compliance with local standards and certifications while maintaining the high performance associated with the brand.

This transmitter converts casing or structural vibration into a proportional 4–20 mA output, enabling seamless integration with Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and machinery protection systems. Its robust design, stable performance, and extended operating range make it a valuable tool for predictive maintenance strategies in sectors such as power generation, oil & gas, petrochemicals, and heavy industry.

By providing continuous vibration data, the 177230-01-02-CN helps operators detect early signs of imbalance, misalignment, looseness, or mechanical faults, thereby reducing unplanned downtime and safeguarding critical equipment.

Product Parameters

Product Applications

The 177230-01-02-CN Seismic Transmitter is widely deployed in industrial monitoring applications where casing or structural vibration is a key diagnostic parameter. Typical applications include:

• Power Generation – Continuous vibration monitoring of steam turbines, hydro turbines, and gas turbines.

• Oil & Gas Operations – Protecting compressors, pumps, and fans operating in high-demand environments.

• Petrochemical Industry – Ensuring operational safety and performance of critical rotating machines.

• General Industrial Machinery – Monitoring motors, gearboxes, blowers, and fans.

• Structural and Foundation Vibration – Tracking vibration at machine foundations, piping systems, and supporting structures.

• Automation and Control Systems – Feeding vibration data into DCS/PLC systems for automated condition monitoring and shutdown logic.

Product Advantages

• Precision Monitoring – Provides accurate seismic vibration readings within a broad frequency range.

• Local Compliance – Fully aligned with Chinese certifications, ensuring regulatory acceptance.

• Rugged Construction – Resistant to harsh environments, suitable for heavy-duty industrial use.

• Seamless System Integration – Standardized 4-20 mA output for easy connection with control systems.

• Enhanced Machinery Protection – Supports predictive maintenance strategies by detecting early vibration anomalies.

• Extended Temperature Range – Operates reliably across wide environmental conditions.

• Proven Bently Nevada Reliability – Backed by decades of expertise in machinery protection technologies.

FAQ

1. What type of vibration does the 177230-01-02-CN measure?

   It measures absolute casing or structural vibration, expressed as velocity or acceleration.

2. What is the output signal configuration of this transmitter?

   It provides a 4–20 mA current loop output proportional to vibration level.

3. How does it integrate into control systems?

   The transmitter directly connects to DCS, PLC, or machinery protection systems via its 4–20 mA output.

4. What frequency range does the unit cover?

   The typical response range is 0.5 Hz to 200 Hz, suitable for machinery casing vibration analysis.

5. Does the device require external signal conditioning?

   No, the transmitter includes internal signal processing, providing a conditioned 4–20 mA output.

6. Is the unit factory-calibrated?

   Yes, it is factory-configured to deliver accurate proportional output; field calibration can also be performed if needed.

7. What power supply is required for operation?

   It operates with a DC supply between 18 VDC and 32 VDC.

8. Can the transmitter be used in hazardous environments?

   With appropriate housing and certifications, it can be deployed in hazardous or classified areas.

9. How does this model differ from standard 177230 transmitters?

   The 177230-01-02-CN is adapted for the Chinese market, with certifications and standards tailored for local compliance.

10. How does this device support predictive maintenance programs?

    By continuously providing vibration data, it enables early fault detection, helping to schedule maintenance before failures occur.
