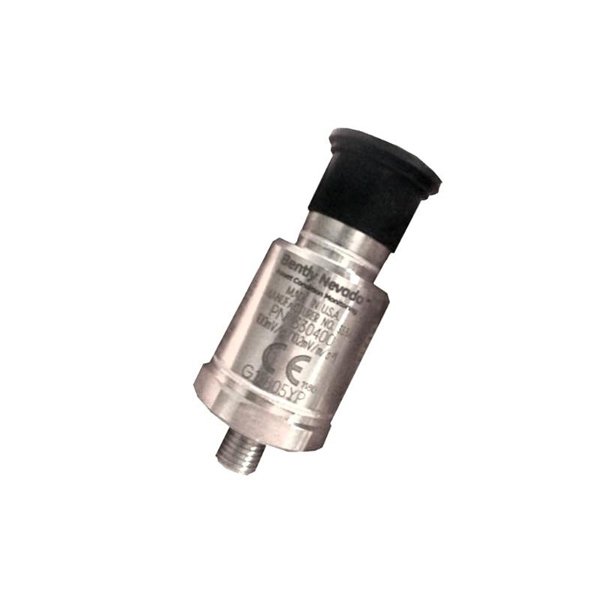

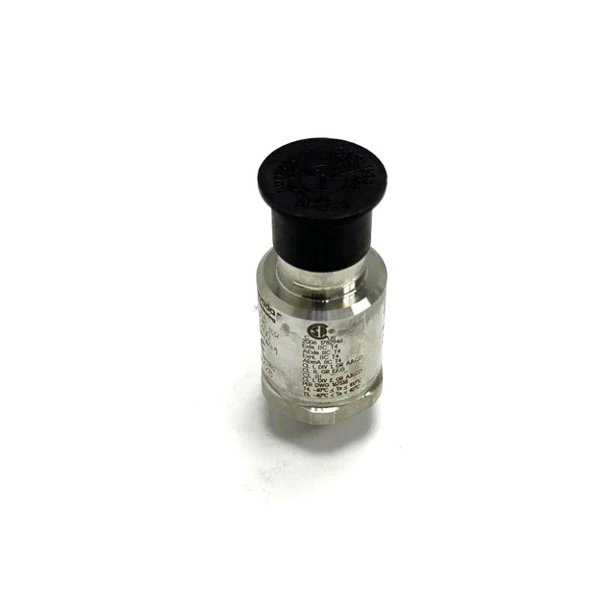

Bently Nevada 330400-02-05 Accelerometer Acceleration Transducer
Manufacturer:Bently Nevada
Product Number:330400-02-05
Product Type:Accelerometer Acceleration Transducer
Origin:USA
Sensor Head Diameter:23 mm
Weight:0.1kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330400-02-05 Accelerometer is designed for high-reliability vibration monitoring in industrial rotating machinery. It offers precise casing acceleration measurements—ideal for gear mesh or bearing housing applications. Compliant with API 670 standards, this sensor provides 100 mV/g sensitivity and is ruggedly built for demanding environments.
Applications
-
Gear mesh monitoring
-
Casing vibration analysis
-
Bearing housing vibration diagnostics
-
Critical rotating equipment in oil & gas, power generation, and refining
-
Machinery protection and predictive maintenance systems
Key Advantages
-
High sensitivity: 100 mV/g ±5% for accurate vibration analysis
-
Wide frequency response: 10 Hz to 15 kHz (±3 dB)
-
Rugged stainless steel housing for harsh environments
-
Hermetically sealed and IP68-rated for dust and moisture protection
-
CSA, ATEX, and IECEx certified for hazardous areas
Technical Specifications
| Parameter | Value |
|---|---|
| Sensitivity | 10.2 mV/m/s² (100 mV/g) ±5% |
| Acceleration Range | 490 m/s² (50 g) peak |
| Frequency Response | 10 Hz to 15 kHz (±3 dB) |
| Amplitude Linearity | ±1% to 490 m/s² (50 g) |
| Broadband Noise Floor | 0.039 m/s² (0.004 g) rms |
| Mounted Resonant Frequency | > 30 kHz |
| Temperature Range | -55°C to +121°C (-67°F to +250°F) |
| Shock Survivability | 49,050 m/s² (5000 g) peak |
| Magnetic Susceptibility | <2.21 mm/s²/gauss |
| Output Bias Voltage | -8.5 ± 0.5 Vdc |
| Input Voltage | -24 ± 0.5 Vdc |
| Bias Current | 2 mA nominal |
| Connector | 3-pin MIL-C-5015 |
| Case Material | 316L Stainless Steel |
| Sensor Head Diameter | 23 mm |
| Sensor Height (incl. stud) | 59 mm |
| Weight (without cable) | 100 g (0.1 kg) |
| Mounting Torque | 4.1 N·m (3.0 ft·lb) |
| IP Rating | IP68 |
| Certification | CSA, ATEX, IECEx (Ex ia IIC T4, etc.) |
FAQs
Q1: What is the primary use of the 330400-02-05 Accelerometer?
A1: It is used for casing acceleration measurements in rotating machinery for condition monitoring and protection.
Q2: Is the sensor suitable for hazardous areas?
A2: Yes, it holds multiple certifications including CSA, ATEX, and IECEx for use in hazardous locations.
Q3: What is the output signal type?
A3: The sensor provides a dynamic voltage output of 100 mV/g.
Q4: What cable length can be used without signal loss?
A4: Up to 305 meters (1000 feet) without signal degradation.
Q5: Can this sensor be installed in any orientation?
A5: Yes, the unit allows mounting at any angle.
Q6: Does it include any built-in filtering?
A6: No internal filtering is specified; external filtering should be used if required.
Q7: What connector is used on this accelerometer?
A7: A standard 3-pin MIL-C-5015 receptacle is used.
Q8: What precautions should be taken during installation?
A8: Install on a clean, flat, and rigid surface such as bearing housings, using specified torque to ensure proper coupling.
Q9: What is the expected accuracy range?
A9: Sensitivity accuracy is ±5%, and amplitude linearity is within ±1% to 50 g.
Q10: What maintenance does this transducer require?
A10: Minimal maintenance is needed; periodic checks on cabling and mounting are recommended.
