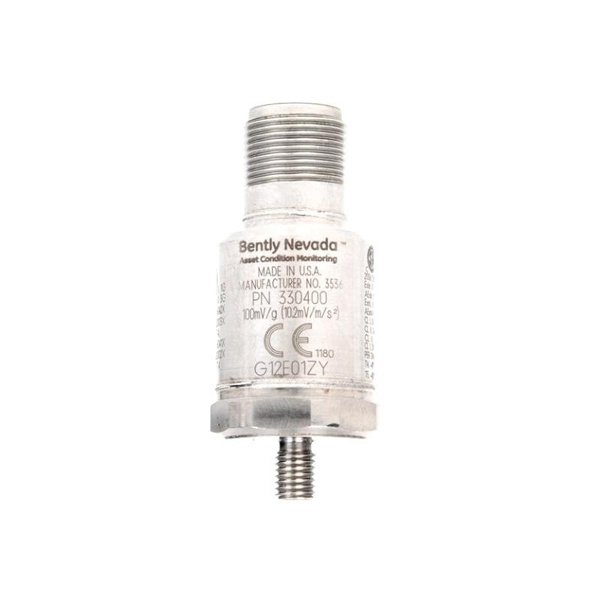

Bently Nevada 330400-01-00 Accelerometer Acceleration Transducer

The Bently Nevada 330400-01-00 Accelerometer is designed for machinery protection applications requiring casing vibration measurements. It is compliant with API 670 standards and offers high sensitivity and reliable performance for gear mesh monitoring and other critical diagnostics.

Product Features

• Sensitivity: 100 mV/g

• Acceleration Range: 50 g peak

• Frequency Response: 10 Hz to 15 kHz

• Case Material: 316L Stainless Steel

• Hermetically sealed and IP68-rated

Applications

• Gear mesh vibration monitoring

• Casing vibration detection on rotating machinery

• API 670-compliant condition monitoring systems

• Turbines, compressors, and motor-driven equipment

Advantages

• High sensitivity ensures accurate acceleration detection

• Wide frequency response for comprehensive diagnostics

• Rugged stainless steel design for harsh environments

• Hermetically sealed case prevents moisture ingress

• Compliant with major industrial certifications for hazardous areas

Technical Specifications

FAQs

Q1: What is the sensitivity of the 330400-01-00 accelerometer?

A1: It offers a sensitivity of 100 mV/g (±5%).

Q2: What is the operating temperature range?

A2: From -55°C to +121°C (-67°F to +250°F).

Q3: Is it compliant with API 670 standards?

A3: Yes, it is designed to meet API 670 standards.

Q4: What is the peak acceleration range supported?

A4: 50 g peak (490 m/s²).

Q5: Can this sensor be used in hazardous locations?

A5: Yes, it is certified for use in hazardous areas including Class I, Div 1.

Q6: What material is used for the sensor housing?

A6: 316L stainless steel.

Q7: Is the sensor waterproof?

A7: The sensor is IP68-rated, indicating it is dust-tight and watertight.

Q8: What type of connector does it use?

A8: A 3-pin MIL-C-5015 receptacle.

Q9: What is the weight of the sensor?

A9: 0.1 kg (100 grams).

Q10: What is the maximum cable length supported?

A10: Up to 305 meters (1000 feet) without signal degradation.
