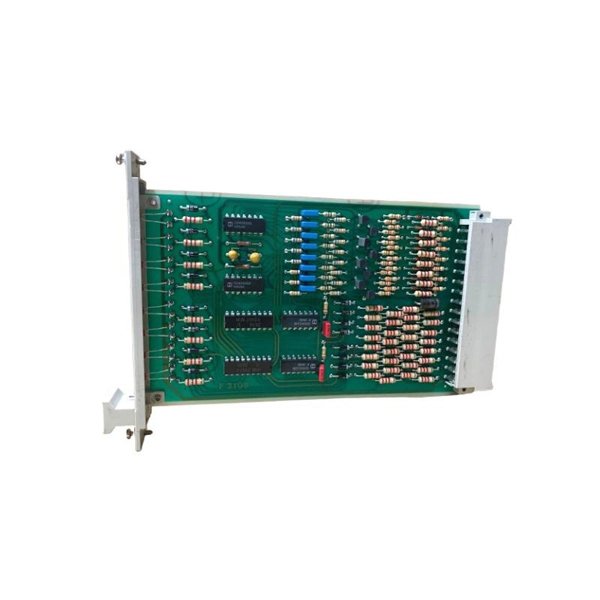

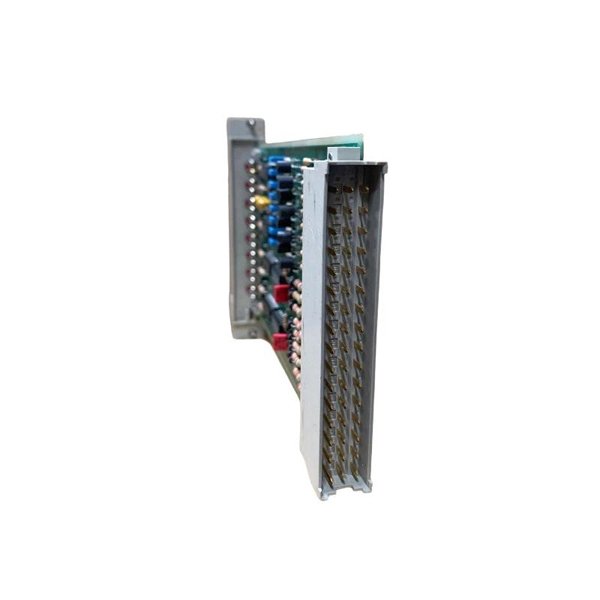

Hima F3105 Planar F System 4-Channel Relay Module

The HIMA F3105 is a reliable 4-channel relay module designed for safety-critical applications within the Planar F safety system. It provides safe and efficient relay switching with high durability and robust design. Ideal for industrial automation and process safety systems.

Technical Specifications

Applications

• Safety-critical relay switching in process industries

• Emergency shutdown (ESD) systems

• Fire and gas protection systems

• Power plant automation

• Chemical and petrochemical industry safety functions

Advantages

• Compact 4-channel design for space-saving installation

• High switching capacity and fast response time

• Integrated into Planar F safety architecture

• Long service life and robust performance

• Easy replacement and maintenance

FAQ

Q1: What is the main purpose of the F3105 module?

A1: It is used for safe and reliable relay switching in safety-critical applications.

Q2: How many channels does the module have?

A2: The F3105 has 4 independent relay channels.

Q3: What is the maximum switching current per channel?

A3: Up to 6 A per channel.

Q4: Is it suitable for high-temperature environments?

A4: Yes, it operates reliably up to +60 °C.

Q5: Can it handle both AC and DC loads?

A5: Yes, it supports 24 V DC and 230 V AC loads.

Q6: How is the module powered?

A6: It is powered via the Planar F system backplane.

Q7: Does it require regular maintenance?

A7: Minimal maintenance is needed due to its robust design.

Q8: Is the installation process complicated?

A8: No, it is designed for quick and easy installation into the system rack.

Q9: Can it be used in fire and gas systems?

A9: Yes, it is commonly used in fire and gas protection systems.

Q10: What is the weight of the module?

A10: The module weighs 0.65 kg.
