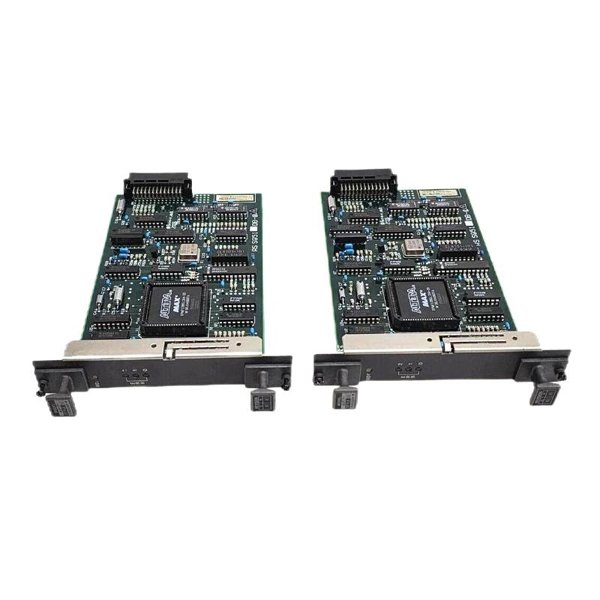

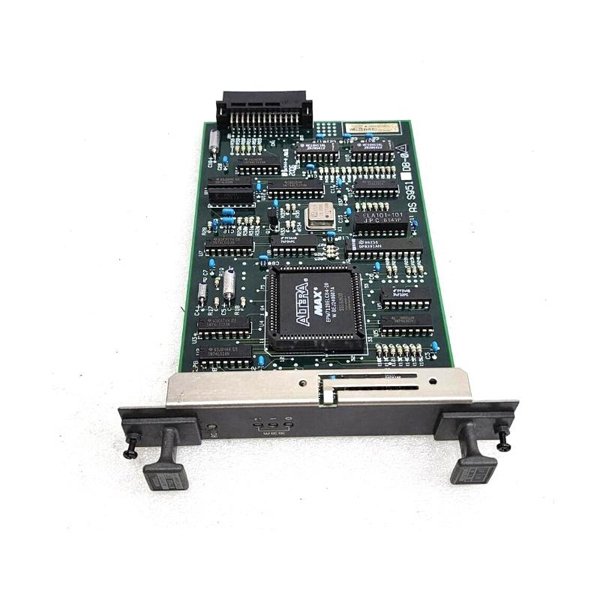

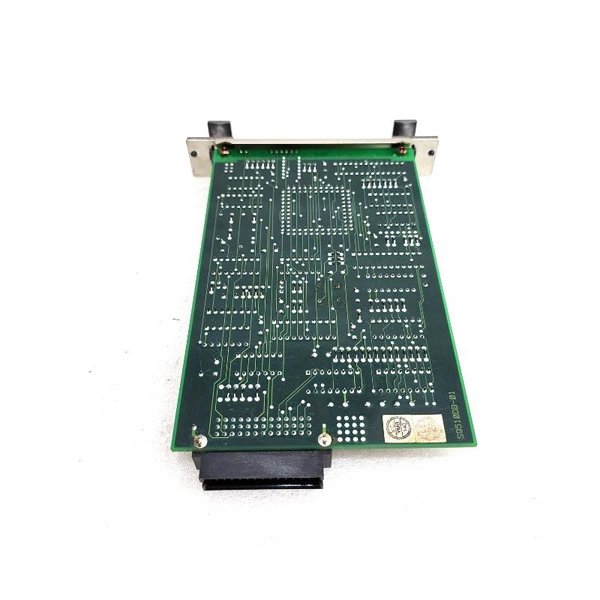

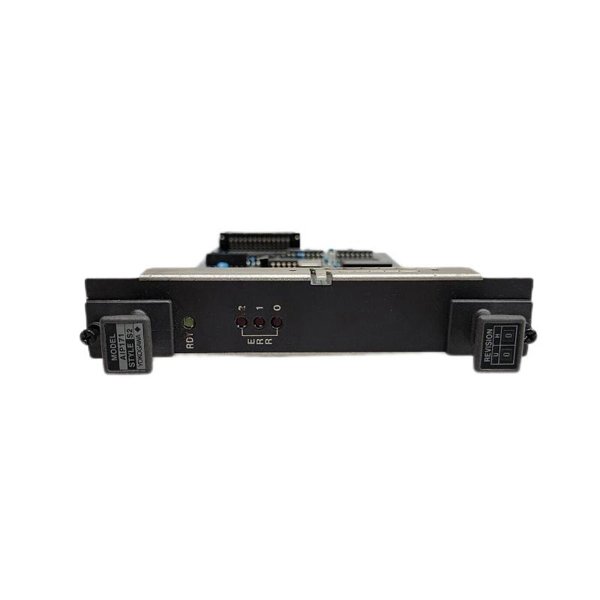

Yokogawa AIP171-S2 Transceiver Control Module

The Yokogawa AIP171-S2 is a high-performance analog input module designed for industrial automation and process control applications. It is part of Yokogawa’s FA-M3/Vigojin series, known for reliability, precision, and robust performance in harsh environments. This module supports 16-channel analog inputs with high accuracy, making it ideal for monitoring and controlling critical processes in industries such as oil & gas, chemical, power generation, and water treatment.

The AIP171-S2 ensures seamless integration with Yokogawa’s control systems, offering high-speed data acquisition, noise immunity, and easy configuration. Its modular design allows for flexible system expansion, while its rugged construction ensures long-term durability.

Product Specifications

Applications

The AIP171-S2 is widely used in industries requiring high-precision analog signal acquisition, including:

• Process Control Systems (e.g., temperature, pressure, flow monitoring)

• Power Plants (voltage/current monitoring in turbines and generators)

• Oil & Gas (pipeline pressure and level sensing)

• Chemical & Pharmaceutical (batch process control)

• Water & Wastewater Treatment (pH, conductivity, and flow measurement)

• Automotive & Manufacturing (equipment condition monitoring)

Product Advantages

1. High Accuracy & Resolution – 16-bit resolution ensures precise measurement even for small signal variations.

2. Fast Sampling Rate – 10ms per channel enables real-time monitoring.

3. Robust Isolation – Prevents noise interference, ensuring stable performance in electrically noisy environments.

4. Modular & Scalable – Easily integrates into Yokogawa’s FA-M3/Vigojin systems for flexible expansion.

5. Durable Construction – Designed for harsh industrial conditions with wide operating temperature and humidity ranges.

6. Easy Configuration – Simple setup via Yokogawa’s engineering tools.

7. Compliance & Safety – Meets international standards (CE, UL, IEC 61010-1).

Frequently Asked Questions (FAQ)

1. What types of signals can the AIP171-S2 handle?

   It supports DC voltage (1-5V, 0-10V) and current (4-20mA) inputs.

2. Is the AIP171-S2 compatible with third-party PLCs?

   No, it is designed specifically for Yokogawa’s FA-M3/Vigojin control systems.

3. What is the sampling rate per channel?

   The maximum sampling rate is 10ms per channel.

4. Does it support channel-to-channel isolation?

   Yes, each channel is isolated to prevent cross-talk and noise interference.

5. What is the operating temperature range?

   It operates reliably between -10°C to 55°C (14°F to 131°F).

6. How many channels does the module have?

   It provides 16 single-ended analog input channels.

7. What power supply does it require?

   It operates on 24V DC (±10%) with a power consumption of ~5W.

8. Is the AIP171-S2 suitable for hazardous environments?

   While it has robust isolation, additional certifications may be needed for hazardous areas (consult Yokogawa).

9. Can it be used for thermocouple or RTD inputs?

   No, it is designed for standard voltage/current signals. For temperature inputs, consider Yokogawa’s temperature-specific modules.

10. What are the dimensions and weight?

    It measures 30 × 130 × 150 mm (1.18 × 5.12 × 5.91 in) and weighs ~500g (1.1 lbs).
