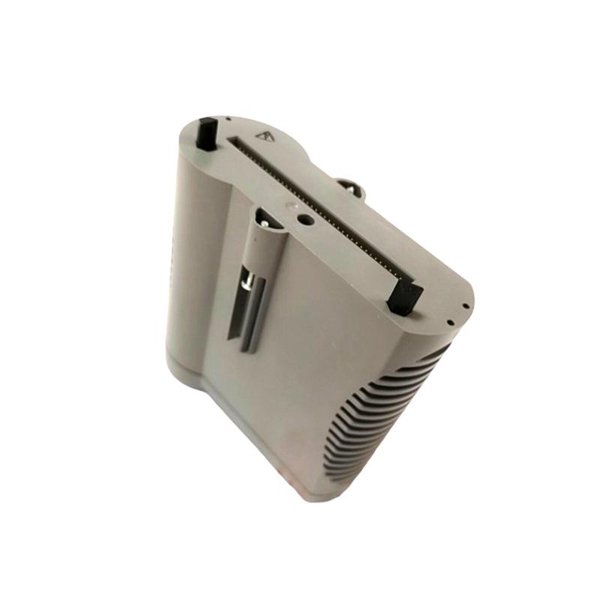

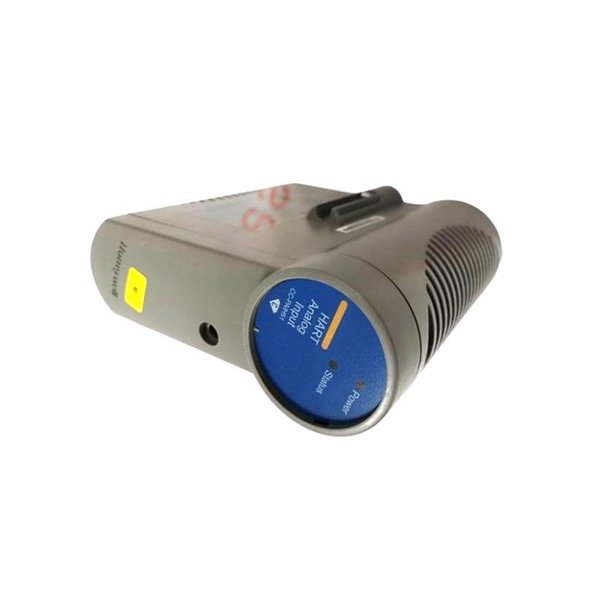

Honeywell CC-PAIH51 51410069-275 Analog Input Module
Manufacturer:Honeywell
Product Number:CC-PAIH51 51410069-275
Product Type:Analog Input Module
Origin:USA
Dimensions:63.5 x 124.46 x 307.34 mm
Weight:0.299 kg
Views:53
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell CC-PAIH51 (part number 51410069-275) is a high-performance analog input module designed for industrial automation systems. It facilitates the acquisition of analog signals from field devices, converting them into digital data for processing by controllers such as Programmable Logic Controllers (PLCs) and Distributed Control Systems (DCS). This module is integral to Honeywell’s C300 system, ensuring seamless integration and reliable performance in various industrial applications.
Technical Specifications
Below is a detailed table outlining the technical specifications of the Honeywell CC-PAIH51 module:
| Specification | Details |
|---|---|
| Model Number | CC-PAIH51 |
| Part Number | 51410069-275 |
| Input Channels | 16 channels (all single-ended) |
| Input Type | Current (2-wire or self-powered transmitters) |
| Input Range | 4-20 mA through 200 Ω |
| A/D Converter Resolution | 16 bits |
| Common Mode Rejection Ratio | 70 dB (DC to 60 Hz, 500 Ω source imbalance) |
| Common Mode Voltage | -6 to +5 V peak (DC to 60 Hz) |
| Normal Mode Rejection Ratio | 19 dB at 60 Hz |
| Normal Mode Filter Response | Single-pole RC, -3 dB at 6.5 Hz |
| Maximum Normal Mode Input | ±30 Volts |
| Crosstalk | -60 dB (DC to 60 Hz, channel-to-channel) |
| Input Scan Rate | 50 ms |
| Hardware Accuracy | ±0.075% of full-scale (23.5° ± 2°C); ±0.15% of full-scale (0 to 60°C) |
| Power Supply | 24VDC |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.299 kg |
Applications
The CC-PAIH51 module is versatile and can be employed in various industrial sectors, including:
Process Control Systems: Monitors and controls process variables such as temperature, pressure, and flow in industries like chemical processing and oil refining.
Data Acquisition Systems: Collects analog data from sensors and instruments for analysis and monitoring.
Supervisory Control and Data Acquisition (SCADA) Systems: Integrates with SCADA systems for remote monitoring and control of industrial processes.
Building Automation: Manages environmental controls within commercial and industrial buildings.
Water Treatment Facilities: Monitors water quality parameters to ensure compliance with environmental standards.
Power Generation Plants: Tracks critical parameters to ensure efficient and safe operations.
Advantages
The Honeywell CC-PAIH51 module offers several benefits:
High Precision: Ensures accurate data acquisition, crucial for maintaining process quality and efficiency.
HART Protocol Support: Facilitates enhanced communication with field devices, allowing for comprehensive device diagnostics and configuration.
Robust Design: Engineered for reliability in demanding industrial environments, minimizing downtime and maintenance costs.
Modular Architecture: Simplifies installation and maintenance, offering flexibility in system design and expansion.
Wide Application Range: Suitable for various industries, enhancing its utility and value.
Efficient Data Processing: Rapid input scan rate of 50 ms allows for timely data acquisition and processing.
Strong Signal Integrity: High common mode rejection ratio and low crosstalk ensure signal accuracy and reliability.
Compact and Lightweight: Its dimensions and weight facilitate easy integration into existing systems without requiring significant space.
