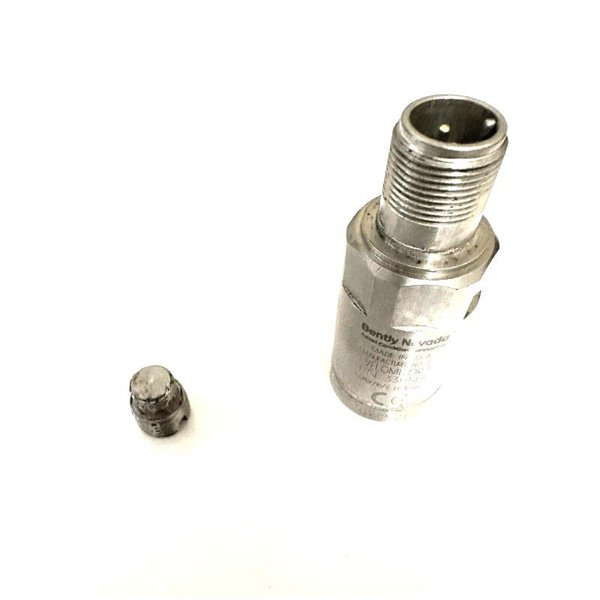

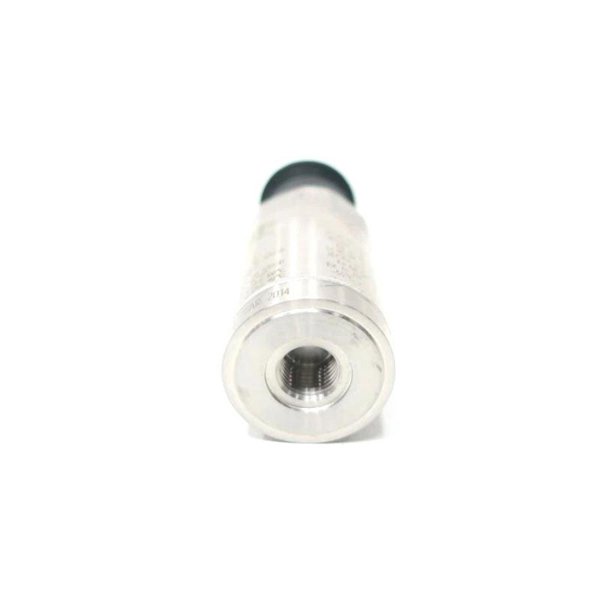

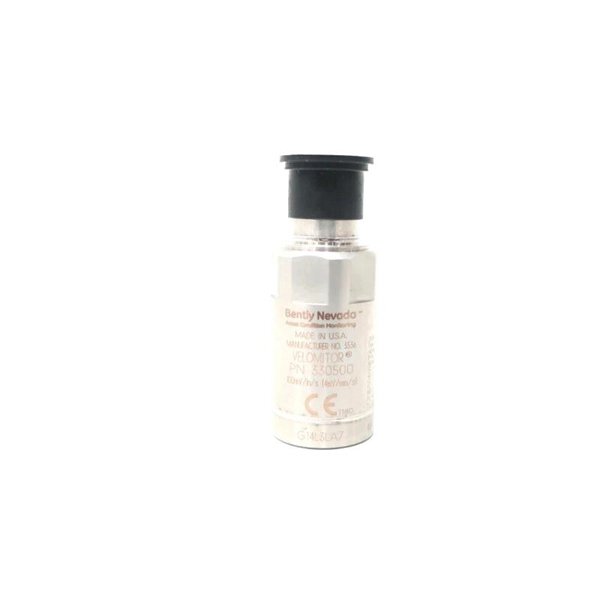

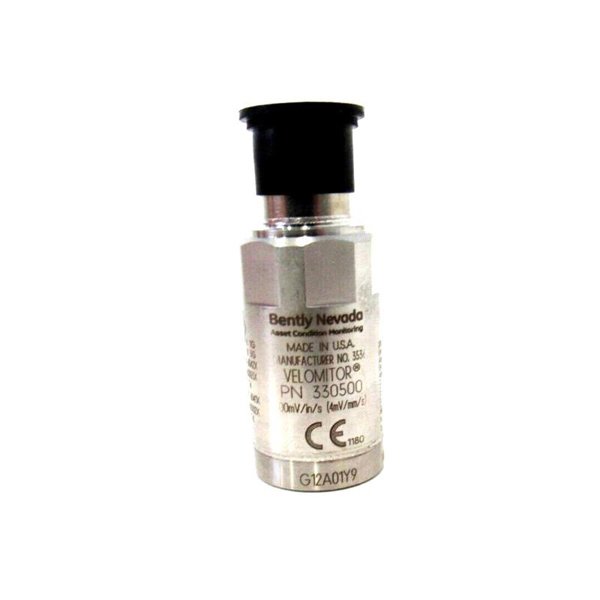

Bently Nevada 330500-03-02 Velomitor Piezo-velocity Sensor
Manufacturer:Bently Nevada
Product Number:330500-03-02
Product Type:Velomitor Piezo-velocity Sensor
Origin:USA
Sensor Head Diameter:25.3 mm
Shipping Weight:0.142 kg
Views:48
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330500-03-02 Velomitor Piezo-velocity Sensor is an industrial-grade sensor engineered to monitor absolute vibration levels in machine casings, bearing housings, and structures. Utilizing solid-state piezoelectric technology with embedded electronics, it offers high reliability without mechanical wear, making it ideal for long-term vibration monitoring in harsh industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Frequency Response | 4.5 Hz to 5 kHz (±3 dB); 6.0 Hz to 2.5 kHz (±0.9 dB) |
| Velocity Range | 1270 mm/s (50 in/s) peak |
| Amplitude Linearity | ±2% up to 152 mm/s (6 in/s) |
| Mounted Resonant Frequency | >12 kHz |
| Temperature Range | -55°C to +121°C |
| Shock Survivability | 5,000 g peak |
| Relative Humidity | Up to 100% non-submerged |
| Output Bias Voltage | -12 ±3.0 VDC |
| Dynamic Output Impedance | <2400 Ω |
| Noise Floor | 0.004 mm/s (160 μin/s) rms |
| Transverse Sensitivity | <5% |
| Grounding | Case isolated |
| Connector Type | 2-pin MIL-C-5015 hermetically-sealed |
| Material | 316L stainless steel |
| Weight | 0.142 kg (5.0 oz) |
| Sensor Head Diameter | 25.3 mm (0.995 in) |
| Sensor Height | 63.2 mm (2.49 in) |
Applications
-
Monitoring of bearing housings and machine casings
-
Suitable for rotating machinery (motors, compressors, turbines)
-
Ideal for harsh environments including high temperatures and shocks
-
Applications in oil & gas, power generation, and marine industries
Product Advantages
-
Solid-state design with no moving parts
-
Reliable performance in extreme temperatures and conditions
-
High accuracy and broad frequency response
-
Minimal maintenance required
-
Certified for hazardous environments (ATEX, IECEx, CSA)
-
Long cable runs without signal degradation (up to 305 m)
FAQ
Q1: What is the primary function of the 330500-03-02 sensor?
A1: It measures absolute casing vibration for machinery condition monitoring.
Q2: Can this sensor be installed in any orientation?
A2: Yes, it can be mounted vertically, horizontally, or at any angle.
Q3: What is the material of the sensor housing?
A3: The sensor is made of 316L stainless steel for corrosion resistance.
Q4: What is the output sensitivity of the sensor?
A4: The sensor provides 3.94 mV/mm/s (100 mV/in/s) ±5% sensitivity.
Q5: Is the 330500-03-02 suitable for hazardous locations?
A5: Yes, it has ATEX, IECEx, and CSA approvals for hazardous areas.
Q6: What is the maximum cable length supported?
A6: It supports up to 305 meters (1,000 feet) without signal degradation.
Q7: What is the operating temperature range?
A7: It operates from -55°C to +121°C.
Q8: Does it require external signal conditioning?
A8: No, it has integrated electronics, so no external conditioning is needed.
Q9: What is the mounting torque specification?
A9: Recommended torque is 24–40 in-lb (32–46 kg·cm).
Q10: Is the sensor immune to electromagnetic interference?
A10: Yes, it has magnetic field susceptibility <51 min/s/gauss at 50–60 Hz.
