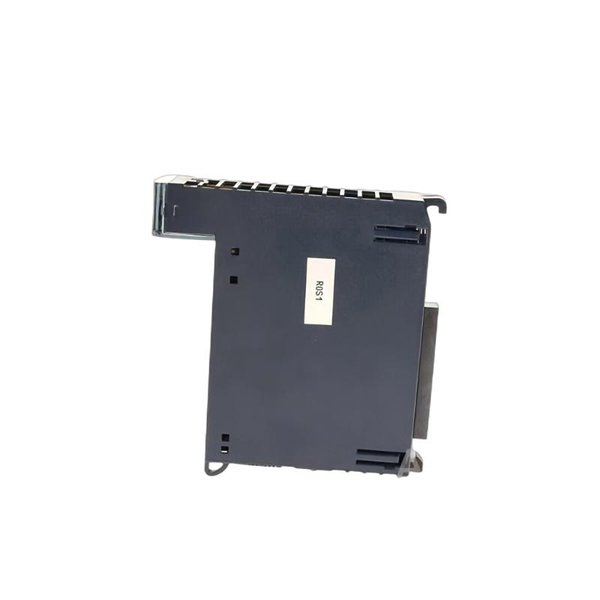

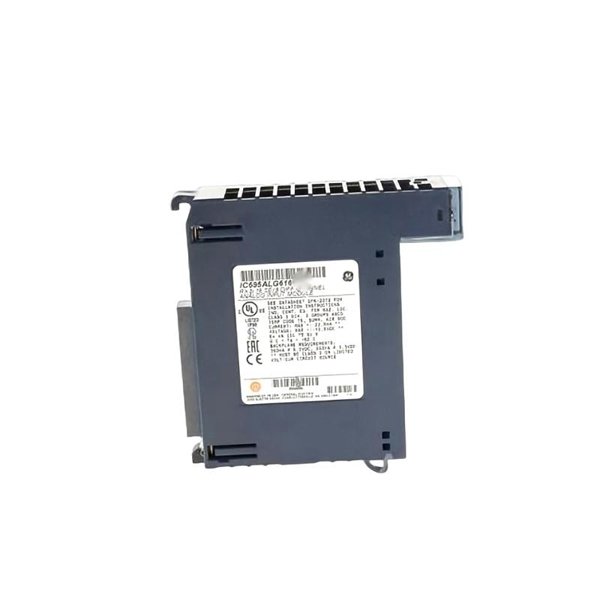

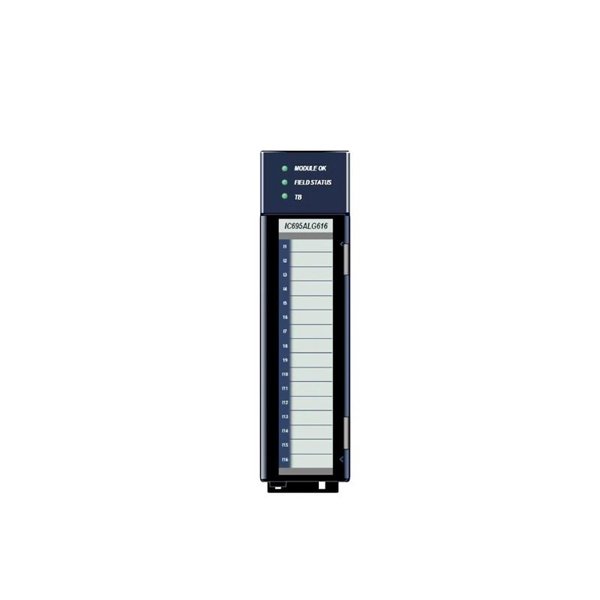

General Electric IC695ALG616 RX3i Analog Input Module

The GE IC695ALG616 is a high-performance analog input module from the PACSystems RX3i series, designed to provide precise and reliable analog signal acquisition for industrial automation applications. It offers 16 single-ended or 8 differential input channels, accommodating a variety of voltage and current input ranges. This module is engineered to deliver accurate data conversion, essential for monitoring and controlling complex industrial processes.

Product Specifications

Product Applications

• Process Control Systems: Ideal for monitoring and controlling analog signals in complex industrial processes.

• Manufacturing Automation: Ensures accurate data acquisition from various sensors in automated production lines.

• Energy Sector: Used in power generation and distribution systems for precise measurement of electrical parameters.

• Building Automation: Facilitates environmental monitoring and control in large facilities.

• Water and Wastewater Treatment: Monitors flow, pressure, and chemical levels to ensure compliance and efficiency.

Product Advantages

• High Precision: 24-bit ADC provides accurate analog-to-digital conversion for critical applications.

• Flexible Configuration: Supports various voltage and current input ranges, accommodating diverse sensor types.

• Robust Protection: Built-in overvoltage and overcurrent protection safeguards the module and connected equipment.

• Advanced Diagnostics: Features open-circuit detection and per-channel alarms for proactive maintenance.

• Ease of Integration: Compatible with PACSystems RX3i, allowing seamless integration into existing systems.

• Software Configurable: Eliminates the need for hardware jumpers, simplifying setup and adjustments.

• Reliable Performance: Designed to operate in harsh industrial environments with wide temperature ranges.

Frequently Asked Questions (FAQ)

1. What types of input signals does the IC695ALG616 support?

   It supports both voltage (±10V, 0–10V, ±5V, 0–5V, 1–5V) and current (0–20mA, 4–20mA, ±20mA) input signals.

2. Can the module be configured for single-ended or differential inputs?

   Yes, it can be configured for 16 single-ended or 8 differential input channels.

3. What is the resolution of the analog-to-digital conversion?

   The module features a 24-bit ADC for high-resolution signal conversion.

4. Does the module provide any protection features?

   Yes, it includes overvoltage protection (±60 VDC), overcurrent protection (±28 mA), and open-circuit detection.

5. Is the module compatible with other PACSystems RX3i components?

   Yes, it is designed to integrate seamlessly with the PACSystems RX3i series.

6. What are the power requirements for the module?

   It requires 3.3V at 450 mA and 5V at 600 mA.

7. Can the input data format be customized?

   Yes, the input data can be configured as IEEE 32-bit floating point or 16-bit integer.

8. What filtering options are available?

   The module offers configurable filters at 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, and 500Hz.

9. What are the physical dimensions and weight of the module?

   It measures 34 x 140 x 145 mm and weighs 0.227 kg.

10. What certifications does the IC695ALG616 hold?

    The module is certified by UL, CE, and CSA, ensuring compliance with international standards.
