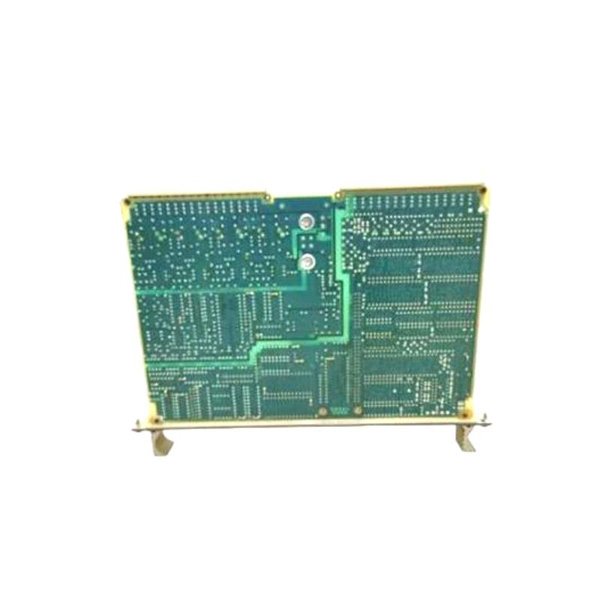

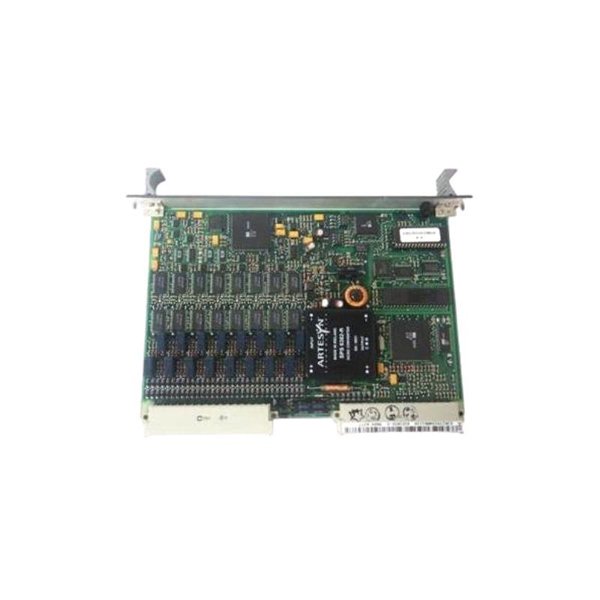

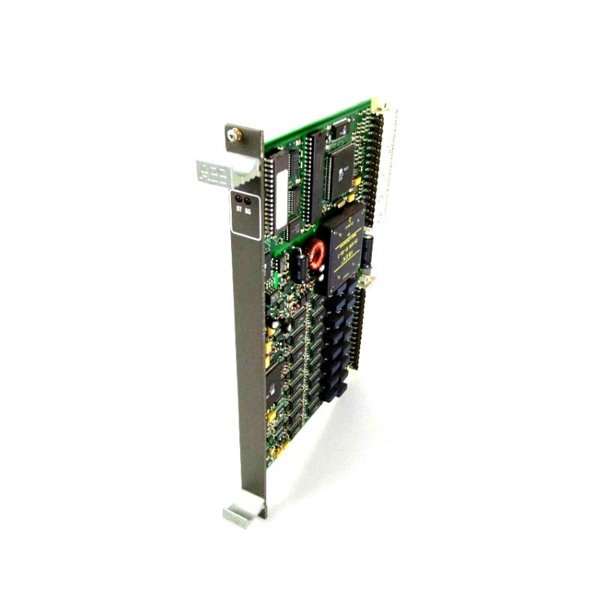

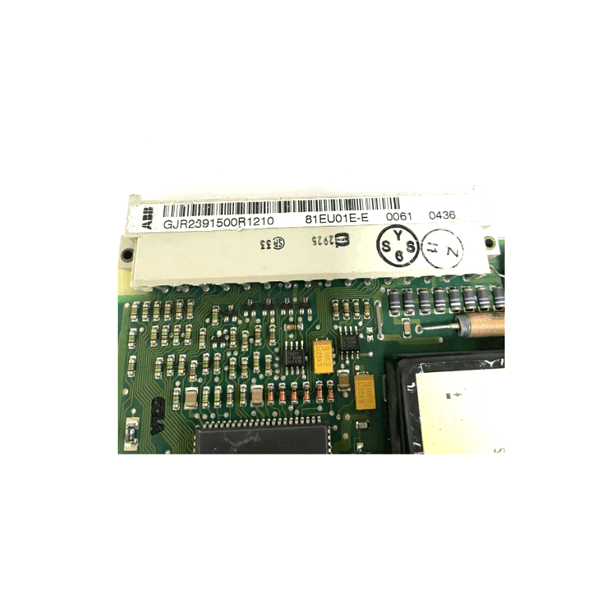

ABB 81EU01E-E GJR2391500R1210 Universal Input Module

The ABB 81EU01E-E GJR2391500R1210 is a 16-channel universal input module designed for use within the ABB Ability™ System 800xA® control system. It offers flexibility for interfacing with various sensors and switches in industrial applications, making it a versatile component in process automation.​

Product Specifications

Product Applications

The ABB 81EU01E-E module is suitable for various industrial applications, including:​

• Process Control: Facilitates accurate monitoring and control of industrial processes by interfacing with diverse sensors.​

• Machine Automation: Enables seamless integration with machine control systems, enhancing automation capabilities.​

• Safety Systems: Monitors critical safety inputs, contributing to the reliability of safety instrumented systems.​

• Building Automation: Integrates with building management systems for efficient control of environmental and security parameters.​

• Data Acquisition Systems: Collects and processes data from various field devices for analysis and decision-making.​

Product Advantages

• Versatility: Supports both analog and digital inputs, allowing for flexible interfacing with various sensor types.​

• High Precision: 16-bit analog resolution ensures accurate data acquisition and process control.​

• Robust Design: Operates reliably in extreme temperatures ranging from -40°C to +70°C and offers high noise immunity.​

• Intrinsic Safety: Certified for use in hazardous areas, ensuring compliance with safety standards.​

• Ease of Maintenance: Hot-swappable feature allows for module replacement without system downtime, enhancing maintainability.​

FAQ

1. What types of inputs does the ABB 81EU01E-E module support?

   • It supports 8 analog voltage inputs (0 to 10 V) and 8 digital/pulse inputs (24 V DC).​

2. Can the input channels be configured individually?

   • Yes, each channel can be individually configured for either analog or digital input.​

3. Is the module suitable for use in hazardous areas?

   • Yes, it is intrinsically safe and certified for use in hazardous areas (ATEX/IECEx Zone 2).​

4. What is the operating temperature range of the module?

   • The module operates reliably within a temperature range of -40°C to +70°C.​

5. Does the module support hot swapping?

   • Yes, it allows for hot swapping, enabling module replacement without shutting down the system.​

6. What is the analog resolution of the module?

   • The module offers a 16-bit analog resolution for precise data acquisition.​

7. How is the module mounted?

   • It is designed for DIN rail mounting, facilitating easy installation.​

8. What are the dimensions and weight of the module?

   • The module measures 198 x 261 x 20 mm, and weighs 0.5 kg.​

9. Does the module provide any visual status indicators?

   • Yes, it features LED indicators that provide visual status for each input channel.​

10. In which industrial applications can this module be utilized?

    • It is suitable for process control, machine automation, safety systems, building
