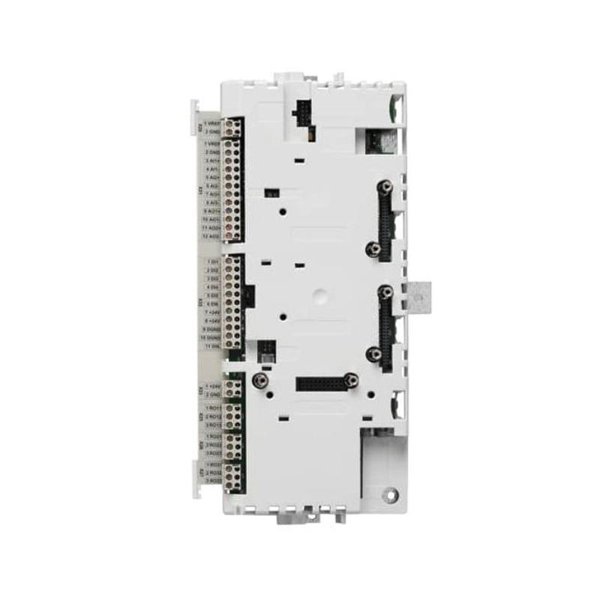

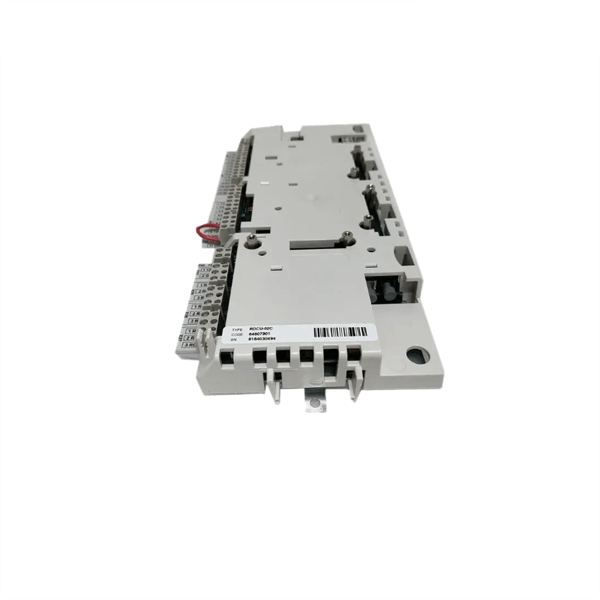

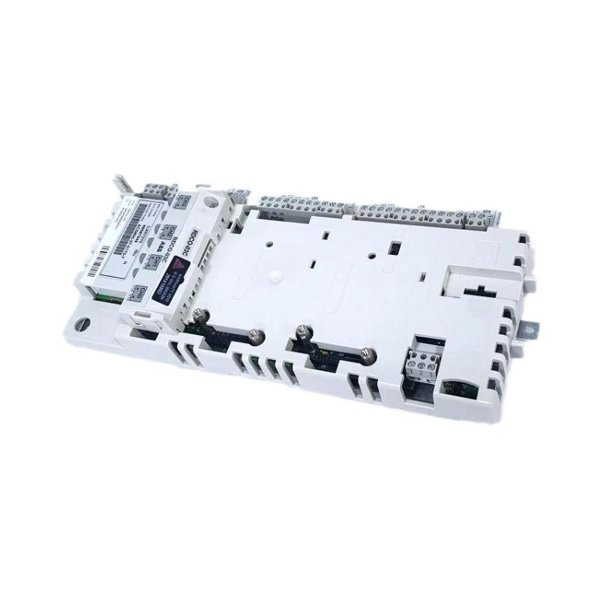

ABB RDCU-12C 3AUA0000036521 Drive Control Unit

The ABB RDCU-12C 3AUA0000036521 is an advanced drive control unit designed to serve as the core control interface in ABB low voltage AC drives. This module is responsible for supervising key functions such as motor control, communication with fieldbuses, parameter storage, and diagnostics. It is commonly found in ACS800 drive systems and other ABB industrial drive families.

The RDCU-12C provides seamless integration between user interfaces, extension modules, and the drive’s internal systems. It ensures robust real-time data processing, fault tolerance, and adaptability to complex applications. The unit’s compact design and wide functionality make it suitable for both standalone and networked environments, supporting fieldbus protocols such as PROFIBUS, DeviceNet, Modbus, and CANopen through additional modules.

This control unit contributes significantly to system flexibility, energy efficiency, and operational transparency across diverse industrial environments such as manufacturing, water treatment, mining, oil & gas, and marine propulsion systems.

Product Parameters

Product Applications

The RDCU-12C is engineered to meet the demands of a wide range of motion control and drive system applications:

• Variable Speed Drives in Industry

  Provides core control for AC motors, enabling energy-efficient operations.

• Conveyor Systems and Hoists

  Ensures precise motor speed and torque control.

• Water and Wastewater Plants

  Enhances control reliability for pumps and compressors.

• Cranes and Elevators

  Delivers real-time monitoring and position control.

• Marine and Offshore Applications

  Suitable for harsh environments due to its compact and rugged design.

• Material Handling Systems

  Works seamlessly in automated machinery and robotics platforms.

Product Advantages

• Centralized Control Intelligence

  Functions as the brain of ABB drives, integrating all control logic.

• Modular Expandability

  Easily works with communication and I/O expansion modules.

• Comprehensive Diagnostics

  Real-time data logging and fault tracking built-in.

• Flexible Communication Support

  Compatible with numerous industrial protocols via add-on modules.

• Energy Optimization Support

  Helps implement smart motor control strategies for energy savings.

• Compact & Lightweight Design

  Facilitates integration into tight control cabinets and confined panels.

• Rugged Reliability

  Built to withstand industrial environmental stress.

• User-Friendly Setup

  Supports ABB’s DriveWindow and other PC configuration tools.

Frequently Asked Questions (FAQ)

Q1: What drives are compatible with the RDCU-12C?

A1: It is primarily used with ABB ACS800 low voltage AC drives and select industrial drive series.

Q2: How is the RDCU-12C powered?

A2: It is powered directly from the drive unit it controls; no external power supply is needed.

Q3: Does the RDCU-12C support fieldbus communication?

A3: Yes, with additional modules, it supports PROFIBUS, CANopen, Modbus, and more.

Q4: Can it store motor and system parameters?

A4: Yes, the module retains parameter configurations and system settings.

Q5: How does it connect to programming tools?

A5: Through a fiber optic or RJ-45 interface, compatible with DriveWindow.

Q6: Is the RDCU-12C hot-swappable?

A6: No, power must be turned off before replacing or removing the unit.

Q7: What happens during a fault event?

A7: The module logs the event and can trigger configured alarms or shutdowns.

Q8: Is it suitable for marine applications?

A8: Yes, it’s commonly deployed in marine environments with proper enclosures.

Q9: How do I mount the RDCU-12C?

A9: It is designed for internal installation within ABB drive modules.

Q10: What is the expected lifespan of this unit?

A10: With proper environmental conditions, it exceeds 10+ years in operation.
