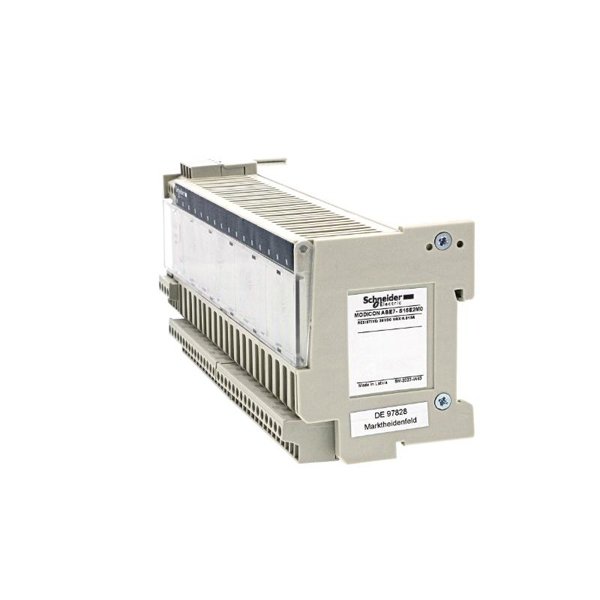

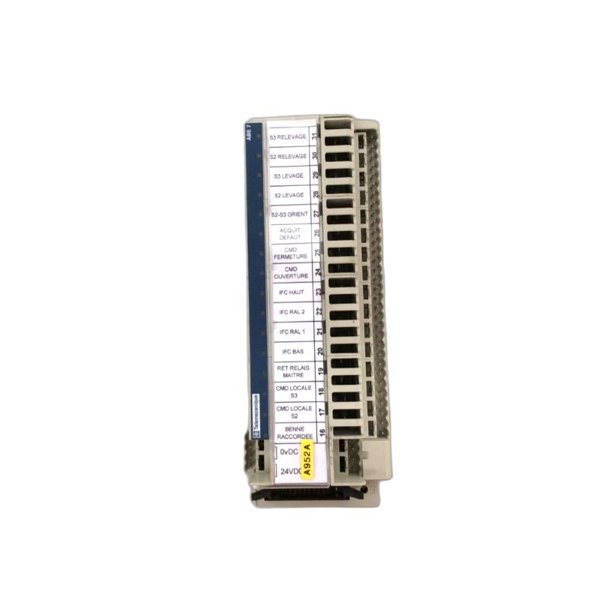

Schneider ABE7S16E2M0 Soldering The Solid-state Output Relay Base

The Schneider ABE7S16E2M0 is a solid-state output relay base designed for efficient signal transmission in industrial automation applications. As part of the Schneider Electric ABE7 series, this module serves as an interface between PLC output modules and field actuators, providing enhanced electrical isolation and reliable switching performance.

With 16 output channels, DIN rail compatibility, and a compact yet durable design, this relay base is ideal for applications requiring high-speed and frequent switching. The solid-state output technology ensures longer lifespan, higher reliability, and better resistance to wear compared to traditional electromechanical relays.

Product Specifications

Applications

The Schneider ABE7S16E2M0 is widely used in various industrial automation applications, including:

• Manufacturing Automation – Controls actuators, solenoids, and motors in factory automation.

• Process Control Systems – Provides high-speed signal switching for process industries.

• Material Handling Equipment – Used in conveyor belt systems and robotic arms.

• Power Plants – Manages switching in power distribution and generation.

• Food & Beverage Industry – Ensures precision control in food processing lines.

• Building Automation – Helps in HVAC and lighting control systems.

Product Advantages

1. High-Speed Switching – Solid-state technology allows ultra-fast switching with minimal delay.

2. Long Lifespan – No moving parts mean reduced wear and tear compared to electromechanical relays.

3. Compact & Lightweight – Ideal for space-constrained control panels.

4. High Electrical Isolation – 2500V isolation ensures better protection against electrical surges.

5. Efficient Power Management – Low power consumption enhances energy efficiency.

6. DIN Rail Mountable – Provides flexible mounting options for easy integration.

7. Reliable Performance – Works under extreme industrial conditions with high temperature tolerance.

8. Reduced Maintenance – Solid-state design eliminates contact degradation issues.

9. Secure Soldering Terminals – Ensures strong and reliable electrical connections.

10. Versatile Application – Suitable for PLC systems, SCADA, and industrial automation setups.

Frequently Asked Questions (FAQ)

1. What is the primary function of the ABE7S16E2M0?

   It acts as a solid-state relay base, providing isolation and fast switching between PLC outputs and actuators.

2. How many output channels does this module have?

   The module features 16 solid-state output channels.

3. What voltage does this relay base operate on?

   It operates at 24V DC.

4. Can this module be mounted on a DIN rail?

   Yes, it supports both DIN rail and panel mounting for easy installation.

5. What is the switching current capacity per channel?

   Each channel supports a maximum of 0.5A.

6. How does a solid-state relay differ from an electromechanical relay?

   Solid-state relays have no moving parts, ensuring longer lifespan, faster switching, and greater reliability.

7. What is the isolation voltage rating of the ABE7S16E2M0?

   It provides 2500V electrical isolation between input and output.

8. Is this relay base suitable for industrial automation?

   Yes, it is widely used in manufacturing, material handling, and process control applications.

9. What protection rating does the module have?

   It features an IP20 protection rating, suitable for industrial control panels.

10. Does this module require regular maintenance?

    No, the solid-state design minimizes maintenance requirements compared to traditional relays.
