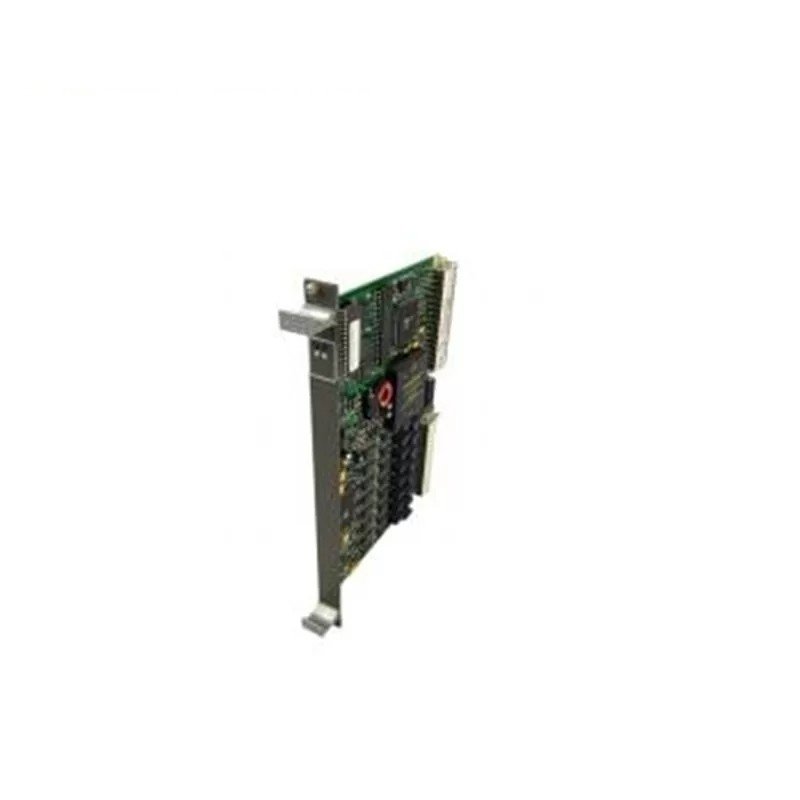

ABB GJR2365700R1010 88VA02B-E Relay Module

The ABB GJR2365700R1010 88VA02B-E is a 2-channel relay module with a nominal load current of 8 A per channel. It has a wide input voltage range of 24 VDC to 250 VAC and can be used to switch a variety of loads, including motors, solenoids, and lamps. The module has a number of features that make it suitable for use in demanding industrial applications, including:

• High switching capacity: The module can switch loads of up to 8 A per channel, making it suitable for a wide range of applications.
• Wide input voltage range: The module can be operated from a wide range of input voltages, from 24 VDC to 250 VAC, making it compatible with a variety of power systems.
• LED status indicators: The module has LED status indicators that provide clear visual indication of the status of each relay output.
• Test button: The module has a test button that can be used to manually operate the relay outputs.
• Protection against short circuits and overloads: The module is protected against short circuits and overloads, helping to ensure safe and reliable operation.

Technical Specifications

• Number of channels: 2
• Nominal load current: 8 A per channel
• Input voltage range: 24 VDC to 250 VAC
• Output type: Form A (SPST)
• Switching power: 88 VA per channel
• Contact material: AgSnO
• Operating temperature range: -25°C to +55°C
• Storage temperature range: -40°C to +85°C
• Mounting: DIN rail mount
• Dimensions: 36 x 22.5 x 11.5 mm
• Weight: 35 g

Applications

The ABB GJR2365700R1010 88VA02B-E relay module is suitable for a wide range of industrial control applications, including:

• Motor control: The module can be used to control the operation of motors, such as those used in pumps, fans, and conveyors.
• Solenoid control: The module can be used to control the operation of solenoids, such as those used in valves and actuators.
• Lamp control: The module can be used to control the operation of lamps, such as those used in signaling and indication systems.
