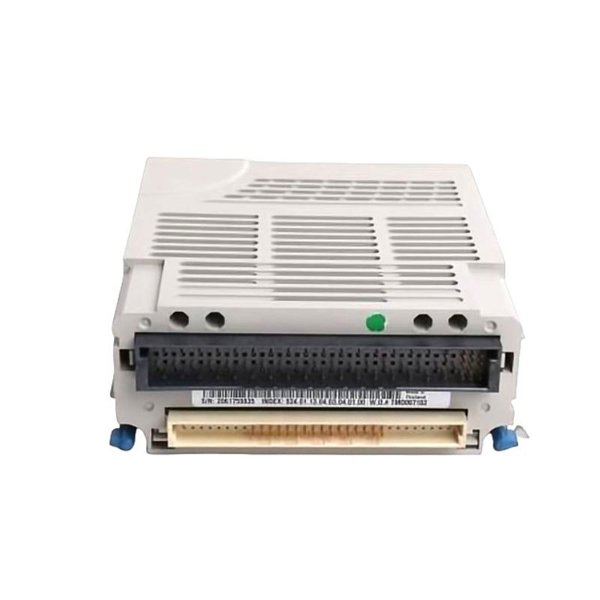

Ovation 5X00501G01 Analog Input Module

The Ovation 5X00501G01 Analog Input Module is a high-precision component designed for the Ovation control system, tailored to acquire analog signals from various process instruments. This module converts real-world physical signals—such as temperature, pressure, flow, or level—into digital data for system processing. It plays a vital role in providing accurate and timely information essential for process control and automation.

Built with robust industrial-grade electronics, the 5X00501G01 ensures stable and reliable performance even in challenging environments. The module supports multiple input channels, providing flexibility in data acquisition from various sensors simultaneously. Its compatibility with Ovation control systems guarantees seamless integration, making it ideal for critical infrastructure sectors like power generation, oil and gas, and water treatment.

Technical Specifications

Applications

• Power Generation: Monitoring temperature, pressure, and flow sensors on turbines and boilers.

• Oil & Gas: Measuring analog inputs from pipelines, refineries, and compressor stations.

• Chemical Processing: Tracking process variables such as pH, conductivity, and flow rate.

• Water & Wastewater Treatment: Sensing water quality parameters and controlling pump operations.

• Manufacturing: Collecting analog signals from machinery and environmental sensors for quality control.

• Building Automation: Monitoring HVAC sensors for temperature, humidity, and airflow control.

Advantages

• High Precision: Provides accurate analog signal acquisition for reliable control decisions.

• Wide Input Compatibility: Supports voltage and current inputs, accommodating many sensor types.

• Robust Construction: Built for industrial environments with resistance to temperature and humidity extremes.

• Flexible Installation: Can be mounted on DIN rails or panels, suiting various control cabinet designs.

• Seamless Ovation Integration: Designed for plug-and-play with Ovation control platforms.

• Fast Sampling Rate: Ensures real-time process monitoring and responsive control.

• Diagnostic Features: Built-in self-checks help detect signal or hardware issues early.

• Compact Form Factor: Small footprint saves space inside control panels.

• Long Service Life: Engineered to deliver years of trouble-free operation.

• Certified for Safety: Meets CE and UL standards, ensuring compliance and reliability.

Frequently Asked Questions (FAQ)

1. Q: What types of analog inputs does the 5X00501G01 module support?

   A: It supports both voltage inputs (0-10 V) and current inputs (4-20 mA).

2. Q: How many input channels are available on this module?

   A: The module includes 16 analog input channels.

3. Q: What is the accuracy of the analog input readings?

   A: The module provides accuracy of ±0.1% of full scale.

4. Q: Can the module operate in harsh environmental conditions?

   A: Yes, it is rated for operation between -20°C and 70°C with high humidity tolerance.

5. Q: What are the physical dimensions and weight of the module?

   A: It measures 41 x 159 x 108 mm and weighs 0.32 kg.

6. Q: Is the module compatible with other Ovation system components?

   A: Yes, it is designed for full compatibility within Ovation control systems.

7. Q: What mounting options are available for the module?

   A: The module supports DIN rail and panel mounting.

8. Q: Does the module include diagnostic functions?

   A: Yes, it features built-in diagnostics for fault detection and signal verification.

9. Q: What certifications does the module hold?

   A: The 5X00501G01 is CE and UL certified.

10. Q: Can this module handle high-frequency signal sampling?

    A: It can sample signals up to 50 times per second, suitable for most process control needs.
