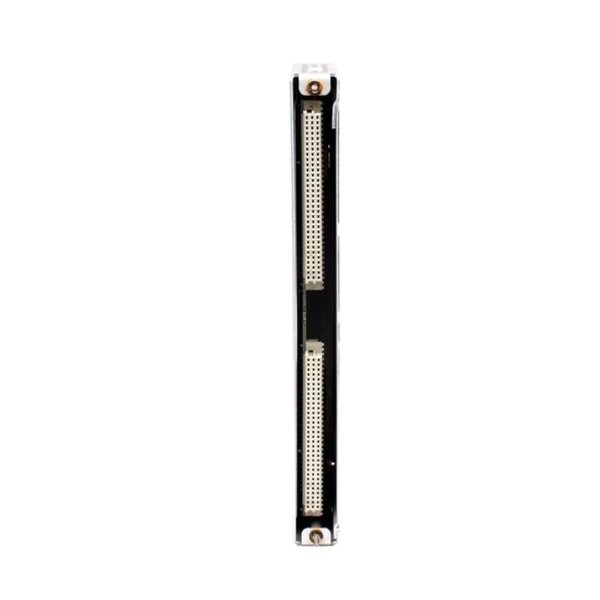

Bently Nevada 3500/92 136188-02 Ethernet/RS232 Modbus I/O Module

The Bently Nevada 3500/92 136188-02 Ethernet/RS232 Modbus I/O Module is a communication gateway designed to integrate the 3500 monitoring system with process control and automation systems. It facilitates the transmission of all rack-monitored values and statuses using both Ethernet TCP/IP and serial communications (RS232/RS422/RS485). This module supports protocols such as Modicon Modbus, ensuring seamless data exchange between the monitoring system and control systems.

Product Specifications

Product Applications

The 3500/92 136188-02 module is utilized in various industrial applications, including:

• Process Control Systems: Integrating real-time monitoring data with control systems to enhance operational efficiency.

• Automation Systems: Facilitating seamless communication between monitoring equipment and automation platforms.

• Data Acquisition: Enabling the collection and analysis of machinery data for predictive maintenance and performance optimization.

Product Advantages

• Versatile Communication: Supports multiple communication protocols and interfaces, allowing flexible integration with various systems.

• Enhanced Monitoring: Provides comprehensive data transmission of all rack-monitored values and statuses, ensuring thorough monitoring capabilities.

• Robust Design: Engineered to operate in a wide temperature range, making it suitable for harsh industrial environments.

FAQ

1. What is the primary function of the 3500/92 136188-02 module?

   It serves as a communication gateway, enabling integration of the 3500 monitoring system with process control and automation systems via Ethernet and serial communications.

2. Which communication protocols does this module support?

   It supports Ethernet TCP/IP and Modicon Modbus protocols over serial communications.

3. What serial communication interfaces are available on this module?

   The module offers RS232, RS422, and RS485 serial communication options.

4. What is the typical power consumption of the module?

   The typical power consumption is 5.6 watts.

5. Can this module operate in extreme temperatures?

   Yes, it is designed to operate within a temperature range of -30°C to +65°C (-22°F to +149°F).

6. What are the dimensions and weight of the module?

   The module measures 241 x 24.4 x 99.1 mm, with a weight of 0.44 kg.

7. Is the module compatible with all 3500 racks?

   Yes, it is designed for seamless integration with Bently Nevada 3500 racks.

8. Does the module require any special software for configuration?

   Configuration can be performed using the 3500 Rack Configuration Software.

9. What type of data can be transmitted through this module?

   It transmits all rack-monitored values and statuses for integration with control and automation systems.

10. How does this module enhance reliability in industrial applications?

    It ensures continuous data communication and system monitoring, reducing downtime and enhancing operational efficiency.
