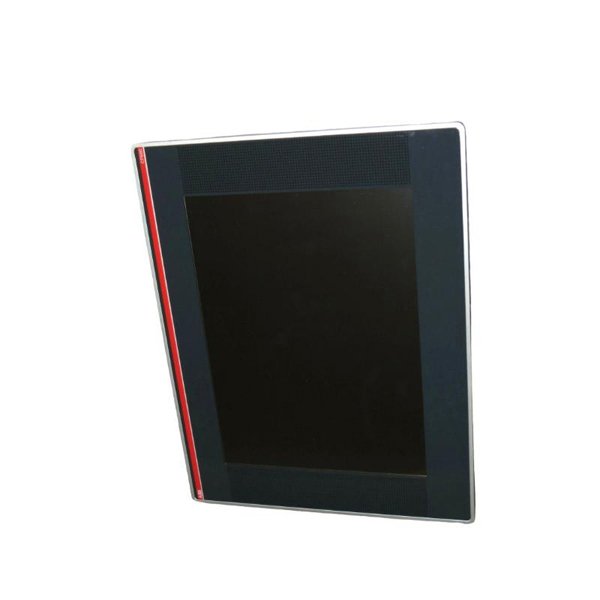

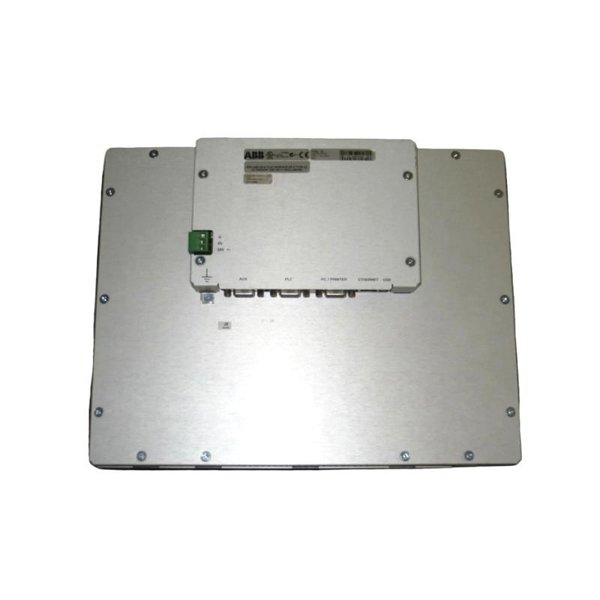

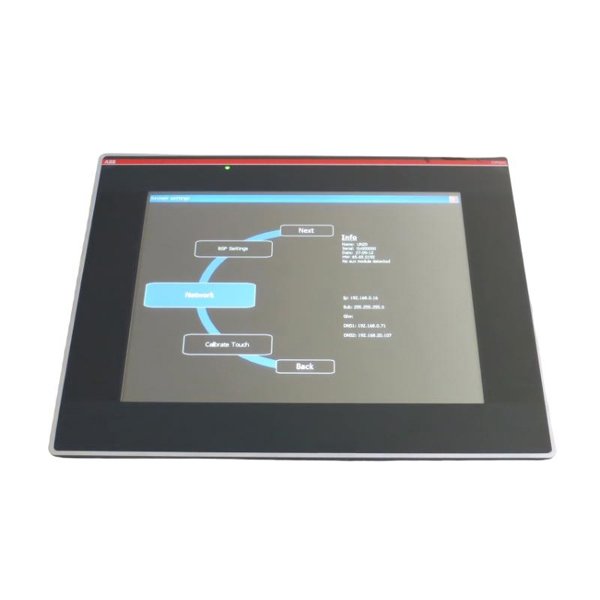

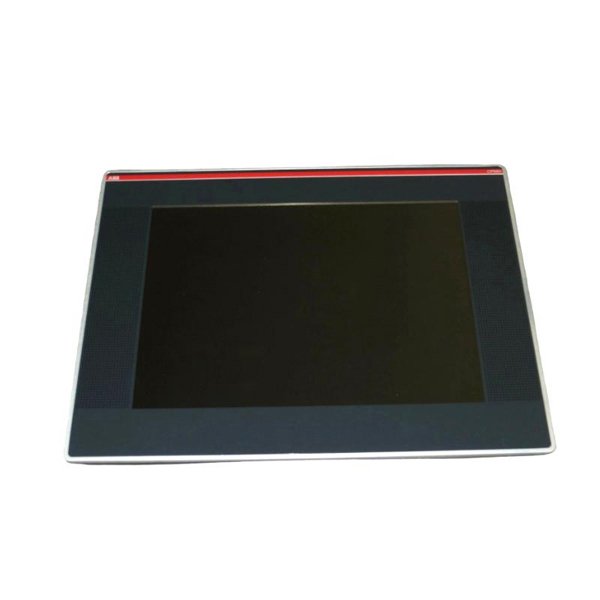

ABB CP660 1SAP560100R0001 Touch Screen

The ABB CP660 (1SAP560100R0001) is a modern, compact operator interface panel equipped with a 5.7-inch color touchscreen designed to provide a clear and intuitive user experience in industrial automation systems. As part of the ABB CP600 HMI series, the CP660 is engineered for seamless integration with PLCs, controllers, and other industrial devices, offering a reliable interface for machine and process control.

This panel combines robust hardware with flexible software capabilities, allowing operators to monitor, adjust, and control production workflows with speed and accuracy. Built for harsh industrial environments, the CP660 is suitable for mounting directly in machinery or control cabinets. With support for a wide array of protocols and development tools like Panel Builder 600, it empowers engineers to deploy tailored HMI applications across diverse industrial sectors.

Product Specifications

Applications

The ABB CP660 is designed to function across a variety of industries where user interaction with machines and systems is critical. Key applications include:

• Industrial Automation

  Enables operators to interact with PLCs, view alarms, and adjust process parameters in real-time.

• Machine Tool Control Panels

  Acts as a front-end HMI for CNC machines, packaging machines, and assembly line automation.

• Food and Beverage Processing

  Offers hygiene-compliant interface for batch controls, temperature, and timer displays.

• HVAC Systems

  Monitors air handling units, chillers, and energy management systems.

• Water and Wastewater Management

  Provides a control interface for pumps, filtration units, and chemical dosing.

• Energy and Utilities

  Supports substation automation and remote control panels for energy distribution networks.

Product Advantages

• Compact Form Factor

  Fits into tight panel spaces without compromising performance or visibility.

• Intuitive User Interface

  Supports graphical HMI designs via ABB’s Panel Builder 600 with multi-language options.

• Industrial-Grade Durability

  IP66 front protection ensures resistance to dust and water in demanding environments.

• Wide Communication Support

  Compatible with multiple industrial protocols including Modbus, OPC UA, and Ethernet/IP.

• Quick Boot and Response Time

  Fast initialization allows for quicker operator access and reduced downtime.

• Long-Term Software Support

  Supported by ABB’s Panel Builder 600 development environment, ensuring compatibility and updates.

• Flexible Mounting Options

  Easy to install with secure panel mounting and standard cut-out dimensions.

• Low Power Operation

  Energy-efficient design makes it ideal for continuous operation with minimal heat output.

• Secure Data Handling

  Password protection and communication encryption available via supported protocols.

• Global Certification

  CE, RoHS, and UL certifications make it suitable for international projects.

Frequently Asked Questions (FAQ)

1. What software is used to program the CP660?

   The CP660 is programmed using ABB’s Panel Builder 600 software, which supports graphical HMI creation and configuration.

2. Can the CP660 connect to third-party PLCs?

   Yes, it supports standard communication protocols like Modbus TCP/RTU and Ethernet/IP, allowing integration with non-ABB PLCs.

3. Is the screen visible under bright light?

   While it is not sunlight-readable, the TFT display is bright enough for most indoor industrial environments.

4. What type of touchscreen does it have?

   It uses a resistive analog touchscreen, which works well with gloved hands and styluses.

5. Can this HMI be updated remotely?

   Remote firmware updates and HMI uploads are possible via Ethernet using ABB tools.

6. Does the CP660 support alarms and trends?

   Yes, Panel Builder 600 allows configuration of alarm messages, logging, and historical trends.

7. Is it possible to expand memory or connect external storage?

   The USB Host port allows temporary connection of USB storage devices for log export or updates.

8. How is it powered?

   The unit operates on a 24 VDC power supply, commonly available in control panels.

9. Is it compliant with hazardous area use?

   It is not certified for hazardous locations like Class I Div 2; however, it is safe for standard industrial use.

10. How long is the typical service life of the CP660?

    With proper usage and environmental conditions, it can reliably operate for over 5 years.
