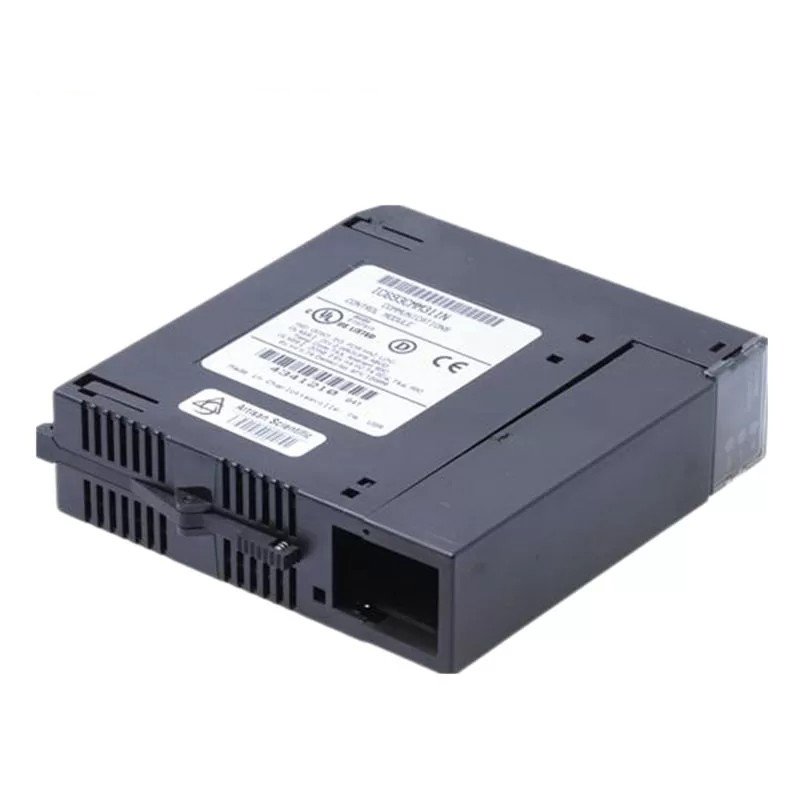

GE Fanuc IC693CMM311 Communications CoProcessor Module

The GE Fanuc IC693CMM311 is a specialized communications coprocessor module that enhances the external communication capabilities of Series 90-30 modular CPUs. This module is especially useful for models 311, 313, and 323. As a high-performance coprocessor, it offloads communication tasks from the main CPU, improving overall system performance.

Key Features and Specifications

Communication Ports:

• Port 1: Supports RS-232 applications.
• Port 2: Supports RS-232 and RS-485 applications, offering flexibility for various protocols.

Compatibility:

• Designed specifically for Series 90-30 modular CPUs.
• Compatible with models 311, 313, and 323.

Performance:

• Provides high-speed communication capabilities.
• Enhances data transfer rates and reduces response times.

Functionality:

• Offloads communication tasks from the main CPU.
• Frees up processing power for other applications.

Power Requirements:

• Requires a 5VDC power supply.
• Maximum current draw is 400mA.

Applications

The IC693CMM311 is used in various industrial automation and control systems for:

• Data Acquisition: Collecting data from remote sensors and devices.
• Remote Monitoring and Control: Supervising and controlling processes from a central location.
• Device Networking: Connecting multiple devices and systems.
• Protocol Conversion: Converting between different communication protocols.

Benefits

• Improved System Performance: Offloading communication tasks allows the main CPU to focus on critical processing functions, leading to faster response times.
• Enhanced Flexibility: The module’s two serial ports and support for RS-232 and RS-485 protocols provide versatility for connecting to a wide range of devices.
• Ease of Use: Designed for easy integration into existing Series 90-30 systems.
