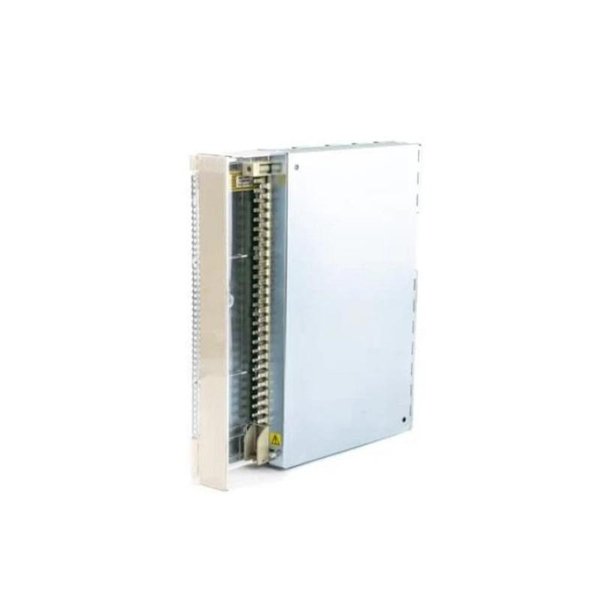

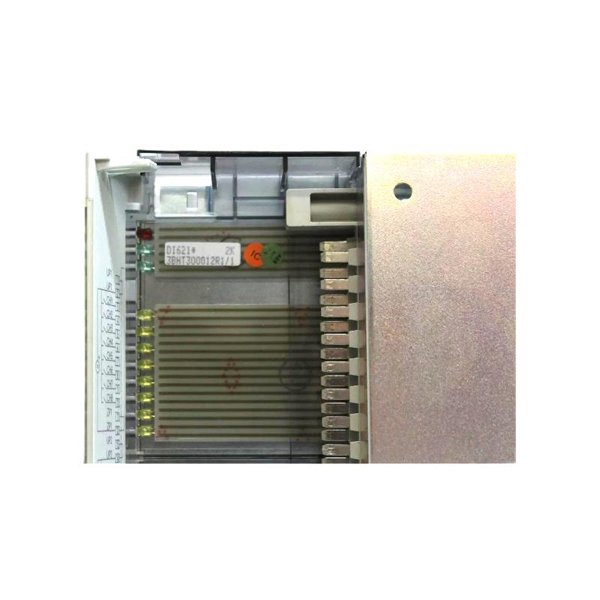

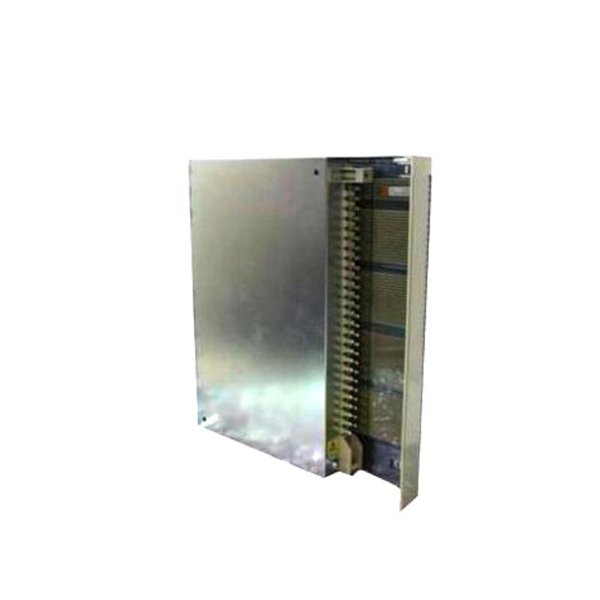

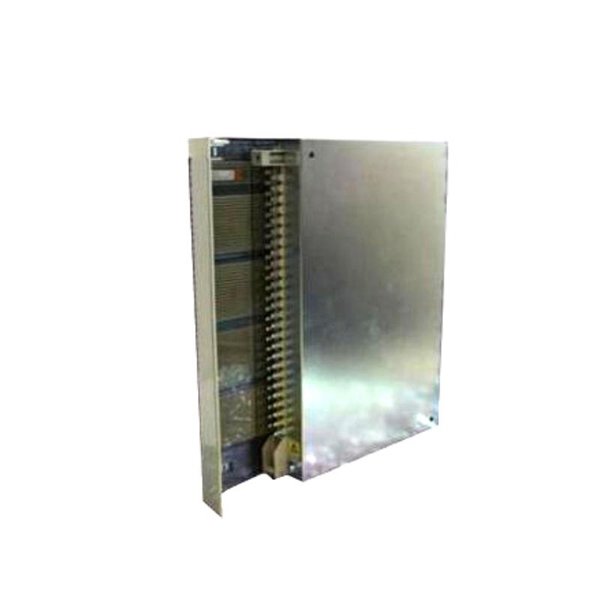

ABB DI621 3BHT300012R1 Digital Input Module

The ABB DI621 (Part Number: 3BHT300012R1) is a high-performance Digital Input Module developed as part of ABB’s Advant Controller 410/450 system platform. This industrial-grade module is purpose-built for demanding process automation tasks, offering reliable acquisition of binary input signals in real-time control environments.

With 32 opto-isolated input channels, the DI621 provides higher input density than earlier modules, minimizing panel space while maximizing functionality. It is designed to operate in harsh industrial conditions—making it suitable for a wide array of applications, from energy and utilities to oil & gas, chemical processing, and discrete manufacturing. Each input is protected, isolated, and monitored for robust signal integrity and safe operation.

As a native module in the Advant OCS family, the DI621 integrates seamlessly with ABB’s legacy and modern DCS infrastructures, supporting reliable field signal acquisition and contributing to the long-term success of mission-critical systems.

Technical Specifications

Applications

• Power Generation Facilities: For acquiring binary signals from turbine systems, breaker positions, and auxiliary relays.

• Oil & Gas Refineries: Monitors critical field devices like limit switches, pressure trip contacts, and shutdown logic inputs.

• Chemical and Pharmaceutical Plants: Interfaces with control logic elements for batch control, safety interlocks, and alarms.

• Water and Wastewater Treatment: Detects valve open/close status, flow switch states, and control system feedback signals.

• Steel & Metal Processing: Inputs from heavy-duty push buttons, safety doors, emergency stops, and more.

• Automotive & Assembly Lines: For real-time position detection, tool status, and conveyor belt tracking.

• Building Automation & Infrastructure: Integration with fire alarms, security systems, and monitoring contacts.

Key Advantages

• High-Density Input: 32 inputs in a compact module reduces space and cabling complexity.

• Robust Isolation: Optical channel isolation enhances system safety and reliability.

• Field-Proven Platform: Trusted by industry leaders for over two decades in continuous operation.

• Modular Architecture: Easily replaced or upgraded in modular DCS environments.

• Direct Integration: Seamlessly connects with ABB’s Advant and Symphony platforms.

• Clear Diagnostics: LED indicators and system tools assist in efficient troubleshooting.

• Durability & Ruggedness: Withstands temperature extremes, vibration, and electrical noise.

• Extended Lifecycle Support: Long-term availability of spares and engineering documentation from ABB.

Frequently Asked Questions (FAQ)

1. What is the difference between DI621 and DI610?

   DI621 has 32 input channels versus 16 in DI610, offering higher density in the same module format.

2. Can DI621 be used in redundant configurations?

   Yes, when integrated with redundancy-enabled Advant DCS architectures.

3. Are input channels isolated from each other?

   Each input is opto-isolated from the logic side but not from other inputs.

4. Is DI621 compatible with Symphony Plus?

   It is used in legacy Symphony DCI systems and is often part of migration to Symphony Plus.

5. Can I replace DI610 with DI621 directly?

   Electrical compatibility exists, but wiring and software changes are required due to different channel count.

6. What wiring method is used for field connections?

   Screw-type terminal blocks are standard for robust field wiring.

7. How much does the module weigh?

   The Module weight is 1.17 kg.

8. Is firmware upgradeable?

   No direct firmware upgrades are available. However, diagnostics are system-level and periodically updated.

9. Can it be used in marine or offshore applications?

   Yes, provided it is housed in certified enclosures with vibration and corrosion protection.

10. What tools are used to monitor or diagnose DI621?

    ABB’s Advant Engineering Tools and DCI System software are typically used for diagnostics.
