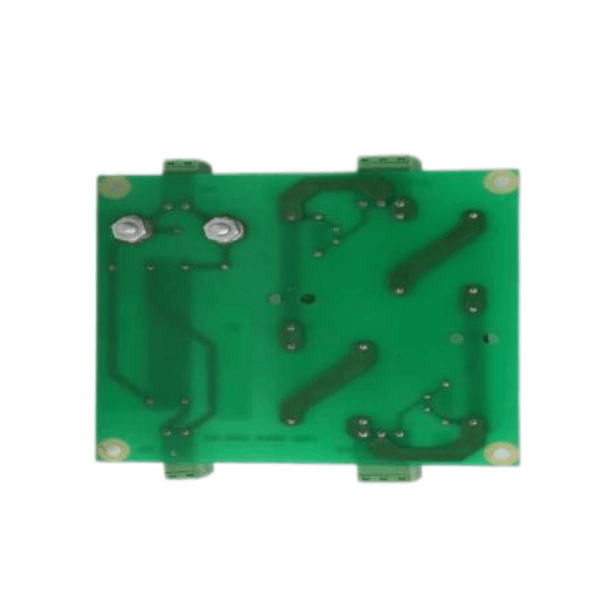

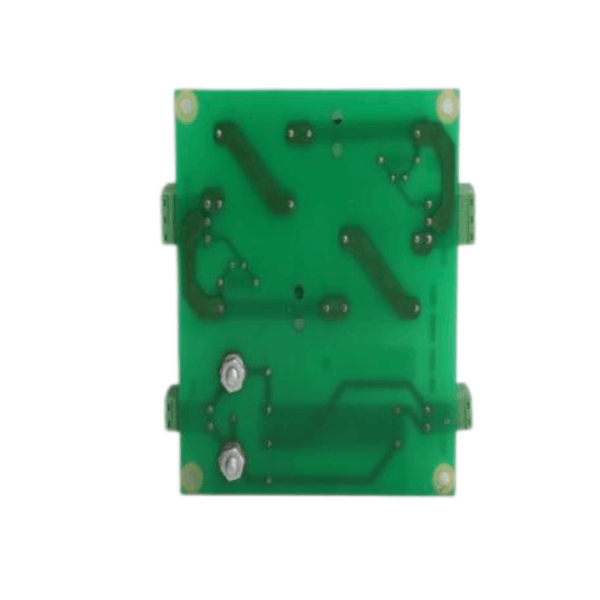

ABB SDCS-FEP-1 3BSE006309R1 On-site Protection Device

The ABB SDCS-FEP-1 3BSE006309R1 On-site Protection Device is a critical component designed to safeguard ABB drive systems and associated control architectures. This field protection unit provides fast, reliable detection of electrical anomalies such as overvoltage, undervoltage, short circuits, and ground faults, ensuring system stability and equipment longevity.

Designed for harsh industrial environments, the SDCS-FEP-1 seamlessly integrates with ABB’s drive control platforms, providing compact, rugged, and intelligent protection at the field level. Its real-time diagnostics and fault isolation capabilities reduce maintenance efforts and operational downtime.

Key Features

• Real-time protection for ABB drives and field equipment

• Supports fault detection for overvoltage, undervoltage, short circuit, and ground faults

• Compact design optimized for control cabinet installation

• High electrical insulation and robust mechanical construction

• Seamless integration with ABB SDCS and other drive systems

• Self-diagnostic functions with LED fault indication

• High durability for continuous operation in demanding environments

• Fast response time minimizes potential damage during fault events

Technical Specifications

Industry Applications

The ABB SDCS-FEP-1 3BSE006309R1 is ideal for industries requiring reliable, continuous operation of drives and field equipment:

• Metals & Mining: Protects motor drives in mining equipment, conveyors, crushers

• Pulp & Paper: Ensures drive stability for paper production machinery

• Oil & Gas: Field-level protection for offshore platforms, refineries, and pipelines

• Marine & Offshore: Safeguards propulsion and auxiliary systems

• Power Generation: Protects drives in turbine, generator, and energy conversion systems

• Manufacturing Automation: Drive protection for robotic and automated production lines

Product Advantages

• Enhanced Operational Safety: Rapid fault isolation protects personnel and equipment

• Improved System Reliability: Real-time monitoring reduces the risk of unexpected failures

• Reduced Downtime: Fast detection and isolation minimize process interruptions

• Cost-Effective Maintenance: Integrated diagnostics simplify troubleshooting

• Space-Saving Design: Compact dimensions enable flexible installation in tight spaces

• Compatibility: Fully integrates with ABB SDCS and related ABB control systems

• Robust Performance: Withstands harsh industrial conditions, including temperature fluctuations and vibration

• Long Service Life: Durable construction ensures extended operational longevity

Frequently Asked Questions (FAQ)

1. What is the main function of the ABB SDCS-FEP-1?

It provides on-site electrical protection for ABB drives, detecting faults like overvoltage, undervoltage, short circuits, and ground faults to prevent damage.

2. Is the SDCS-FEP-1 compatible with non-ABB systems?

The device is primarily designed for ABB SDCS and drive control platforms. Compatibility with third-party systems requires technical evaluation.

3. How fast does the SDCS-FEP-1 respond to faults?

It provides rapid protective responses within 10 milliseconds, minimizing the risk of equipment damage.

4. Can it operate in extreme industrial environments?

Yes, the device is rated for continuous operation between -25°C and +70°C, suitable for demanding conditions.

5. What diagnostic features are included?

Self-monitoring functions with LED indicators provide real-time fault status and simplify maintenance.

6. What are the physical size and weight of the device?

It measures 185mm x 120mm x 45 mm and weighs approximately 0.5 kg.

7. What kind of power supply does it require?

The SDCS-FEP-1 operates on a 24 V DC power supply, standard for industrial control systems.

8. Is the device certified for industrial use?

Yes, it complies with CE, RoHS, and UL certifications, depending on regional requirements.

9. Can the SDCS-FEP-1 be used for marine or offshore applications?

Yes, its rugged construction and insulation make it suitable for marine and offshore environments.

10. How does the SDCS-FEP-1 enhance system reliability?

It prevents faults from propagating by quickly isolating affected components, thereby improving system uptime and equipment protection.
