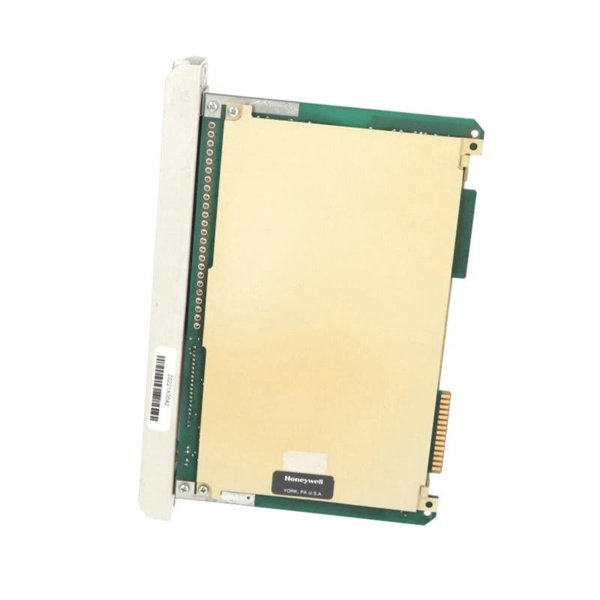

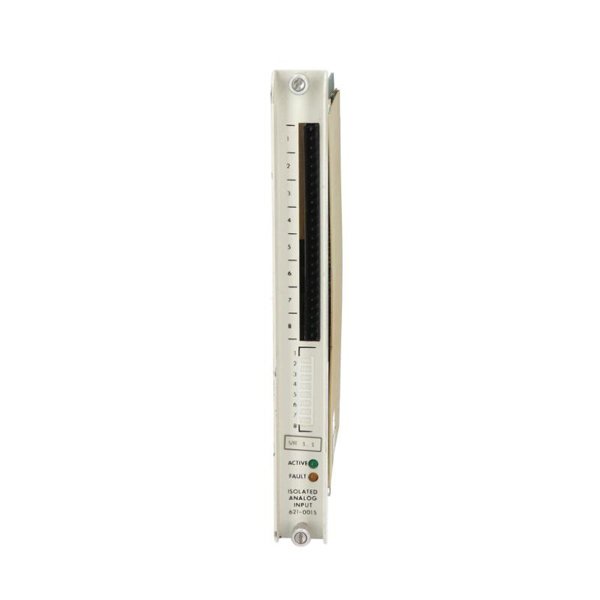

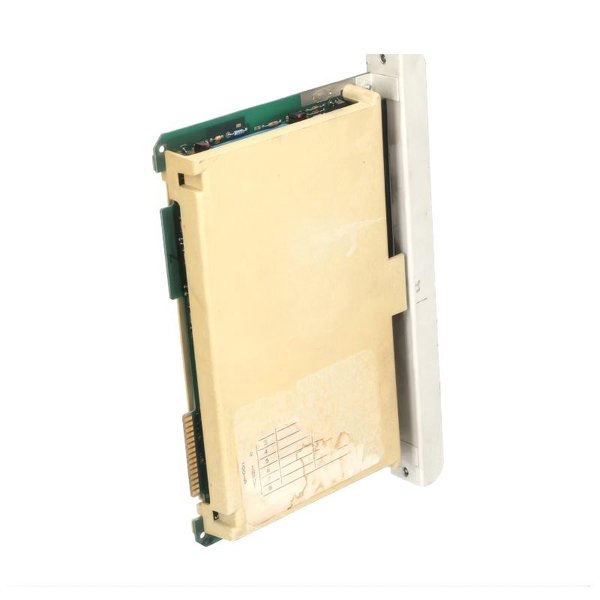

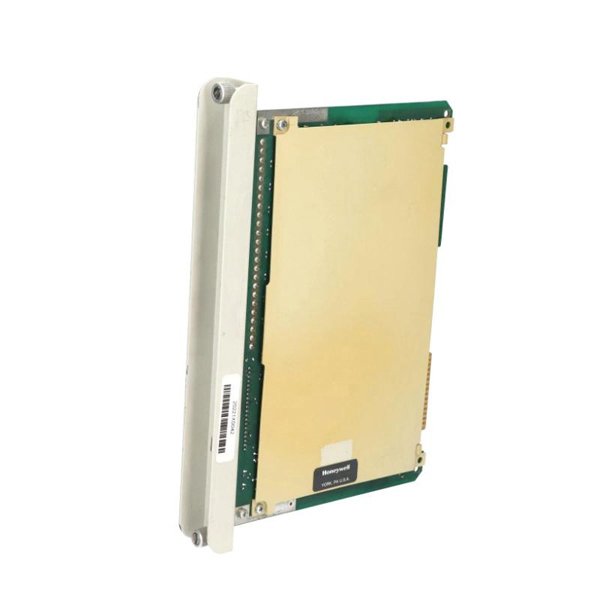

Honeywell 621-0015 Analog Input Module

The Honeywell 621-0015 Analog Input Module is a high-performance interface component designed for industrial automation systems, enabling the reliable acquisition of analog signals from a wide variety of field instruments. It converts continuous process variables, such as temperature, pressure, or flow, into precise digital data for processing by a control system. Known for its exceptional accuracy, robust build, and compatibility with Honeywell’s advanced control platforms, this module ensures consistent and high-quality data acquisition.

Engineered for use in demanding industrial environments, the 621-0015 module is built with durable materials, noise-resistant circuitry, and optimized signal conditioning. It is suitable for critical process control applications where accuracy, reliability, and long-term stability are essential.

Product Parameters

Product Applications

The Honeywell 621-0015 Analog Input Module is widely used in process automation and control systems across multiple industries:

• Petrochemical plants – For monitoring flow, temperature, and pressure in refining and chemical processes.

• Power generation facilities – For precise turbine, boiler, and generator parameter acquisition.

• Water and wastewater treatment – For level, pH, and conductivity monitoring.

• Pharmaceutical manufacturing – For ensuring strict process control in production lines.

• Food and beverage industry – For process parameter tracking to ensure quality and compliance.

• Pulp and paper mills – For temperature and pressure monitoring during production.

Product Advantages

• High accuracy and resolution for precise measurement and control.

• Robust isolation between channels to prevent signal interference.

• Flexible signal compatibility supporting both voltage and current inputs.

• Durable industrial-grade design for harsh environments.

• Easy integration with Honeywell control systems.

• Low power consumption for energy efficiency.

• High reliability with long operational life and minimal maintenance.

• Fast response time for real-time control applications.

FAQ

1. What signal types are supported by the 621-0015 module?

   The module supports configurable analog inputs, including 4–20 mA current loops and 0–10 V voltage signals.

2. Does the module offer isolation between channels?

   Yes, it provides channel-to-channel and channel-to-ground isolation to reduce cross-talk and improve measurement accuracy.

3. What is the resolution of the analog-to-digital conversion?

   The module offers 12-bit resolution or higher, ensuring precise data acquisition.

4. Can it be used in high-noise industrial environments?

   Yes, it features noise-resistant circuitry and robust shielding to handle EMI/RFI-prone environments.

5. How does the module communicate with the main controller?

   It uses Honeywell’s proprietary high-speed I/O bus for secure and reliable data transfer.

6. What is the typical power requirement?

   The module operates at 24 VDC nominal and consumes less than 10 W.

7. Is it compatible with redundant control configurations?

   Yes, the module is designed to work within redundant Honeywell control architectures.

8. Can the input ranges be configured individually for each channel?

   Yes, each input channel can be independently configured for voltage or current signals.

9. What environmental conditions can it withstand?

   It operates within 0°C to +60°C and can be stored between -40°C and +85°C with up to 95% non-condensing humidity.

10. Does it require calibration after installation?

    While factory-calibrated, periodic calibration is recommended for critical measurement accuracy in certain applications.
