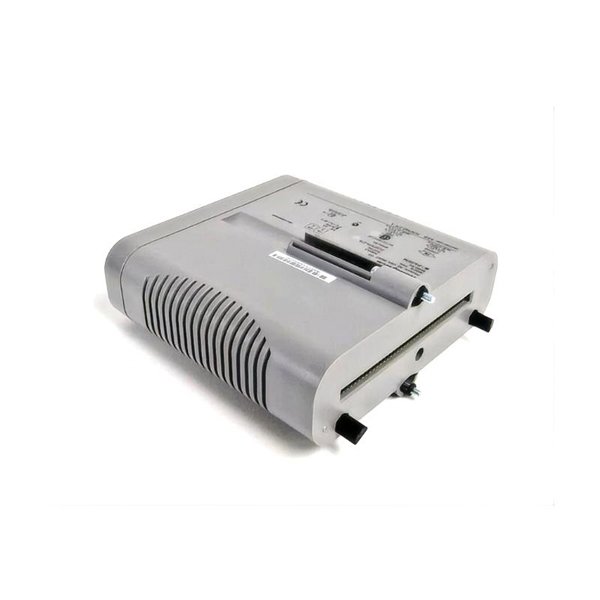

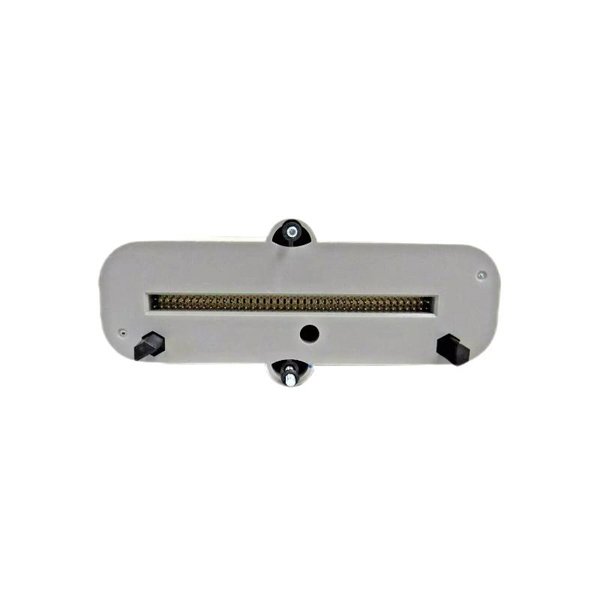

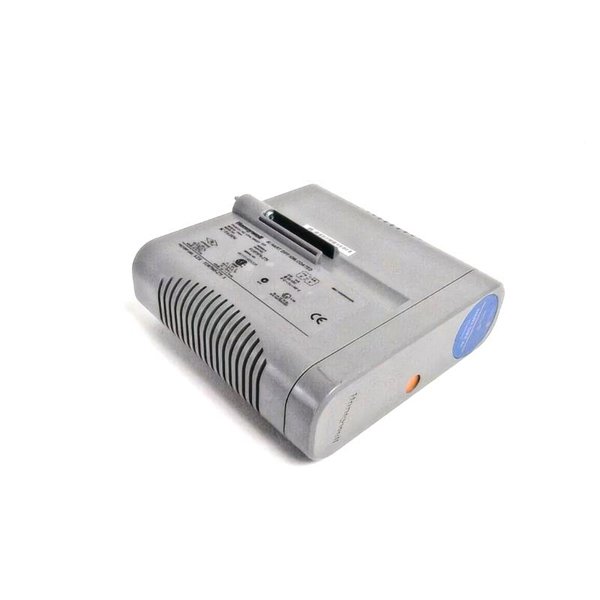

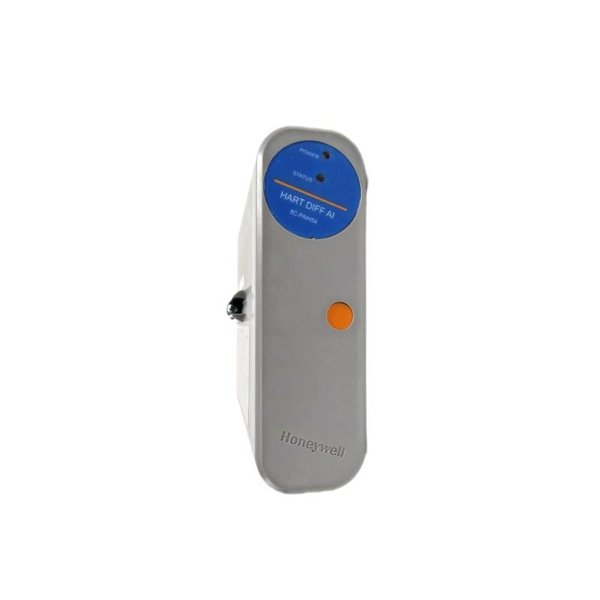

Honeywell 8C-PAIH54 51307070-275 Analog Input Module

The Honeywell 8C-PAIH54 Analog Input Module (P/N: 51307070-275) is an integral part of the C300 I/O architecture within the Honeywell Experion Process Knowledge System (PKS) family. Designed to deliver high-precision analog signal processing, the 8C-PAIH54 provides secure, isolated analog input channels capable of handling industrial-standard signals like 4-20mA, voltage, and HART-enabled devices. This module is especially suited for demanding process environments where signal integrity, redundancy, and system uptime are critical.

A major enhancement over previous modules, the 8C-PAIH54 brings expanded diagnostics, channel isolation, and hot-swap capability, all housed in a compact, DIN-rail mountable form factor. Its robust build and compatibility with Experion’s fault-tolerant control systems make it a highly reliable component in process automation networks.

Technical Specifications

Applications

The Honeywell 8C-PAIH54 module is purpose-built for industrial process automation and excels in sectors where accurate and timely analog signal acquisition is essential. Common deployment areas include:

• Petroleum Refineries and Chemical Plants

• Natural Gas Processing Facilities

• Thermal and Hydroelectric Power Stations

• Pharmaceutical and Biotech Manufacturing

• Food and Beverage Production

• Water Treatment and Distribution Plants

• Mining and Metallurgy Operations

• Marine and Offshore Oil Platforms

Whether it’s pressure, level, temperature, or flow signals—this module handles them all with precision.

Product Advantages

High Accuracy with Full Isolation

Ensures reliable signal integrity, even in electrically noisy environments.

HART Support for Smart Devices

Enables digital communication with field devices, simplifying diagnostics and configuration.

16 Channels with Compact Footprint

Space-efficient design reduces cabinet size and I/O wiring complexity.

Hot Swappable for Zero Downtime

Maintenance or replacement doesn’t interrupt process operations.

Integrated into Experion PKS

Seamless compatibility with Honeywell’s state-of-the-art process control systems.

Durability Across Environments

Industrial-grade specs suitable for harsh temperatures and high humidity zones.

Advanced Diagnostics

Real-time fault detection and health monitoring reduce troubleshooting time.

Frequently Asked Questions (FAQ)

1. What signals can the 8C-PAIH54 module read?

   It supports 4-20 mA, voltage signals (like 0-10V), and optional HART-enabled devices.

2. How many inputs does this module provide?

   The module supports 16 single-ended or 8 differential analog input channels.

3. Can the module be replaced during live operation?

   Yes, the 8C-PAIH54 is hot-swappable and designed for minimal process interruption.

4. Is HART communication supported out of the box?

   HART functionality is available via configuration.

5. What control systems does this module work with?

   It integrates directly with the Honeywell Experion PKS/C300 environment.

6. Is there any protection against signal noise?

   Yes, the module features full channel-to-channel and channel-to-ground isolation.

7. Can this module function in extreme temperatures?

   Absolutely. It operates from -40°C to +70°C.

8. What mounting options are available?

   The module mounts vertically on a DIN rail-based carrier.

9. What are the maintenance advantages of this module?

   Diagnostic feedback and hot-swap capability simplify and speed up maintenance.

10. Does it comply with international certifications?

    Yes. It complies with CE, UL, FM, CSA, and optionally ATEX certifications.
