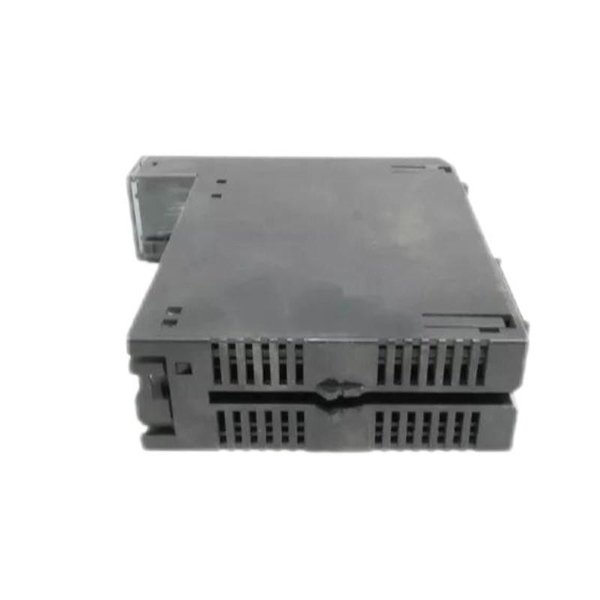

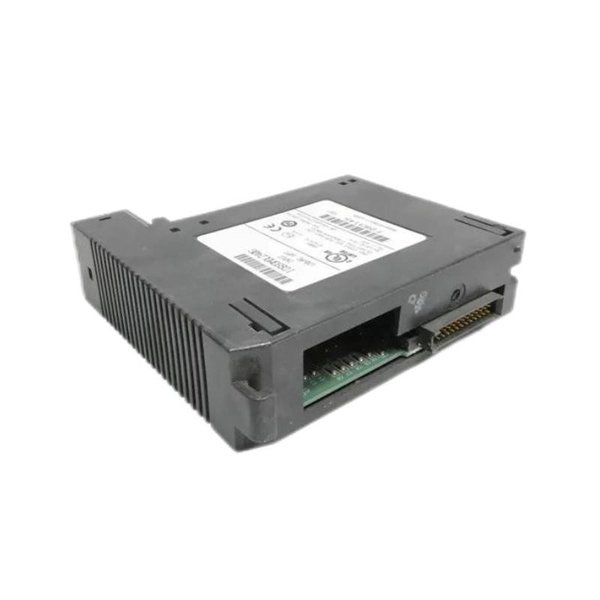

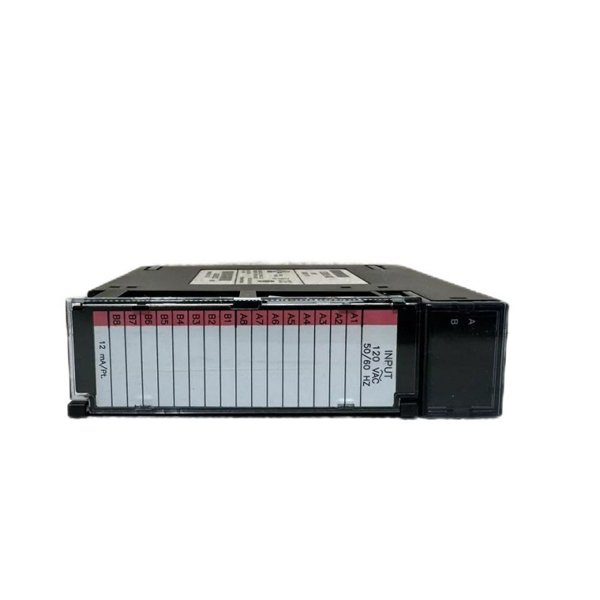

General Electric IC693MDL240G Input Module

The GE IC693MDL240G is a versatile AC input module designed for use in the GE Series 90-30 Programmable Logic Controller (PLC) systems. It supports 120/240 volts AC operation and features 16 input points organized into two isolated groups, enhancing flexibility in control applications. Widely trusted across industries, the IC693MDL240G enables reliable monitoring of field devices such as limit switches, pushbuttons, and sensors, making it indispensable in modern automation.

Product Advantages

The GE IC693MDL240G offers several notable benefits that set it apart:

• Wide Voltage Range: Supports both 120V AC and 240V AC, compatible with various plant environments.

• Group Isolation: Two isolated groups help reduce the risk of electrical interference, increasing system robustness.

• High Input Capacity: 16 input points for dense I/O configurations, saving space and simplifying wiring.

• Reliable Performance: Engineered by GE for long service life and dependable operation even under challenging industrial conditions.

• Modular Design: Fits seamlessly into Series 90-30 racks, supporting scalable system designs.

• Diagnostic LEDs: Each channel features status indication for easy troubleshooting and maintenance.

Technical Specifications

Product Applications

The IC693MDL240G is widely applied in:

• Factory automation systems

• Material handling equipment

• Packaging machinery

• Energy management and utilities

• Building management systems

• Industrial process control and monitoring

• Automotive assembly lines

• Water and wastewater treatment plants

Its flexible voltage range and robust isolation make it suitable wherever AC input monitoring is required.

Detailed Advantages

• Space Efficiency: 16 inputs packed into a single compact module.

• Ease of Integration: Compatible with the entire GE Series 90-30 ecosystem.

• Status LEDs: Facilitates rapid identification of input status during setup and maintenance.

• High Durability: Designed to withstand industrial environments with wide temperature range and vibration resistance.

• Simplified Wiring: Clear terminal labeling and removable terminal block reduce wiring errors.

• Long Service Life: Backed by GE’s engineering standards for reliability and durability.

FAQs (Frequently Asked Questions)

Q1: What voltage levels can the IC693MDL240G handle?

A1: It handles nominal 120V AC and 240V AC input signals at 50/60 Hz.

Q2: Is this module suitable for direct connection to field devices?

A2: Yes, it’s designed to connect directly to AC field devices like limit switches, sensors, and pushbuttons.

Q3: How many input points does it have?

A3: It provides 16 input channels organized into two isolated groups.

Q4: What type of logic does the IC693MDL240G use?

A4: Positive logic – an input is considered ON when the voltage is present.

Q5: Are input points individually isolated?

A5: Inputs within a group are not isolated from each other, but the two groups are isolated from each other and from the logic side.

Q6: Does it have status indicators?

A6: Yes, each input point has its own LED to show ON/OFF status.

Q7: Can it be used in outdoor environments?

A7: It is designed for indoor use within rated temperature and humidity limits.

Q8: What is the typical ON/OFF response time?

A8: 45 milliseconds.

Q9: How is it installed into a system?

A9: It mounts into a GE Series 90-30 rack and connects via a removable terminal block.

Q10: What is the approximate weight of the module?

A10: 0.3 kg.
