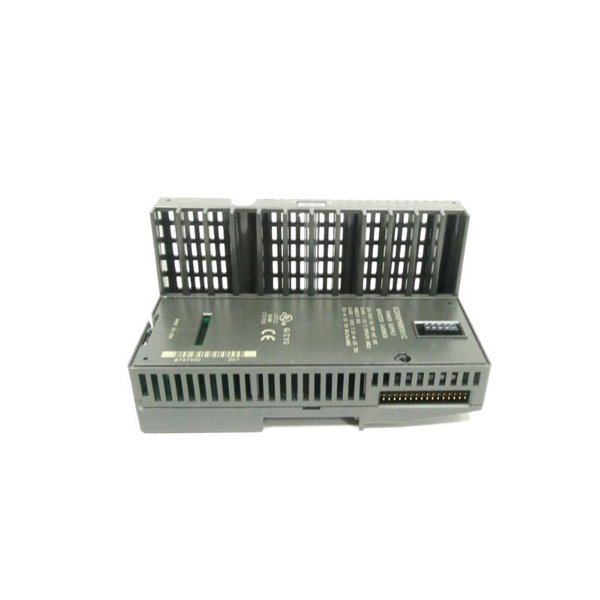

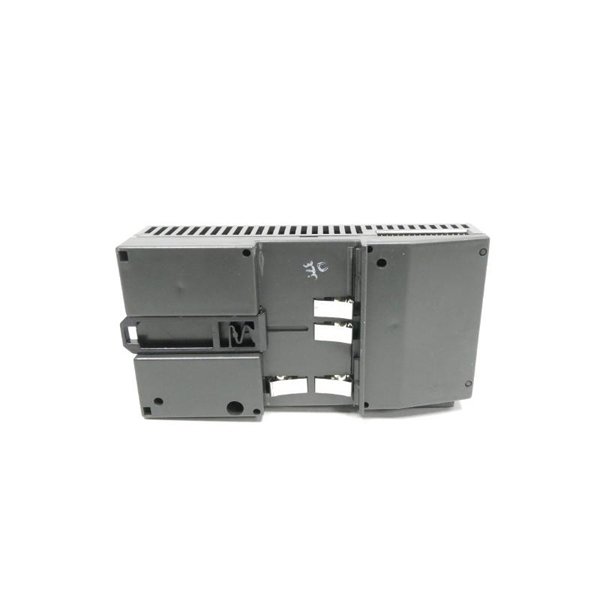

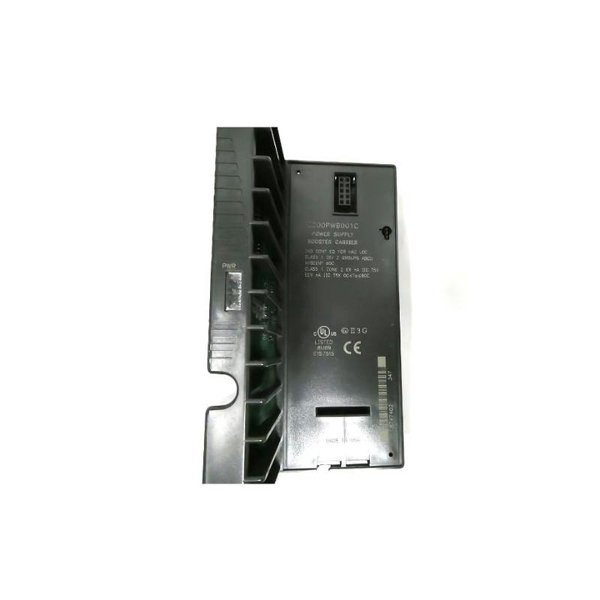

General Electric IC200PWB001C Power Supply Booster Carrier Module

​The GE IC200PWB001C is a Power Supply Booster Carrier Module designed for the VersaMax series. It facilitates the addition of extra power supplies to support additional I/O modules within an automation system. This module ensures that all modules to its right receive adequate power, thereby enhancing the system’s scalability and reliability. ​

Product Specifications

Product Applications

The IC200PWB001C is utilized in various industrial automation scenarios, including:​

1. Manufacturing Plants: Enhances the capacity of control systems by supporting additional I/O modules, facilitating complex manufacturing processes.​

2. Energy Sector: Supports extensive monitoring and control systems in power generation and distribution.​

3. Water Treatment Facilities: Enables the integration of multiple sensors and actuators for efficient water management.​

4. Automotive Industry: Assists in expanding control systems to accommodate additional machinery and robotics.​

5. Food and Beverage Industry: Supports the addition of control modules necessary for complex processing and packaging lines.​

Product Advantages

1. Scalability: Allows for the expansion of the control system by accommodating additional I/O modules without compromising performance.​

2. Flexibility: Compatible with standard VersaMax power supplies, eliminating the need for specialized units.​

3. Ease of Installation: Designed for DIN rail mounting, facilitating straightforward integration into existing systems.​

4. Reliability: Equipped with LED indicators for real-time status monitoring, ensuring system integrity.​

5. Compact Design: Occupies minimal space, allowing for efficient use of control cabinet real estate.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the IC200PWB001C module?

   • It serves as a booster carrier, allowing the addition of extra power supplies to support additional I/O modules in a VersaMax system.​

2. Is the IC200PWB001C compatible with all VersaMax power supplies?

   • Yes, it is designed to work seamlessly with standard VersaMax power supplies.​

3. Does the booster carrier occupy one of the I/O module slots?

   • No, the booster power supplies do not use up one of the 8 available module slots. ​

4. How is the IC200PWB001C mounted within the control system?

   • It is designed for DIN rail mounting, specifically 7.5mm x 35mm rails.​

5. What are the LED indicators on the module for?

   • The PWR LED indicates the proper operation of the attached booster supply, while the OK LED signifies the proper operation of the CPU/NIU and booster power supply.​

6. Can multiple booster carriers be used in a single system?

   • Yes, multiple booster carriers can be integrated to support extensive I/O module expansions.​

7. What is the operating temperature range of the IC200PWB001C?

   • It operates effectively within a temperature range of -20°C to +70°C.​

8. Is any special configuration required after installing the booster carrier?

   • No special configuration is necessary; it integrates seamlessly with the existing system.​

9. Does the booster carrier provide power to modules on both sides?

   • No, it supplies power to all modules to its right until the next booster power supply. ​

10. What precautions should be taken during installation?

    • Ensure that the DIN rail is properly grounded for EMC protection and that the rail finish is unpainted to provide a resistant surface.
