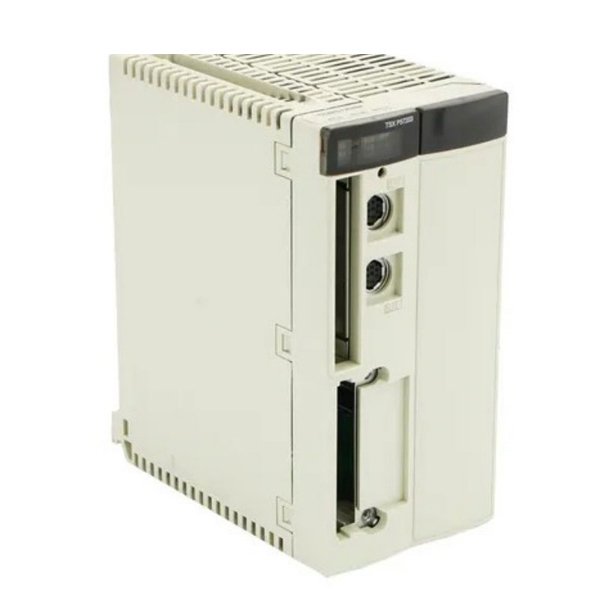

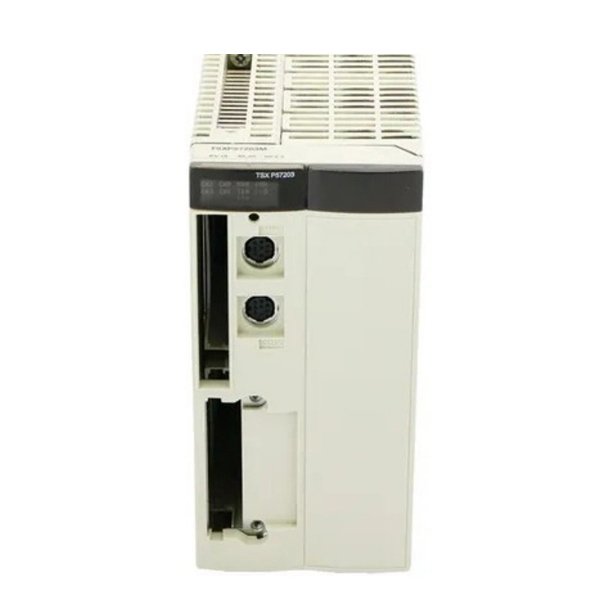

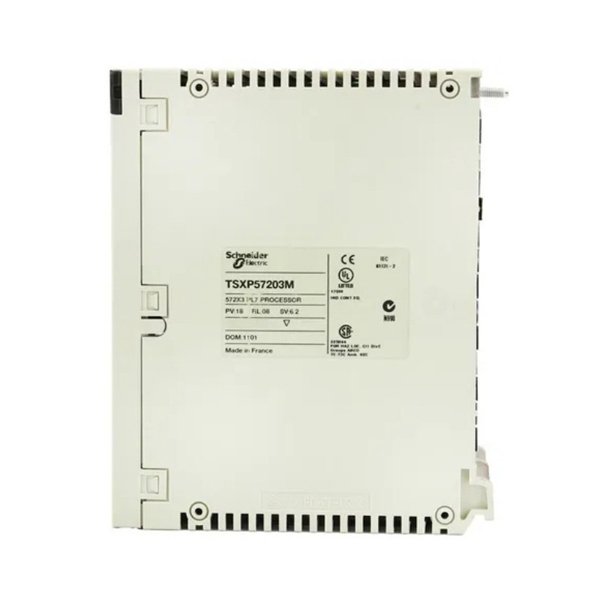

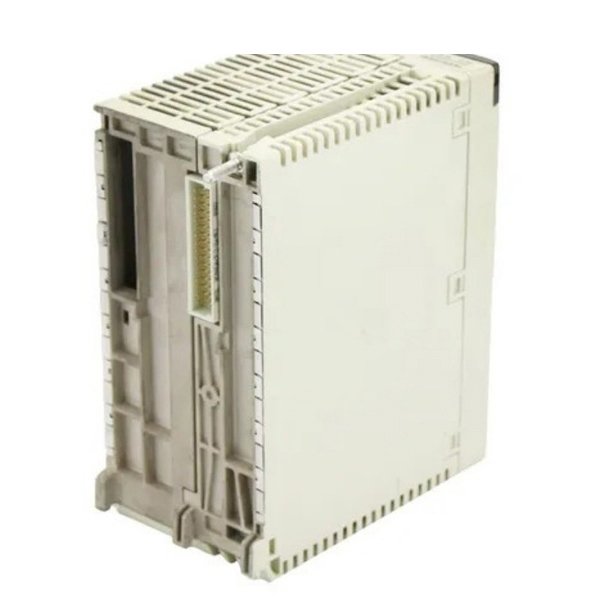

Schneider TSXP57203M Double Format PL7 processor
Manufacturer:Schneider
Product Number:TSXP57203M
Product Type:Double Format PL7 processor
Origin:France
Dimensions:95 x 180 x 260mm
Weight:0.52 kg
Views:39
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider TSXP57203M Double Format PL7 Processor is part of the renowned Modicon Premium Automation platform, designed for advanced and reliable control in demanding industrial environments. Tailored for complex automation tasks, this processor provides high processing power, robust memory capabilities, and seamless integration with various fieldbus and network modules. With its support for the PL7 Junior/Pro software, the TSXP57203M is engineered to deliver efficient automation solutions for a wide range of applications, from discrete manufacturing to complex process control.
Product Applications
The TSXP57203M processor is widely used in industrial settings requiring reliable and high-speed automation control. Typical applications include:
-
Manufacturing and Assembly Lines: Ensures fast processing and efficient I/O handling for synchronized operations.
-
Process Industries: Suitable for chemical, pharmaceutical, and food processing where precise control and process monitoring are critical.
-
Infrastructure Automation: Ideal for building automation, water treatment plants, and energy management systems.
-
Material Handling and Logistics: Supports complex sequencing and real-time data exchange in conveyor and sorting systems.
-
OEM Solutions: Provides flexibility for original equipment manufacturers integrating automation into custom machinery.
-
Remote Terminal Units (RTUs): Deployed in distributed control environments for data collection and remote supervision.
Technical Specifications
| Parameter | Value |
|---|---|
| Range of Product | Modicon Premium Automation Platform |
| Product Type | Double-format PL7 Processor |
| Software Supported | PL7 Junior/Pro |
| Number of Racks Supported | 16 (4/6/8 slots), 8 (12 slots) |
| Total Slots Supported | 64 / 96 / 128 |
| Discrete I/O Capacity | 1024 I/O |
| Analog I/O Capacity | 80 I/O |
| Application-Specific Channels | 24 |
| Process Control Channels | 10 up to 30 simple loops |
| Integrated Connection Type | Non-isolated serial link (2 female mini DIN, 19.2 kbit/s) |
| Fieldbus Modules Supported | 1 fieldbus module (none if CANopen used) |
| Network Modules Supported | 1 network module, 4 AS-Interface bus modules, 1 CANopen |
| Internal RAM (w/ PCMCIA card) | 48 Kwords data |
| Internal RAM (w/o PCMCIA card) | 48 Kwords program and data |
| PCMCIA Card Program Memory | 160 Kwords |
| PCMCIA Card Data Storage | 2688 Kwords additional |
| Max Object Areas | 30.5 %MWi internal words, 32 %KWi constant words, 8132 %Mi internal bits |
| Application Structure | 1 fast task, 1 master task, 64 event tasks |
| Execution Time (Boolean, no card) | 0.19 µs |
| Execution Time (Boolean, w/ card) | 0.21 µs |
| Execution Time (Word/FP, no card) | 0.25 µs / 2.6 µs (floating point) |
| Execution Time (Word/FP, w/ card) | 0.42 µs / 2.6 µs (floating point) |
| Instructions per ms | Up to 4.76 Kinst/ms (100% Boolean, no card) |
| System Overhead | 0.35 ms fast task, 1 ms master task |
| Current Consumption | 750 mA at 5 V DC |
| Module Format | Double |
| Dimensions (W x H x D) | 95 x 180 x 260 mm |
| Net Weight | 0.52 kg (1.15 lb) |
| Degree of Protection | IP20 |
| Protection Treatment | TC |
| Pollution Degree | 2 |
| Marking | CE, UL, CSA, DNV, GL, RINA, BV, ABS, RMRS, LR |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -25…70 °C (-13…158 °F) |
| Operating Altitude | 0…2000 m (0…6561.68 ft) |
| Relative Humidity (operation) | 10…95% without condensation |
| Relative Humidity (storage) | 5…95% without condensation |
| Standards | CSA C22.2 No 142, UL 508, IEC 61131-2, 89/336/EEC, 73/23/EEC, others |
| Certifications | LR, DNV, RMRS, GL, RINA, BV, ABS |
| LED Indicators | RUN (green), I/O (red), ERR (red), TER (yellow) |
Product Advantages
-
High Performance: Fast execution times for Boolean and arithmetic instructions, supporting complex automation sequences.
-
Flexible Memory Options: Large onboard and expandable memory with PCMCIA support allows for extensive program and data storage.
-
Scalable Architecture: Supports multiple racks and large I/O counts, suitable for expanding system requirements.
-
Comprehensive Communication: Integrated serial link and support for various fieldbus modules enhance connectivity.
-
Robust Design: Built to industrial standards with IP20 protection and a wide operating temperature range, ensuring reliability in harsh environments.
-
Event Handling: Capable of managing up to 64 event tasks, supporting dynamic and responsive process control.
-
Certifications: Meets a range of international certifications, making it suitable for use in globally regulated industries.
-
User-Friendly Diagnostics: Clear LED indicators simplify troubleshooting and system monitoring.
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of I/O points supported by the TSXP57203M processor?
A1: The processor supports up to 1024 discrete I/O points and 80 analog I/O points.
Q2: Which software is compatible with the TSXP57203M?
A2: The processor is compatible with PL7 Junior and PL7 Pro programming software.
Q3: What is the main application of this processor in industrial automation?
A3: The processor is primarily used for discrete and process automation in industries such as manufacturing, water treatment, and infrastructure.
Q4: How is memory expanded on the TSXP57203M?
A4: Memory can be expanded using a PCMCIA card, allowing up to 160 Kwords for programs and 2688 Kwords for additional data.
Q5: What types of communication modules are supported?
A5: The TSXP57203M supports fieldbus modules, network modules, AS-Interface bus modules, and CANopen.
Q6: What environmental conditions can the processor withstand?
A6: The unit operates within a temperature range of 0…60 °C, relative humidity of 10–95% (operation), and at altitudes up to 2000 meters.
Q7: What certifications does the TSXP57203M possess?
A7: The processor is certified by LR, DNV, RMRS, GL, RINA, BV, ABS, and is compliant with CE, UL, and CSA standards.
Q8: How does the processor indicate faults or errors?
A8: LED indicators on the front panel show status for processor operation (RUN), I/O faults, system errors (ERR), and terminal port activity (TER).
Q9: What are the physical dimensions and weight of the processor?
A9: The processor measures 95 x 180 x 260 mm and weighs 0.52 kg.
Q10: What is the degree of protection provided by this model?
A10: The TSXP57203M has an IP20 degree of protection.
Loading comments...
Schneider TSXP57203M Double Format PL7 processor
Manufacturer:Schneider
Product Number:TSXP57203M
Product Type:Double Format PL7 processor
Origin:France
Dimensions:95 x 180 x 260mm
Weight:0.52 kg
Views:39
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider TSXP57203M Double Format PL7 Processor is part of the renowned Modicon Premium Automation platform, designed for advanced and reliable control in demanding industrial environments. Tailored for complex automation tasks, this processor provides high processing power, robust memory capabilities, and seamless integration with various fieldbus and network modules. With its support for the PL7 Junior/Pro software, the TSXP57203M is engineered to deliver efficient automation solutions for a wide range of applications, from discrete manufacturing to complex process control.
Product Applications
The TSXP57203M processor is widely used in industrial settings requiring reliable and high-speed automation control. Typical applications include:
-
Manufacturing and Assembly Lines: Ensures fast processing and efficient I/O handling for synchronized operations.
-
Process Industries: Suitable for chemical, pharmaceutical, and food processing where precise control and process monitoring are critical.
-
Infrastructure Automation: Ideal for building automation, water treatment plants, and energy management systems.
-
Material Handling and Logistics: Supports complex sequencing and real-time data exchange in conveyor and sorting systems.
-
OEM Solutions: Provides flexibility for original equipment manufacturers integrating automation into custom machinery.
-
Remote Terminal Units (RTUs): Deployed in distributed control environments for data collection and remote supervision.
Technical Specifications
| Parameter | Value |
|---|---|
| Range of Product | Modicon Premium Automation Platform |
| Product Type | Double-format PL7 Processor |
| Software Supported | PL7 Junior/Pro |
| Number of Racks Supported | 16 (4/6/8 slots), 8 (12 slots) |
| Total Slots Supported | 64 / 96 / 128 |
| Discrete I/O Capacity | 1024 I/O |
| Analog I/O Capacity | 80 I/O |
| Application-Specific Channels | 24 |
| Process Control Channels | 10 up to 30 simple loops |
| Integrated Connection Type | Non-isolated serial link (2 female mini DIN, 19.2 kbit/s) |
| Fieldbus Modules Supported | 1 fieldbus module (none if CANopen used) |
| Network Modules Supported | 1 network module, 4 AS-Interface bus modules, 1 CANopen |
| Internal RAM (w/ PCMCIA card) | 48 Kwords data |
| Internal RAM (w/o PCMCIA card) | 48 Kwords program and data |
| PCMCIA Card Program Memory | 160 Kwords |
| PCMCIA Card Data Storage | 2688 Kwords additional |
| Max Object Areas | 30.5 %MWi internal words, 32 %KWi constant words, 8132 %Mi internal bits |
| Application Structure | 1 fast task, 1 master task, 64 event tasks |
| Execution Time (Boolean, no card) | 0.19 µs |
| Execution Time (Boolean, w/ card) | 0.21 µs |
| Execution Time (Word/FP, no card) | 0.25 µs / 2.6 µs (floating point) |
| Execution Time (Word/FP, w/ card) | 0.42 µs / 2.6 µs (floating point) |
| Instructions per ms | Up to 4.76 Kinst/ms (100% Boolean, no card) |
| System Overhead | 0.35 ms fast task, 1 ms master task |
| Current Consumption | 750 mA at 5 V DC |
| Module Format | Double |
| Dimensions (W x H x D) | 95 x 180 x 260 mm |
| Net Weight | 0.52 kg (1.15 lb) |
| Degree of Protection | IP20 |
| Protection Treatment | TC |
| Pollution Degree | 2 |
| Marking | CE, UL, CSA, DNV, GL, RINA, BV, ABS, RMRS, LR |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -25…70 °C (-13…158 °F) |
| Operating Altitude | 0…2000 m (0…6561.68 ft) |
| Relative Humidity (operation) | 10…95% without condensation |
| Relative Humidity (storage) | 5…95% without condensation |
| Standards | CSA C22.2 No 142, UL 508, IEC 61131-2, 89/336/EEC, 73/23/EEC, others |
| Certifications | LR, DNV, RMRS, GL, RINA, BV, ABS |
| LED Indicators | RUN (green), I/O (red), ERR (red), TER (yellow) |
Product Advantages
-
High Performance: Fast execution times for Boolean and arithmetic instructions, supporting complex automation sequences.
-
Flexible Memory Options: Large onboard and expandable memory with PCMCIA support allows for extensive program and data storage.
-
Scalable Architecture: Supports multiple racks and large I/O counts, suitable for expanding system requirements.
-
Comprehensive Communication: Integrated serial link and support for various fieldbus modules enhance connectivity.
-
Robust Design: Built to industrial standards with IP20 protection and a wide operating temperature range, ensuring reliability in harsh environments.
-
Event Handling: Capable of managing up to 64 event tasks, supporting dynamic and responsive process control.
-
Certifications: Meets a range of international certifications, making it suitable for use in globally regulated industries.
-
User-Friendly Diagnostics: Clear LED indicators simplify troubleshooting and system monitoring.
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of I/O points supported by the TSXP57203M processor?
A1: The processor supports up to 1024 discrete I/O points and 80 analog I/O points.
Q2: Which software is compatible with the TSXP57203M?
A2: The processor is compatible with PL7 Junior and PL7 Pro programming software.
Q3: What is the main application of this processor in industrial automation?
A3: The processor is primarily used for discrete and process automation in industries such as manufacturing, water treatment, and infrastructure.
Q4: How is memory expanded on the TSXP57203M?
A4: Memory can be expanded using a PCMCIA card, allowing up to 160 Kwords for programs and 2688 Kwords for additional data.
Q5: What types of communication modules are supported?
A5: The TSXP57203M supports fieldbus modules, network modules, AS-Interface bus modules, and CANopen.
Q6: What environmental conditions can the processor withstand?
A6: The unit operates within a temperature range of 0…60 °C, relative humidity of 10–95% (operation), and at altitudes up to 2000 meters.
Q7: What certifications does the TSXP57203M possess?
A7: The processor is certified by LR, DNV, RMRS, GL, RINA, BV, ABS, and is compliant with CE, UL, and CSA standards.
Q8: How does the processor indicate faults or errors?
A8: LED indicators on the front panel show status for processor operation (RUN), I/O faults, system errors (ERR), and terminal port activity (TER).
Q9: What are the physical dimensions and weight of the processor?
A9: The processor measures 95 x 180 x 260 mm and weighs 0.52 kg.
Q10: What is the degree of protection provided by this model?
A10: The TSXP57203M has an IP20 degree of protection.
