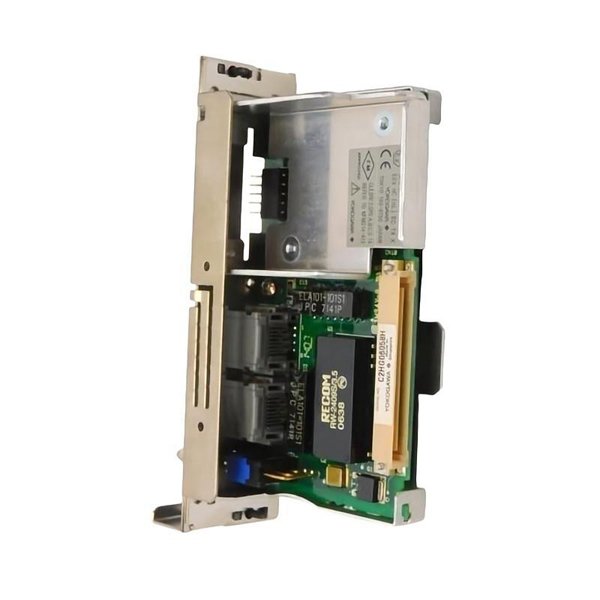

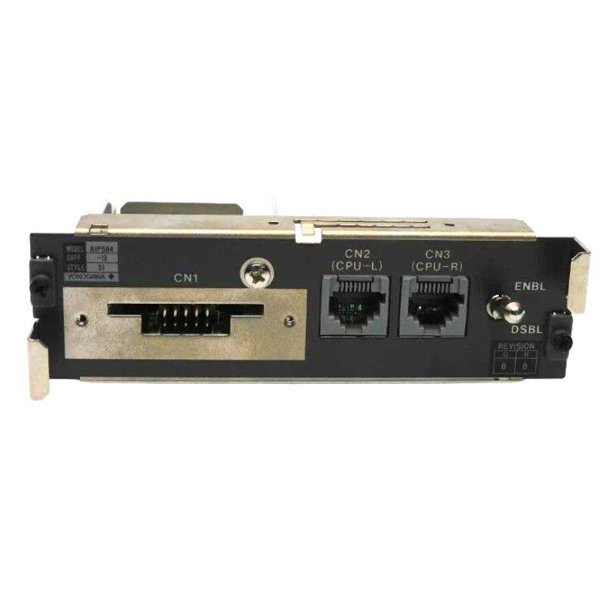

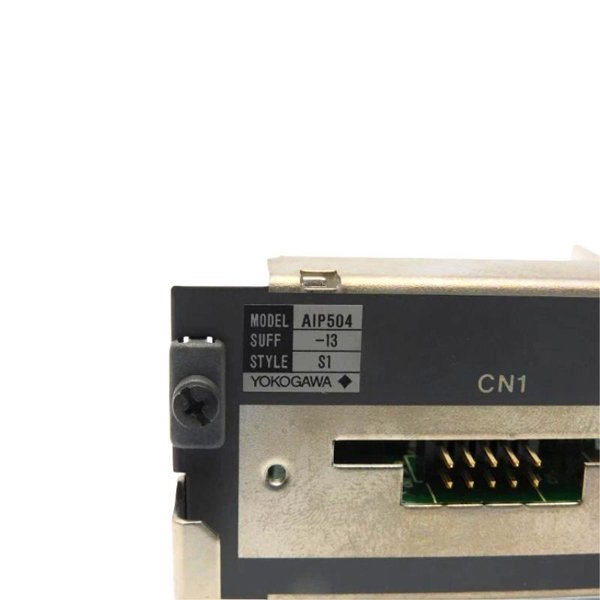

Yokogawa AIP504-13 S1 V Net Coupler Unit

The Yokogawa AIP504-13 S1 V Net Coupler Unit is a next-generation communication interface module designed for the CENTUM VP distributed control system (DCS) and related Yokogawa automation platforms. It builds upon the proven reliability of the AIP504 family, introducing enhanced stability, extended diagnostics, and robust redundancy features to meet the demands of mission-critical industries.

Functioning as a communication bridge within the V Net control network, the AIP504-13 S1 ensures high-speed and reliable data transfer between field control stations (FCS), human interface stations (HIS), and engineering workstations (EWS). This unit is optimized for continuous 24/7 operation, minimizing downtime and supporting scalable industrial networking.

The AIP504-13 S1 is a trusted solution across industries such as oil and gas, petrochemical, chemical processing, pharmaceuticals, steel, and power generation, where reliability and deterministic communication are paramount.

Product Parameters

Product Applications

The AIP504-13 S1 V Net Coupler Unit is tailored for demanding industrial environments requiring real-time communication and continuous availability. Its main applications include:

• Control System Backbone: Acts as the central communication link between control and operator stations.

• Redundant Plant Networks: Ensures seamless switchover during hardware or network failures.

• Safety Integration: Enables tight coupling with ProSafe-RS safety instrumented systems for integrated process safety.

• Plant Modernization: Supports backward compatibility while allowing network upgrades and expansions.

• Industrial Synchronization: Maintains deterministic data flow for stable and synchronized plant operation.

• Critical Infrastructure: Widely used in refineries, LNG terminals, power stations, and advanced chemical plants.

Product Advantages

• Enhanced Redundancy: Dual redundant communication paths ensure system reliability in all operating conditions.

• Deterministic Performance: Guarantees predictable communication timing, essential for complex process control.

• Hot-Swap Maintenance: Modules can be replaced without system shutdown in redundant configurations.

• Comprehensive Diagnostics: Built-in monitoring, alarms, and logging features support proactive troubleshooting.

• Scalability: Allows easy expansion of the V Net network to accommodate plant growth.

• Industrial Robustness: Resistant to electrical noise, vibration, and harsh environments.

• Seamless Integration: Fully compatible with CENTUM VP and ProSafe-RS platforms, ensuring long-term support.

• Lifecycle Stability: Designed to provide decades of operational reliability in continuous 24/7 environments.

FAQ

1. What distinguishes the AIP504-13 S1 from the standard AIP504-13?

   The S1 version offers enhanced diagnostics and stability features for higher reliability.

2. Does the AIP504-13 S1 support dual redundant configurations?

   Yes, it supports full dual redundancy with automatic switchover.

3. Which systems are compatible with the AIP504-13 S1?

   It is compatible with CENTUM VP and ProSafe-RS, as well as other Yokogawa automation platforms.

4. Can the AIP504-13 S1 be integrated into existing V Net networks?

   Yes, it is fully backward compatible, making it suitable for plant upgrades.

5. How does the unit ensure communication integrity?

   It uses CRC error detection, real-time monitoring, and galvanic isolation for robust performance.

6. Is hot-swap replacement supported by this unit?

   Yes, when used in a redundant configuration, the module can be replaced without downtime.

7. What network topologies are supported?

   It supports star and bus topologies with redundancy.

8. Does the AIP504-13 S1 provide diagnostic feedback?

   Yes, it includes self-check, error logging, and health monitoring functions.

9. How does the unit integrate with ProSafe-RS safety systems?

   It provides seamless communication links between process control and safety instrumented systems.

10. Is the AIP504-13 S1 suitable for large-scale expansions?

    Yes, it is specifically designed for scalability and reliability in expanding networks.
