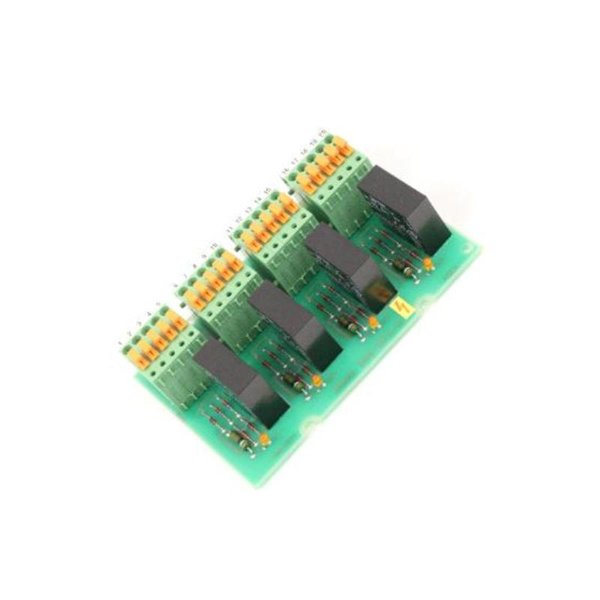

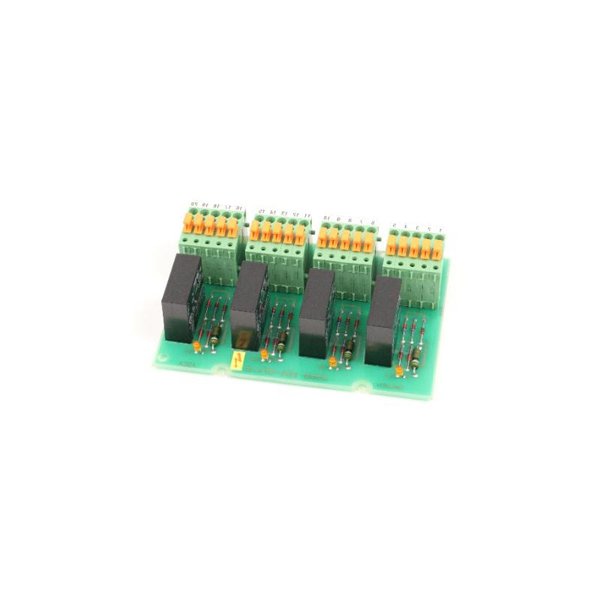

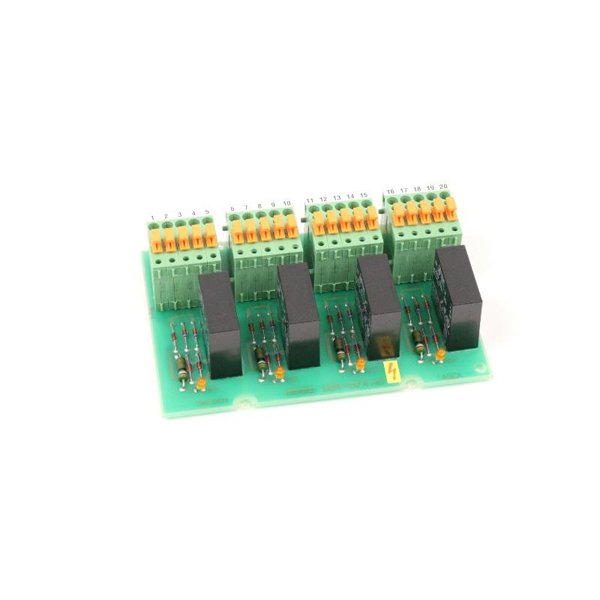

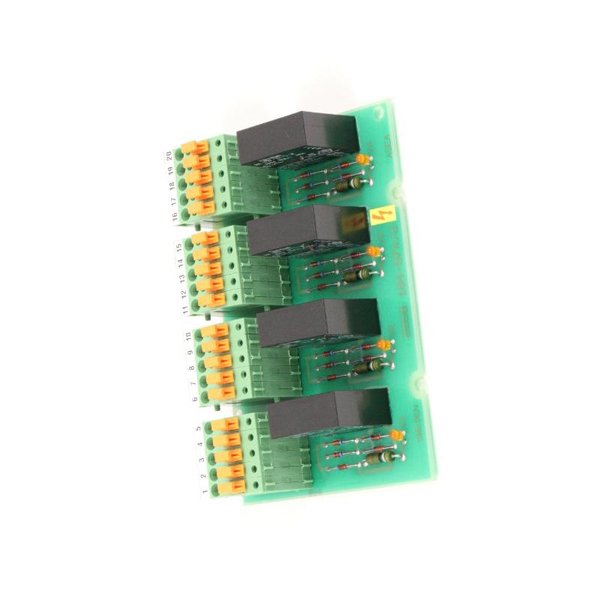

ABB PFUK108 YM110001-SH Relay Board

This specific model, YM110001-SH, stands out in signal conditioning and terminal connectivity. It is designed to operate in rigorous industrial environments including chemical, power, and oil & gas facilities. Its layout supports high-density signal termination, making it ideal for large-scale control cabinet configurations.

Product Advantages

• Reliable Signal Interface: Ensures accurate and stable signal transmission from field devices to control systems.

• Space-saving Design: Compact form factor allows for high-density mounting in cabinets.

• Durable Build: Industrial-grade materials provide excellent resistance to vibration, dust, and temperature fluctuations.

• Modular Compatibility: Fully compatible with ABB’s control and I/O systems, including Symphony Plus and Freelance.

• Low Maintenance: Terminal design and labeling support easy identification and replacement.

• Efficient Wiring: Facilitates clean, organized wiring and minimizes signal interference.

Technical Specifications

Product Applications

• Power Generation Plants: Termination of analog and digital signals from turbines, transformers, and control valves.

• Oil & Gas: Used in upstream and midstream automation for reliable field-to-controller communication.

• Chemical Processing: Ideal for connecting field instruments in hazardous and corrosive environments.

• Water Treatment Facilities: Supports monitoring and control of pumps, sensors, and valves.

• Manufacturing Automation: Integrates with DCS/PLC systems to manage industrial processes.

• Substation Automation: Suitable for interfacing with SCADA-connected remote terminal units.

Product Advantages Recap

• Seamless integration into ABB automation environments.

• Accurate, secure field signal wiring interface.

• Easy installation, labeling, and maintenance.

• Robust for harsh industrial environments.

• Modular design for customization and expansion.

• Helps reduce wiring errors and maintenance costs.

Frequently Asked Questions (FAQ)

Q1: What type of control system is the PFUK108 YM110001-SH compatible with?

A1: It is compatible with ABB Symphony Plus, Freelance, and Advant MOD DCS systems.

Q2: Is this terminal unit suitable for analog or digital signals?

A2: It can be configured for both analog and digital signal termination depending on the connected modules.

Q3: Can this product be mounted directly onto DIN rails?

A3: Yes, it supports DIN rail as well as panel mounting options.

Q4: What is the typical use case for this product in a power plant?

A4: It is used for signal termination from field devices like pressure transmitters, temperature sensors, and control relays.

Q5: Is this product certified for industrial use?

A5: Yes, it meets CE, RoHS, and UL standards for industrial environments.

Q6: Does it require special tools for wiring?

A6: No, standard screwdriver tools are sufficient for the screw-type terminals.

Q7: How many channels does this unit support?

A7: It supports at least 8 signal channels; the exact number depends on system configuration.

Q8: Is the unit hot-swappable?

A8: No, it is not designed for hot-swap. Ensure system power is off during installation or maintenance.

Q9: What materials are used in construction?

A9: It is made with flame-retardant, industrial-grade plastic and corrosion-resistant metals.

Q10: Is there a shield grounding feature?

A10: Yes, dedicated grounding points are provided for shielded cable termination.
