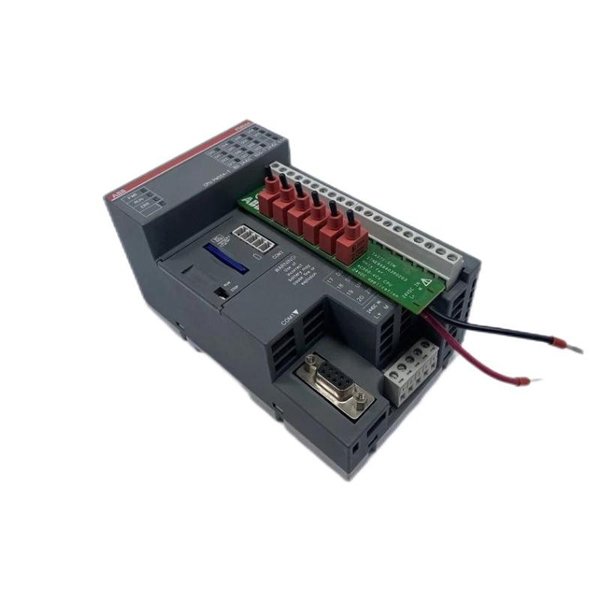

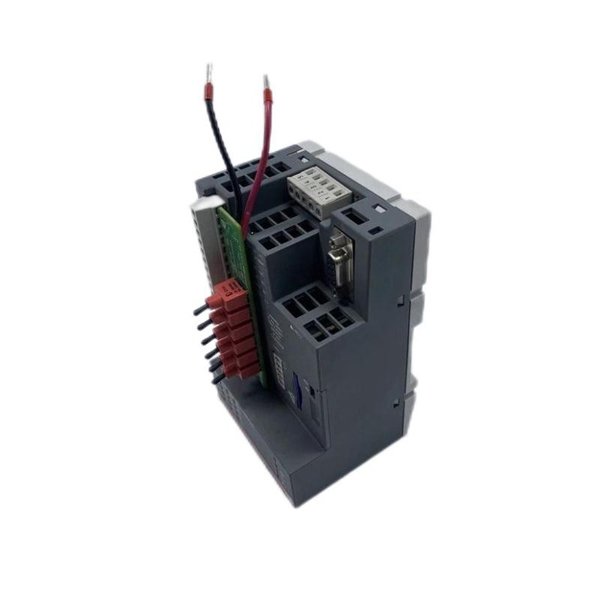

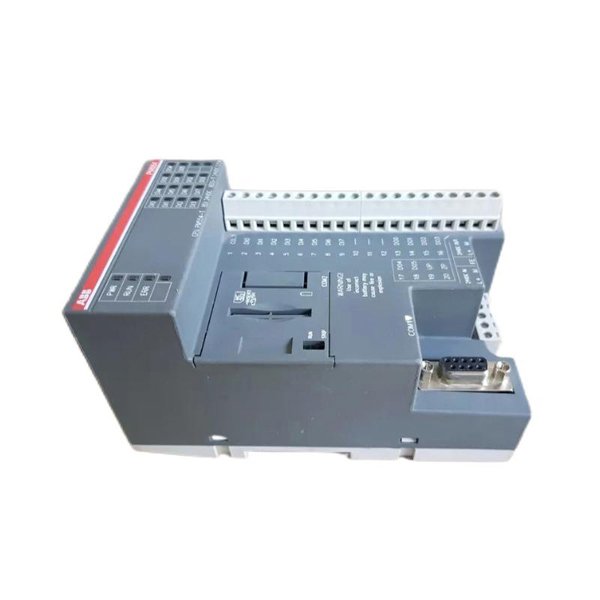

ABB PM554-T 1TNE968900R0100 CPU Processor Unit

The ABB PM554-T 1TNE968900R0100 CPU Processor Unit is a high-performance, compact PLC controller designed for small to medium-sized automation tasks across diverse industrial applications. As part of ABB’s well-established AC500-eCo programmable logic controller (PLC) platform, the PM554-T offers a cost-effective, space-efficient, and reliable solution for machine control, building automation, and distributed system operations.

With integrated Ethernet communication, flexible programming options, and robust I/O capacity, this processor is optimized for straightforward integration into control systems requiring dependable real-time logic execution and network connectivity. Its compact design and durability make it ideal for installations in demanding industrial environments where space and system reliability are critical.

Key Features

• Compact, modular PLC CPU with integrated Ethernet interface

• Optimized for small and mid-scale machine control and automation tasks

• Supports real-time logic execution for precise process control

• Integrated 10/100 Mbps Ethernet port for remote access and network communication

• Built-in digital I/O channels for direct field device connections

• Space-saving design suitable for DIN rail mounting

• Robust industrial construction for harsh operating environments

• Fully compatible with ABB AC500-eCo system architecture

• CE, UL, and RoHS certified for global industrial applications

• Flexible programming using ABB’s Automation Builder engineering suite

Technical Specifications

Product Advantages

• Compact Design: Space-efficient CPU suitable for control cabinets and limited installation spaces

• Integrated Ethernet Connectivity: Facilitates remote access, programming, and system communication

• Built-in Digital I/O: Provides immediate connection to field devices, reducing wiring complexity

• Real-Time Control: Fast logic execution ensures precise system performance in automation processes

• Rugged Industrial Construction: Withstands vibration, electrical noise, and challenging environmental conditions

• Global Certification Compliance: CE, UL, and RoHS certifications ensure suitability for international use

• Seamless System Integration: Fully compatible with ABB AC500-eCo PLC systems and engineering tools

• Flexible Communication Options: Ethernet and RS485 interfaces enable integration with SCADA and remote monitoring

• Energy-Efficient Operation: Low power consumption contributes to operational cost savings

• Minimal Maintenance Requirements: Designed for high reliability and reduced system downtime

Industry Applications

The ABB PM554-T 1TNE968900R0100 CPU Processor Unit is widely deployed in:

• Machine Automation: Control of assembly lines, packaging equipment, and conveyor systems

• Building Automation: Management of HVAC systems, lighting, and security infrastructure

• Water and Wastewater Management: Process automation for pumping stations and treatment plants

• Energy and Utilities: Remote monitoring and control of energy distribution and renewable systems

• Material Handling: Control of automated storage, sorting, and transportation equipment

• Food and Beverage Processing: Ensures consistent and reliable production control

• Agricultural Automation: Management of irrigation systems and automated farm machinery

• OEM and Equipment Integration: Suitable for compact control solutions in custom machinery

Frequently Asked Questions (FAQ)

Q1: What is the primary use of the PM554-T CPU?

It is designed for small to mid-sized automation tasks within ABB AC500-eCo PLC systems.

Q2: Does the PM554-T include Ethernet connectivity?

Yes, it features an integrated 10/100 Mbps Ethernet port for networking and remote access.

Q3: How many integrated I/O channels does the module offer?

It provides 8 digital inputs and 6 transistor digital outputs.

Q4: Can the PM554-T be expanded with additional I/O modules?

Yes, it is compatible with ABB’s AC500-eCo modular expansion system.

Q5: Is the PM554-T suitable for harsh industrial environments?

Yes, it is designed to operate in environments with electrical noise and temperature variations.

Q6: What programming tools are supported?

The PM554-T is programmed using ABB’s Automation Builder engineering suite.

Q7: What type of mounting does the PM554-T support?

It is designed for DIN rail mounting, ideal for standard control cabinets.

Q8: What is the recommended power supply for this CPU?

It operates on a nominal 24 VDC logic supply.

Q9: What are the physical dimensions of the PM554-T?

The unit measures 74 × 135 × 82 mm.

Q10: What certifications does the PM554-T hold?

It is CE, UL, and RoHS compliant, meeting global industrial standards.
