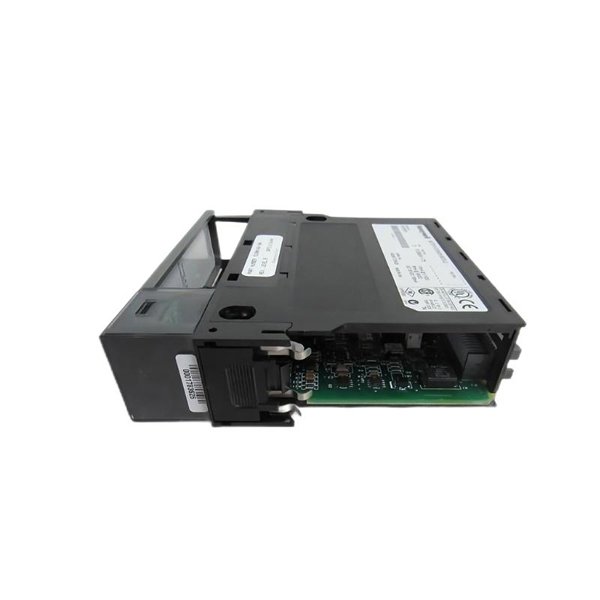

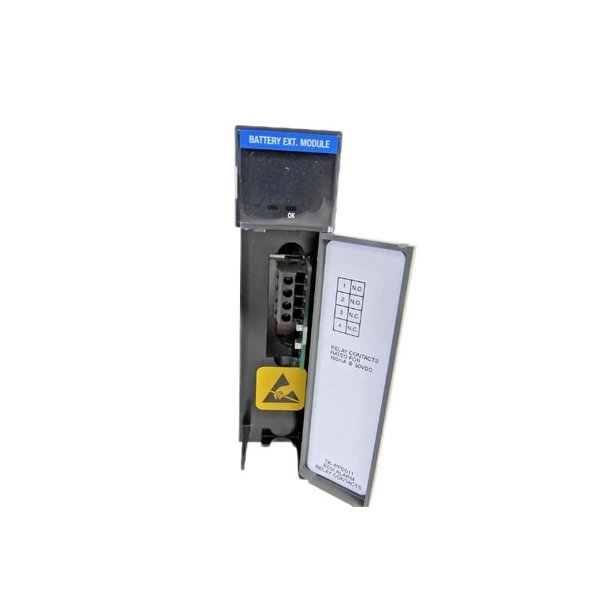

Honeywell TK-PPD011 51309241-175 Battery Extension Module

The Honeywell TK-PPD011 51309241-175 Battery Extension Module is an essential industrial power accessory engineered to enhance the backup capabilities of Honeywell process control systems. This battery extension module is specifically developed to work with existing battery assemblies and uninterruptible power supply (UPS) solutions in Honeywell systems, extending the duration of backup power available during power outages or voltage dips.

The TK-PPD011 (P/N: 51309241-175) is commonly deployed alongside Honeywell’s Experion PKS, Safety Manager, and Fail Safe Controller (FSC) platforms. It ensures system continuity, data integrity, and proper shutdown procedures during critical events by increasing the energy reserve available to controllers and I/O units. With its rugged construction, efficient passive design, and plug-and-play integration capabilities, it provides plant operators with a dependable and maintenance-friendly backup power solution.

Product Specifications

Product Applications

• Process Control Plants

  Used in chemical, oil & gas, and power generation facilities to ensure DCS or PLC systems stay active during short to mid-term power loss.

• Safety System Support

  Provides additional runtime for critical safety systems such as Emergency Shutdown Systems (ESD), Fire & Gas, and Safety Instrumented Systems (SIS).

• Data Integrity for Control Logs

  Prevents loss of system logs, operator commands, and alarm history by keeping control modules online during transient outages.

• Controlled Shutdown Execution

  Enables safe and timed system shutdown procedures when primary power is lost, avoiding abrupt disconnection and damage.

• Remote and Off-Grid Installations

  Ideal for offshore platforms or remote substations where power fluctuation is common and battery autonomy is critical.

• Industrial IT/SCADA Systems

  Ensures the availability of front-end processors and communication modules until full UPS backup or generator comes online.

Product Advantages

• Seamless Runtime Extension

  Works in parallel with Honeywell UPS and battery units to prolong system runtime without the need for configuration.

• Simple Integration

  Directly connects to supported Honeywell systems, reducing deployment time and avoiding system recertification or complex programming.

• High Reliability

  Engineered for 24/7 operation in demanding industrial environments with high immunity to electrical noise and temperature shifts.

• Industrial-Grade Construction

  Durable casing and protected terminals ensure safety during operation and service, reducing the risk of accidental damage.

• Modular Scalability

  Multiple extension modules can be installed in parallel to scale power backup capacity as per plant or site-specific needs.

• Fail-Safe Protections

  Built-in overvoltage, reverse polarity, and short-circuit protection enhance system safety and protect downstream devices.

• Visual Status Monitoring

  LED indicators provide instant status updates on power condition and module health, facilitating proactive maintenance.

• Universal Mounting Options

  Compatible with DIN rail or direct panel mounting, supporting various cabinet designs and space constraints.

• Zero Programming Requirement

  The passive nature of the device eliminates the need for configuration or firmware compatibility checks.

• Reduced Downtime Risk

  By offering extended backup, the module significantly lowers the risk of sudden system outages and production losses.

FAQ

1. What is the main function of the TK-PPD011 51309241-175?

   It extends the backup duration provided by the main battery unit to critical Honeywell control systems.

2. Which control systems are compatible with this module?

   It supports Honeywell Experion PKS, Safety Manager, and FSC platforms.

3. Is the module a standalone battery or does it require integration?

   It is a battery extension and must be used in parallel with a primary battery system.

4. Does the unit require external configuration or software?

   No, it is a plug-and-play hardware device requiring no programming.

5. Can the TK-PPD011 module be used in outdoor enclosures?

   While the module is rugged, outdoor use requires a weatherproof cabinet with environmental protection.

6. What happens if the module is connected in reverse polarity?

   It features internal protection to prevent damage from reverse connections.

7. Is the device hot-swappable?

   No, always disconnect power before installing or removing the module.

8. What is the expected lifespan of the module?

   Typically exceeds 10 years under normal industrial conditions, given its passive nature.

9. How do I check the module’s status?

   Visual LED indicators on the front panel display power and fault status.

10. Is it certified for use in international projects?

    Yes, it meets CE, UL, and CSA standards and is RoHS compliant for global installations.
