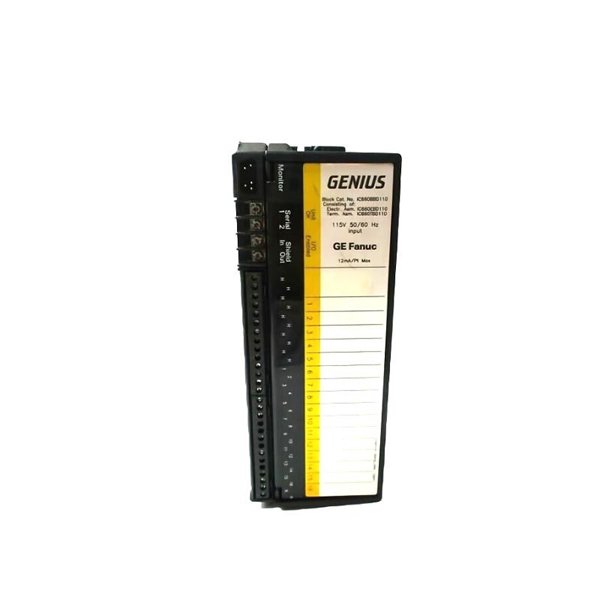

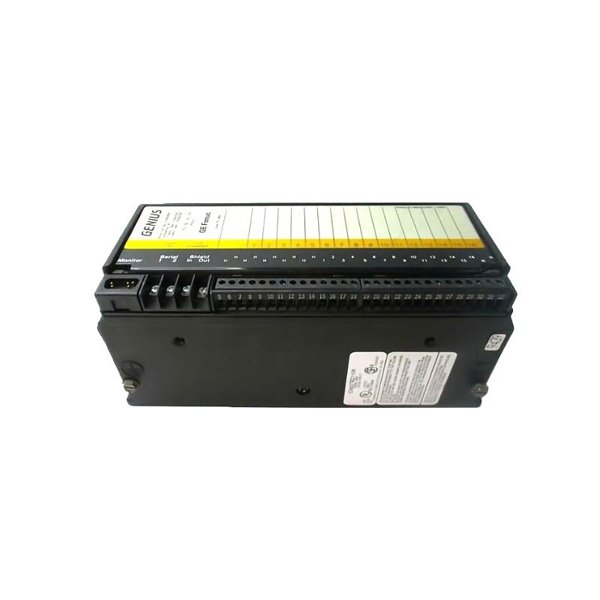

General Electric IC660BBD110 Discrete Input Module

The GE IC660BBD110 is a discrete input module from the Genius I/O series, designed by GE Fanuc to support industrial automation systems. It is engineered to operate in harsh industrial environments, offering robust performance for both discrete signal acquisition and reliable control communication.

Part of the modular and distributed Genius I/O family, this input block interfaces with a variety of field devices, providing 16 discrete input points. Each point can be used to monitor devices such as limit switches, pushbuttons, and other binary status-indicating field instruments.

The IC660BBD110 is widely recognized for its durability, noise immunity, and ease of configuration. It is ideal for distributed control systems (DCS), programmable logic controllers (PLCs), and other real-time industrial automation systems requiring dependable data acquisition.

Product Specifications

Product Applications

The IC660BBD110 module is tailored for applications in:

• Industrial Automation Systems

  Ideal for interfacing field-level sensors and switches with control systems.

• Material Handling Systems

  Used for monitoring conveyor belts, presence sensors, and motor control inputs.

• Manufacturing Plants

  Enables reliable digital signal acquisition from assembly line equipment.

• Power and Utility Stations

  Helps monitor breaker positions, switchgear status, and safety interlocks.

• Water and Wastewater Treatment

  Ensures remote monitoring of pump controls and tank level sensors.

• Automotive and Aerospace Plants

  Supports robotics and machinery requiring reliable discrete I/O interfacing.

Product Advantages

• High Reliability

  Designed to function effectively in demanding environments with minimal downtime.

• Flexible Configuration

  Supports both sinking and sourcing inputs, accommodating a variety of field devices.

• Integrated Diagnostics

  Onboard diagnostics improve troubleshooting and reduce maintenance time.

• Fast Response Time

  Ensures high-speed data acquisition and real-time monitoring.

• Status Indicators

  LED indicators provide instant feedback for each input channel and system status.

• Distributed I/O Efficiency

  Reduces wiring and simplifies system design in large-scale distributed control architectures.

• Durable and Rugged

  Engineered for high vibration and shock resistance in industrial settings.

FAQ

1. What type of inputs does the IC660BBD110 support?

   The module supports 16 discrete inputs, which can be configured for either sinking or sourcing operation.

2. Can the IC660BBD110 be used in outdoor environments?

   While it has environmental protection features, it is recommended to install it inside a protected control panel.

3. What is the voltage range for each input?

   Each input can handle 0 to 32 VDC, with nominal operation around 24 VDC.

4. Is the module compatible with all GE Genius I/O systems?

   Yes, it is fully compatible with all Genius I/O networks and devices.

5. Does the module have built-in fault diagnostics?

   Yes, it provides built-in diagnostics including open circuit, short circuit, and overload detection.

6. How is the module mounted?

   It can be mounted using panel mounts or DIN rails with optional accessories.

7. Can I monitor the status of inputs directly on the module?

   Yes, each input point has an LED indicator showing its current status.

8. Is configuration software required for this module?

   Configuration is done through the system’s controller or handheld monitor; no special software is needed for the module itself.

9. What is the expected lifespan of the IC660BBD110?

   With proper environmental conditions and maintenance, it can exceed 10+ years in operation.

10. Is it hot-swappable?

    No, it is not hot-swappable; power must be turned off during replacement.
