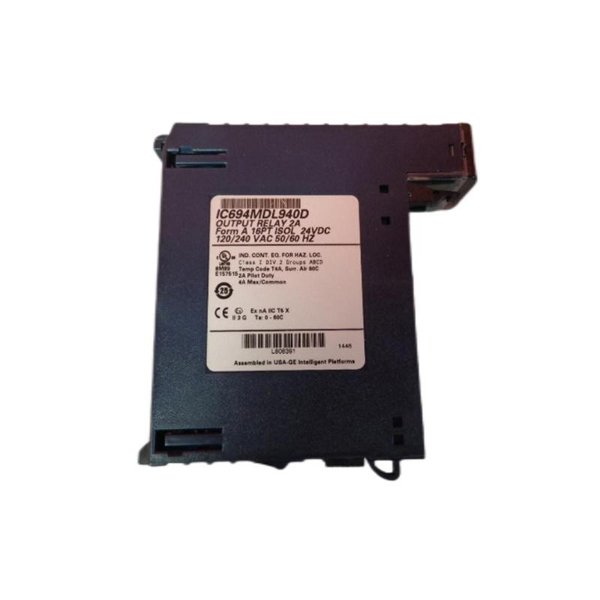

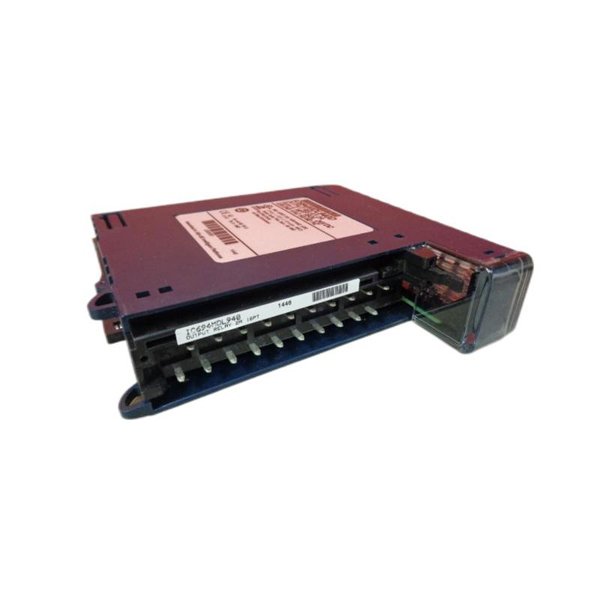

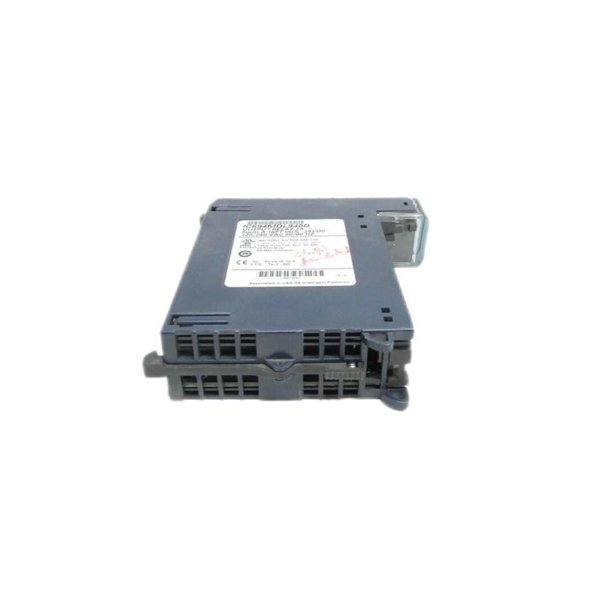

General Electric IC694MDL940D Voltage output Module

The GE IC694MDL940D is an input/output module designed for use in industrial automation systems. It forms part of the GE Fanuc 90-30 PLC series and serves as a critical component for digital signal processing and control. This module interfaces digital inputs with a Programmable Logic Controller (PLC), ensuring efficient operation of the system. The IC694MDL940D is designed to work with high reliability in diverse industrial environments, offering seamless integration with other GE control systems and components.

Product Parameters

The following table provides the key specifications of the GE IC694MDL940D module:

Applications

The GE IC694MDL940D module is designed for various industrial applications, particularly in automation and control systems. It is widely used in:

• Manufacturing Automation: Automating machinery and production lines.

• Building Management Systems: Controlling lighting, HVAC systems, and other building services.

• Energy Management: Monitoring and controlling energy usage.

• Transportation Systems: Managing control signals for transit systems and equipment.

• Process Control: For managing processes in industries like chemical, food processing, and oil and gas.

Product Advantages

1. High Reliability: The GE IC694MDL940D is engineered for long-lasting performance, ensuring minimal downtime and maintenance requirements in industrial environments.

2. Compact Design: Its small size allows for easy integration into existing systems without taking up too much space.

3. Wide Operating Range: The module can function effectively across a broad temperature and humidity range, making it suitable for diverse industrial environments.

4. Easy Integration: Designed to work seamlessly with other GE Fanuc components, this module simplifies the process of building or expanding automation systems.

5. Versatility: Suitable for a range of industrial applications, from simple machine control to complex process automation.

6. Cost-Effective: Provides excellent performance at an affordable price point, offering good value for industrial users.

Frequently Asked Questions (FAQ)

1. What is the operating voltage of the IC694MDL940D?

   • The module operates on a 24V DC supply.

2. How many output channels does this module have?

   • The IC694MDL940D has 8 output channels.

3. What is the maximum current per channel?

   • Each output channel supports a maximum of 0.5A.

4. Is the module compatible with other GE Fanuc products?

   • Yes, it is designed for easy integration with other GE Fanuc components.

5. What is the temperature range for the module’s operation?

   • The module operates within a temperature range of 0°C to 60°C.

6. Can the IC694MDL940D be mounted on a DIN rail?

   • Yes, it can be mounted on a DIN rail or directly onto a panel.

7. What is the power consumption of this module?

   • The module consumes 4 watts of power during operation.

8. Is the IC694MDL940D suitable for high-humidity environments?

   • Yes, it is designed to function in environments with 5% to 95% non-condensing humidity.

9. What is the module’s weight?

   • The weight of the IC694MDL940D is 0.2 kg .

10. What is the protection rating of this module?

    • The module has an IP20 protection rating, suitable for indoor use.
